Rear Differential Case of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

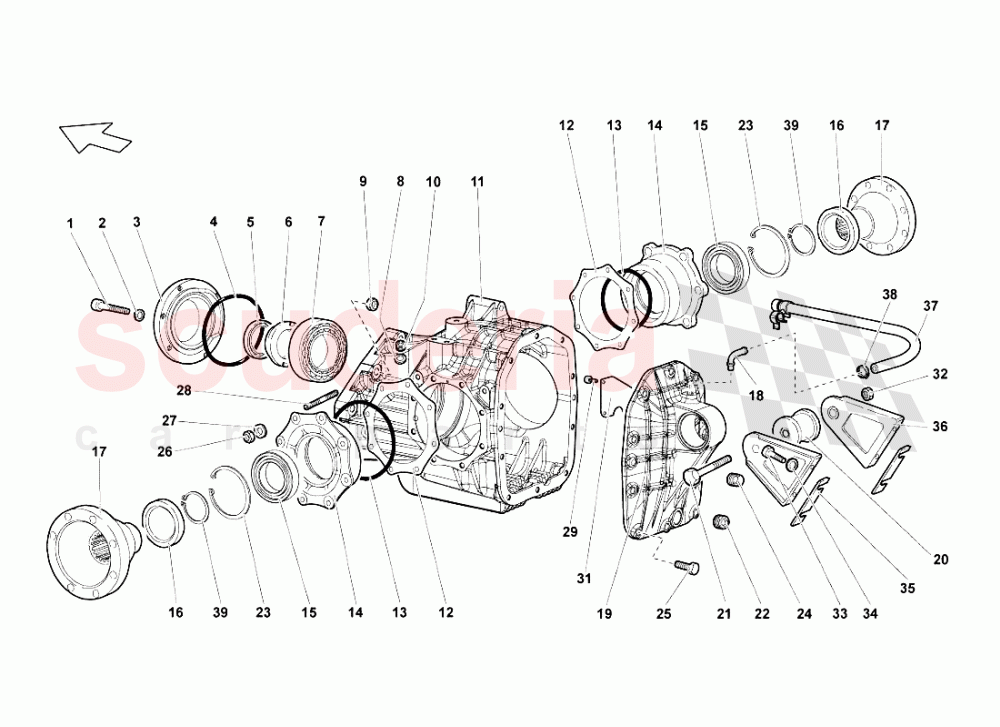

Lamborghini Murcielago LP640 Roadster - Rear Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N91126601	OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	N91126601 OVAL HEXAGON SOCKET HEAD BOLT IN STOCK	$0.77 MSRP: ~~7.30~~ (89.5% off)	6
003	B9525584A	FLANGE	B9525584A FLANGE	$6,102.12	1
004	WHT002222	SEAL RING	WHT002222 SEAL RING	$13.10	1
005	B9525596	SEAL RING	B9525596 SEAL RING	$63.32	1
006	B9517606	RING NUT	B9517606 RING NUT	$108.09	1
007	A5409123A	BEARING	A5409123A BEARING	$209.68	1
008	N0138495	SEAL RING IN STOCK	N0138495 SEAL RING IN STOCK	$3.27 MSRP: ~~7.21~~ (54.6% off)	1
009	N10261311	HEXAGON NUT IN STOCK	N10261311 HEXAGON NUT IN STOCK	$2.23 MSRP: ~~7.26~~ (69.3% off)	1
010	N0160276	PLUG	N0160276 PLUG	$6.72	1
011	B9507103A	REAR DIFFERENTIAL CASE	B9507103A REAR DIFFERENTIAL CASE	$3,333.33	1
012	B9517242H	0.2 mm ADJUSTMENT SHIM	B9517242H 0.2 mm ADJUSTMENT SHIM	$16.95	2
012	B9517242K	0.05 mm ADJUSTMENT SHIM	B9517242K 0.05 mm ADJUSTMENT SHIM	$20.30	2
012	B9517242F	0.5 MM ADJUSTMENT SHIM	B9517242F 0.5 MM ADJUSTMENT SHIM	$61.15	2
012	B9517242J	0.1 mm ADJUSTMENT SHIM	B9517242J 0.1 mm ADJUSTMENT SHIM	$21.44	2
012	B9517242G	0.3 mm ADJUSTMENT SHIM	B9517242G 0.3 mm ADJUSTMENT SHIM	$31.59	2
013	WHT002221	GASKET	WHT002221 GASKET	$36.03	2
014	B9501312A	FLANGE	B9501312A FLANGE	$1,397.86	2
015	B9501660	BEARING	B9501660 BEARING	$114.25	2
016	B9525583	OIL SEAL IN STOCK	B9525583 OIL SEAL IN STOCK	$88.04	2
017	B9501265B	FLANGE	B9501265B FLANGE	$707.00	2
018	2D525118B	ELBOW FITTING	2D525118B ELBOW FITTING	$15.07	1
019	B9507145B	COVER	B9507145B COVER	$2,741.93	1
020	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	1
021	WHT003561	SCREW M14X80	WHT003561 SCREW M14X80	$10.22	1
022	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$26.89	1
023	N0122981	RETAINING RING 75X2,5	N0122981 RETAINING RING 75X2,5	$6.72	2
024	86301114A	PLUG	86301114A PLUG	$21.57	1
025	N0903168	SCREW M8X30	N0903168 SCREW M8X30	$1.55 MSRP: ~~7.19~~ (78.4% off)	10
026	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT IN STOCK	$1.89	16
027	410422395	WASHER	410422395 WASHER	$10.76	16
028	N04440510	STUD BOLT M8X22	N04440510 STUD BOLT M8X22	$2.08 MSRP: ~~7.04~~ (70.5% off)	16
029	N90305304	SCREW M6X10	N90305304 SCREW M6X10	$1.89 MSRP: ~~7.33~~ (74.2% off)	3
031	B9501716A	SHEET	B9501716A SHEET	$56.52	1
032	WHT003614	NUT	WHT003614 NUT	$7.06	1
033	N01033520	SCREW M8X35 IN STOCK	N01033520 SCREW M8X35 IN STOCK	$1.55 MSRP: ~~7.19~~ (78.4% off)	4
034	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	4
035	410813761A	PLATE	410813761A PLATE	$43.68	14
036	410813297	SUPPORT	410813297 SUPPORT	$261.43	2
037	B9525049	VENT HOSE	B9525049 VENT HOSE	$57.48	1
038	N90686701	SPRING BAND CLAMP IN STOCK	N90686701 SPRING BAND CLAMP IN STOCK	$1.89 MSRP: ~~7.11~~ (73.4% off)	1
039	N0123722	RETAINING RING 45X1,75	N0123722 RETAINING RING 45X1,75	$4.52	2
