Gearbox Control Tower of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - Gearbox Control Tower

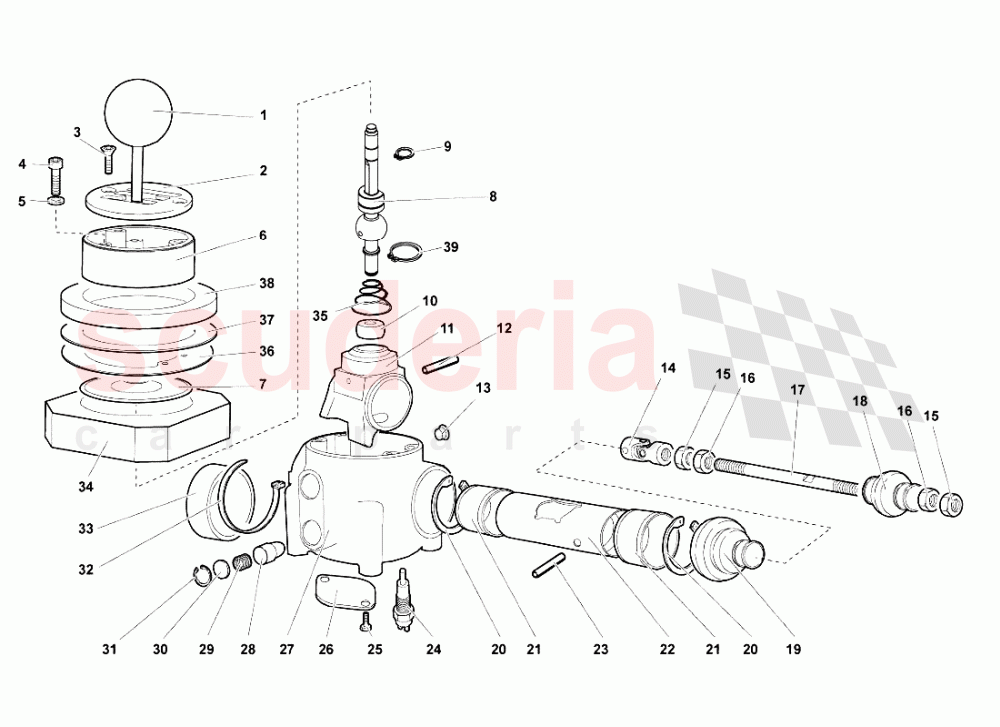

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	410711141	HANDLE (FROM VIN 01202 USA MY04)	410711141 HANDLE (FROM VIN 01202 USA MY04)	$3,024.19	1
002	410713109	SELECTOR PLATE	410713109 SELECTOR PLATE	$3,662.61	1
003	WHT003564	SCREW	WHT003564 SCREW	$13.64	2
004	N10544302	SOCKET HEAD BOLT	N10544302 SOCKET HEAD BOLT	$0.98 MSRP: ~~7.27~~ (86.5% off)	4
005	N90247901	WASHER	N90247901 WASHER	$56.80	4
006	410711795A	SPACER	410711795A SPACER	$1,780.93	1
007	410711527A	BOOT	410711527A BOOT	$237.88	1
008	410711123	LEVER	410711123 LEVER	$6,706.98	1
009	N0124101	SEAL RING 10X1	N0124101 SEAL RING 10X1	$0.16 MSRP: ~~7.37~~ (97.8% off)	1
010	410711189	BALL	410711189 BALL	$772.85	1
011	410711111	SHIFT LEVER SEAT	410711111 SHIFT LEVER SEAT	$725.81	1
012	WHT003590	PIN	WHT003590 PIN	$12.78	1
013	410711514	FAIRLEAD.DKF6-9-12-3	410711514 FAIRLEAD.DKF6-9-12-3	$1.47 MSRP: ~~7.23~~ (79.7% off)	1
014	410711613	LH JOINT	410711613 LH JOINT	$817.22	1
015	WHT003615A	RH NUT	WHT003615A RH NUT	$1.16 MSRP: ~~7.21~~ (83.9% off)	1
017	410711433A	TIE ROD	410711433A TIE ROD	$1,485.23	1
018	410711423	BOOT	410711423 BOOT	$70.31	1
019	410711411	BOOT	410711411 BOOT	$205.66	1
020	WHT003579	RETAINING RING	WHT003579 RETAINING RING	$5.24	1
021	410711067	BUSHING	410711067 BUSHING	$278.23	1
022	410711158	SHAFT	410711158 SHAFT	$3,481.19	1
023	N10738501	PIN	N10738501 PIN	$0.33 MSRP: ~~7.35~~ (95.5% off)	1
024	86941521A	SWITCH	86941521A SWITCH	$78.77	1
025	N0102018	SCREW M4X8	N0102018 SCREW M4X8	$4.10 MSRP: ~~7.20~~ (43.1% off)	1
026	410711599	PLATE	410711599 PLATE	$44.78	1
027	410711061	SHIFT LEVER SUPPORT	410711061 SHIFT LEVER SUPPORT	$787.65	1
028	410711039	PAWL	410711039 PAWL	$74.20	2
029	410711490	SPRING	410711490 SPRING	$109.28	2
030	410711217A	DISK	410711217A DISK	$28.42	2
031	WHT003576	SEAL RING	WHT003576 SEAL RING	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
032	N10267501	CLAMP	N10267501 CLAMP	$3.16 MSRP: ~~6.00~~ (47.3% off)	2
033	410711213	BOOT	410711213 BOOT	$63.77	1
035	410711369	SPRING	410711369 SPRING	$324.59	1
036	410711238	SPACER	410711238 SPACER	$33.06	1
037	410711353	INSULATION	410711353 INSULATION	$3.30	1
038	410711296	INSULATION	410711296 INSULATION	$332.00	1
039	WHT002646	RETAINING RING	WHT002646 RETAINING RING	$1.08 MSRP: ~~7.22~~ (85% off)	1
