Lamborghini Murcielago LP640 Roadster - Manual Pedal Cluster

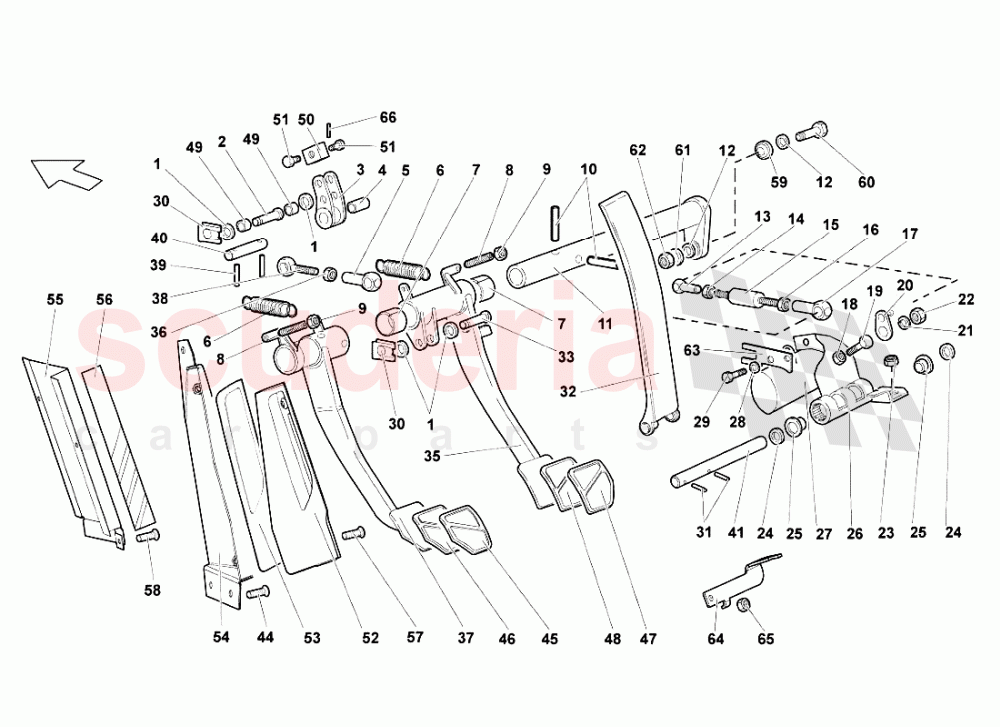

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01152722	WASHER 10,5X21X2	N01152722 WASHER 10,5X21X2	-	4	Enquire
002	410721966	JOURNAL	410721966 JOURNAL	-	1	Enquire
003	410721385	LEVER	410721385 LEVER	-	1	Enquire
004	410721164A	BUSHING	410721164A BUSHING	-	1	Enquire
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	-	1	Enquire
006	410721363	SPRING	410721363 SPRING	-	2	Enquire
007	410721443	BUSHING	410721443 BUSHING	-	2	Enquire
008	410721671	ADJUSTING SLEEVE	410721671 ADJUSTING SLEEVE	-	2	Enquire
009	N01100637	NUT M6	N01100637 NUT M6	-	2	Enquire
010	WHT003109	PIN	WHT003109 PIN	-	2	Enquire
011	413721325	JOURNAL	413721325 JOURNAL	-	1	Enquire
012	WHT002631	WASHER 8X12X1	WHT002631 WASHER 8X12X1	-	2	Enquire
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	-	1	Enquire
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	-	1	Enquire
015	400721743A	SHAFT	400721743A SHAFT	-	1	Enquire
016	N10689901	NUT M5	N10689901 NUT M5	-	1	Enquire
017	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	-	1	Enquire
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
019	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	1	Enquire
020	400721728C	LEVER	400721728C LEVER	-	1	Enquire
022	N02300212	NUT M6	N02300212 NUT M6	-	1	Enquire
023	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	2	Enquire
024	WHT000697	WASHER	WHT000697 WASHER	-	2	Enquire
025	410721543	BUSHING	410721543 BUSHING	-	2	Enquire
026	400721651A	SUPPORT	400721651A SUPPORT	-	1	Enquire
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	-	1	Enquire
028	N0115578	WASHER 6X12X1	N0115578 WASHER 6X12X1	-	2	Enquire
029	N10546402	SCREW M6X16	N10546402 SCREW M6X16	-	2	Enquire
030	N0126483	CLIP	N0126483 CLIP	-	2	Enquire
031	N10206801	PIN	N10206801 PIN	-	2	Enquire
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	-	1	Enquire
033	410721147	JOURNAL	410721147 JOURNAL	-	1	Enquire
035	413721145B	BRAKE PEDAL	413721145B BRAKE PEDAL	-	1	Enquire
036	N10155210	NUT	N10155210 NUT	-	1	Enquire
037	413721321B	CLUTCH PEDAL	413721321B CLUTCH PEDAL	-	1	Enquire
038	410721645	TIE ROD	410721645 TIE ROD	-	1	Enquire
039	N0133481	SPRING PIN	N0133481 SPRING PIN	-	1	Enquire
040	410721965	JOURNAL	410721965 JOURNAL	-	1	Enquire
041	400721157	JOURNAL	400721157 JOURNAL	-	1	Enquire
044	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
045	400721779	COVER	400721779 COVER	-	1	Enquire
046	400721173	COVER	400721173 COVER	-	1	Enquire
048	400721174C	COVER	400721174C COVER	-	1	Enquire
049	410721134A	BUSHING	410721134A BUSHING	-	1	Enquire
050	410721255	BLOCK	410721255 BLOCK	-	1	Enquire
051	410721379	SCREW	410721379 SCREW	-	1	Enquire
052	413864419	FOOTREST DRIVER SIDE	413864419 FOOTREST DRIVER SIDE	-	1	Enquire
053	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	-	1	Enquire
054	413864775B	BRACKET	413864775B BRACKET	-	1	Enquire
057	WHT003068	COUNTERSUNK BOLT	WHT003068 COUNTERSUNK BOLT	-	2	Enquire
059	410721427	BALL JOINT	410721427 BALL JOINT	-	1	Enquire
060	WHT003270	JOURNAL	WHT003270 JOURNAL	-	1	Enquire
061	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	1	Enquire
062	N0111849	NUT	N0111849 NUT	-	1	Enquire
063	410971806	SUPPORT	410971806 SUPPORT	-	1	Enquire
066	N0133311	PIN 2.0X12.0	N0133311 PIN 2.0X12.0	-	2	Enquire
