E-gear Control Pedal of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

Lamborghini Murcielago LP640 Roadster - E-gear Control Pedal

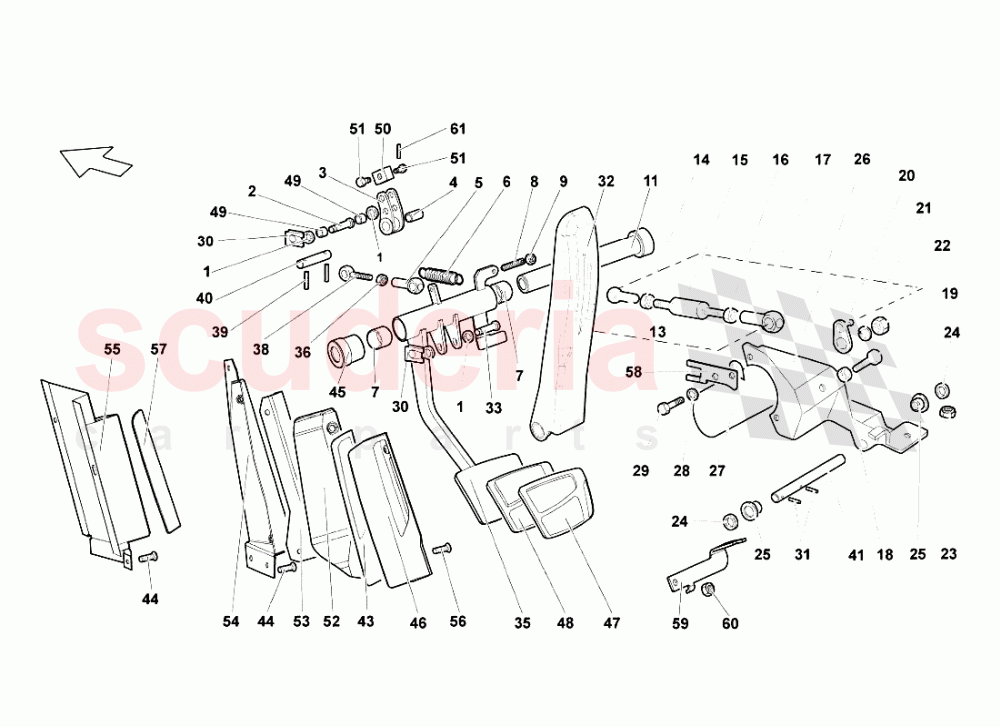

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N01152722	WASHER 10,5X21X2	N01152722 WASHER 10,5X21X2	-	4	Enquire
002	410721966	JOURNAL	410721966 JOURNAL	-	1	Enquire
003	410721385	LEVER	410721385 LEVER	-	1	Enquire
004	410721164A	BUSHING	410721164A BUSHING	-	1	Enquire
005	410721993	BALL JOINT COUPLING	410721993 BALL JOINT COUPLING	-	1	Enquire
006	410721363	SPRING	410721363 SPRING	-	1	Enquire
007	410721443	BUSHING	410721443 BUSHING	-	1	Enquire
008	410721671	ADJUSTING SLEEVE	410721671 ADJUSTING SLEEVE	-	1	Enquire
009	N01100637	NUT M6	N01100637 NUT M6	-	1	Enquire
011	413721325A	JOURNAL	413721325A JOURNAL	-	1	Enquire
013	400721214E	BALL JOINT HEAD (LEFT HAND THREAD)	400721214E BALL JOINT HEAD (LEFT HAND THREAD)	-	1	Enquire
014	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD)	-	1	Enquire
015	400721743A	SHAFT	400721743A SHAFT	-	1	Enquire
016	N10689901	NUT M5	N10689901 NUT M5	-	1	Enquire
017	400721214D	BALL JOINT HEAD	400721214D BALL JOINT HEAD	-	1	Enquire
018	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	1	Enquire
019	N01033520	SCREW M8X35	N01033520 SCREW M8X35	-	1	Enquire
020	400721728C	LEVER	400721728C LEVER	-	1	Enquire
022	N02300212	NUT M6	N02300212 NUT M6	-	1	Enquire
023	N10609202	HEXAGON COLLAR NUT	N10609202 HEXAGON COLLAR NUT	-	2	Enquire
024	WHT000697	WASHER	WHT000697 WASHER	-	2	Enquire
025	410721543	BUSHING	410721543 BUSHING	-	2	Enquire
026	400721651A	SUPPORT	400721651A SUPPORT	-	1	Enquire
027	400907475A	POTENTIOMETER	400907475A POTENTIOMETER	-	1	Enquire
028	N0115578	WASHER 6X12X1	N0115578 WASHER 6X12X1	-	2	Enquire
029	N10546402	SCREW M6X16	N10546402 SCREW M6X16	-	2	Enquire
030	N0126483	CLIP	N0126483 CLIP	-	2	Enquire
031	N10206801	PIN	N10206801 PIN	-	2	Enquire
032	400721507A	ACCELERATOR PEDAL	400721507A ACCELERATOR PEDAL	-	1	Enquire
033	410721147	JOURNAL	410721147 JOURNAL	-	1	Enquire
035	413721145C	BRAKE PEDAL	413721145C BRAKE PEDAL	-	1	Enquire
036	N10155210	NUT	N10155210 NUT	-	1	Enquire
038	410721645	TIE ROD	410721645 TIE ROD	-	1	Enquire
039	N0133481	SPRING PIN	N0133481 SPRING PIN	-	1	Enquire
040	410721965	JOURNAL	410721965 JOURNAL	-	1	Enquire
041	400721157	JOURNAL	400721157 JOURNAL	-	1	Enquire
043	401864431	RUBBER FOOT MAT	401864431 RUBBER FOOT MAT	-	1	Enquire
044	N90780901	OVAL HEXAGON SOCKET HEAD BOLT	N90780901 OVAL HEXAGON SOCKET HEAD BOLT	-	1	Enquire
045	410723167	SPACER	410723167 SPACER	-	1	Enquire
046	401864419B	FOOTREST DRIVER SIDE	401864419B FOOTREST DRIVER SIDE	-	1	Enquire
047	400721780A	COVER	400721780A COVER	-	1	Enquire
048	400721174D	CAP FOR FOOT BRAKE PEDAL	400721174D CAP FOR FOOT BRAKE PEDAL	-	1	Enquire
049	410721134A	BUSHING	410721134A BUSHING	-	1	Enquire
050	410721255	BLOCK	410721255 BLOCK	-	1	Enquire
051	410721379	SCREW	410721379 SCREW	-	1	Enquire
052	401864431B	COVER	401864431B COVER	-	1	Enquire
053	401864523A	SUPPORT	401864523A SUPPORT	-	1	Enquire
054	413864775B	BRACKET	413864775B BRACKET	-	1	Enquire
056	N10713901	SCREW M6X50	N10713901 SCREW M6X50	-	2	Enquire
058	410971806	SUPPORT	410971806 SUPPORT	-	1	Enquire
061	N0133311	PIN 2.0X12.0	N0133311 PIN 2.0X12.0	-	2	Enquire
