Front Differential Case of Lamborghini Lamborghini Murcielago LP640 Roadster

View All

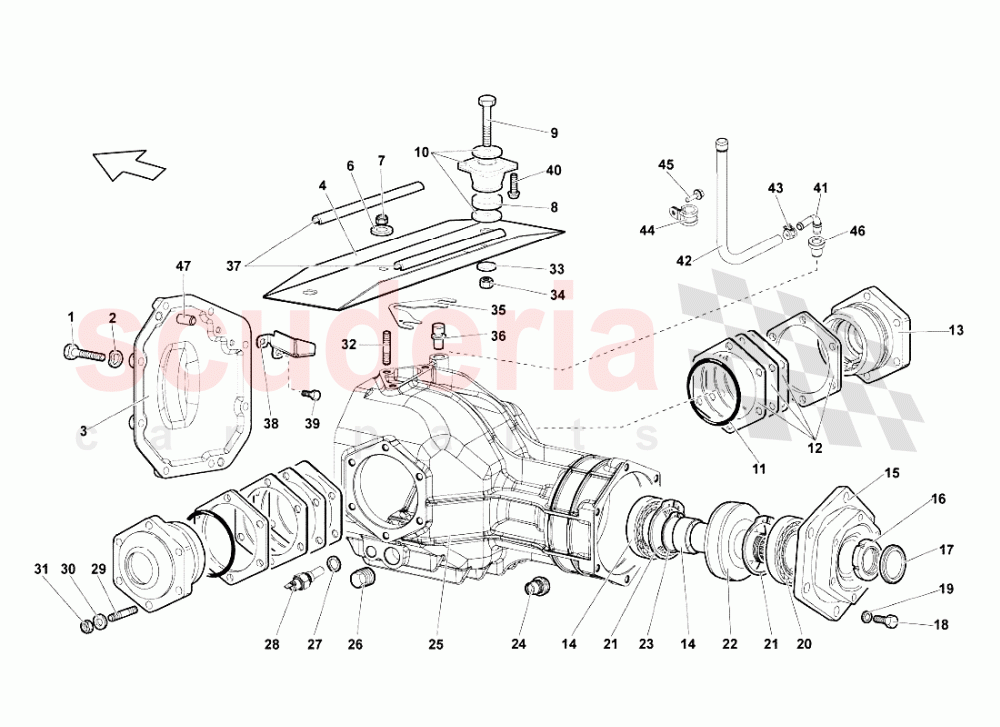

Lamborghini Murcielago LP640 Roadster - Front Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10545402	SCREW M8X25.00-S1-N	N10545402 SCREW M8X25.00-S1-N	$4.06 MSRP: ~~7.17~~ (43.4% off)	8
002	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	8
003	1S409410B	COVER	1S409410B COVER	$1,237.92	1
004	410805153	SUPPORT	410805153 SUPPORT	$53.12	1
006	WHT001942	WASHER	WHT001942 WASHER	$3.30	3
007	N0111849	NUT	N0111849 NUT	$2.15 MSRP: ~~7.25~~ (70.3% off)	3
008	410801499	SPACER	410801499 SPACER	$71.11	2
009	WHT002639	SCREW M12X1.25X70X30	WHT002639 SCREW M12X1.25X70X30	$6.86	2
010	410805991	SUPPORT	410805991 SUPPORT	$184.81	2
011	WHT002158	SEAL RING	WHT002158 SEAL RING	$20.84	2
012	1S409448B	2.0 MM ADJUSTMENT SHIM	1S409448B 2.0 MM ADJUSTMENT SHIM	$100.41	2
012	1S409448C	0.075 MM ADJUSTMENT SHIM	1S409448C 0.075 MM ADJUSTMENT SHIM	$34.96	3
012	1S409448D	0.050 MM ADJUSTMENT SHIM	1S409448D 0.050 MM ADJUSTMENT SHIM	$22.92	3
012	1S409448G	1 MM ADJUSTMENT	1S409448G 1 MM ADJUSTMENT	$48.11	1
012	1S409448H	2 MM ADJUSTMENT	1S409448H 2 MM ADJUSTMENT	$56.12	2
013	1S409828A	FLANGE	1S409828A FLANGE	$873.67	2
014	1S409770	BEARING	1S409770 BEARING	$336.04	1
015	1S409129A	FLANGE	1S409129A FLANGE	$1,182.80	1
016	1S409761	RING NUT	1S409761 RING NUT	$231.85	1
017	1S409887	SEAL RING	1S409887 SEAL RING	$71.11	1
018	N10545402	SCREW M8X25.00-S1-N	N10545402 SCREW M8X25.00-S1-N	$4.06 MSRP: ~~7.17~~ (43.4% off)	6
019	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	6
020	1S409561	BEARING	1S409561 BEARING	$64.91	1
021	N0123501	RETAINING RING	N0123501 RETAINING RING	$7.27	2
022	1S409435B	VISCOUS COUPLING	1S409435B VISCOUS COUPLING	$5,994.63	1
023	1S409297	SEAL RING	1S409297 SEAL RING	$18.84	1
024	1S409965	MAGNETIC PLUG	1S409965 MAGNETIC PLUG	$174.74	1
025	1S409149A	FRONT DIFFERENTIAL CASE	1S409149A FRONT DIFFERENTIAL CASE	$11,955.59	1
026	86301141	MAGNETIC PLUG	86301141 MAGNETIC PLUG	$26.89	1
027	N0138492	WASHER	N0138492 WASHER	$3.16 MSRP: ~~7.21~~ (56.2% off)	1
028	1S919529	SENSOR	1S919529 SENSOR	$282.28	1
029	WHT003164	STUD BOLT M8X35	WHT003164 STUD BOLT M8X35	$21.86	12
030	WHT001514	WASHER	WHT001514 WASHER	$24.95 MSRP: ~~64.00~~ (61% off)	12
031	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	$1.89	12
032	WHT003164	STUD BOLT M8X35	WHT003164 STUD BOLT M8X35	$21.86	3
033	410407295B	2.0 MM ADJUSTMENT SHIM	410407295B 2.0 MM ADJUSTMENT SHIM	$6.66	2
034	WHT003355	NUT M12X1,25	WHT003355 NUT M12X1,25	$21.86	2
035	1S409267F	1.0 MM SHIM	1S409267F 1.0 MM SHIM	$42.15	4
037	400133338	GASKET	400133338 GASKET	$67.60	2
038	1S409194	BULKHEAD	1S409194 BULKHEAD	$255.40	1
039	N90305304	SCREW M6X10	N90305304 SCREW M6X10	$1.89 MSRP: ~~7.33~~ (74.2% off)	2
040	N90929202	SCREW M10X20.0	N90929202 SCREW M10X20.0	$3.64	8
041	2D525118B	ELBOW FITTING	2D525118B ELBOW FITTING	$15.07	1
042	1S409847	OIL BREATHER PIPE	1S409847 OIL BREATHER PIPE	$109.14	1
043	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	$1.89 MSRP: ~~7.11~~ (73.4% off)	1
044	N0206027	CLAMP	N0206027 CLAMP	$3.77	1
045	N10338903	SCREW M6X16	N10338903 SCREW M6X16	$52.74	1
046	1S409190	BUSHING	1S409190 BUSHING	$24.05	1
047	WHT003078	DOWEL	WHT003078 DOWEL	$43.68	2
