BUMPERS of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - BUMPERS

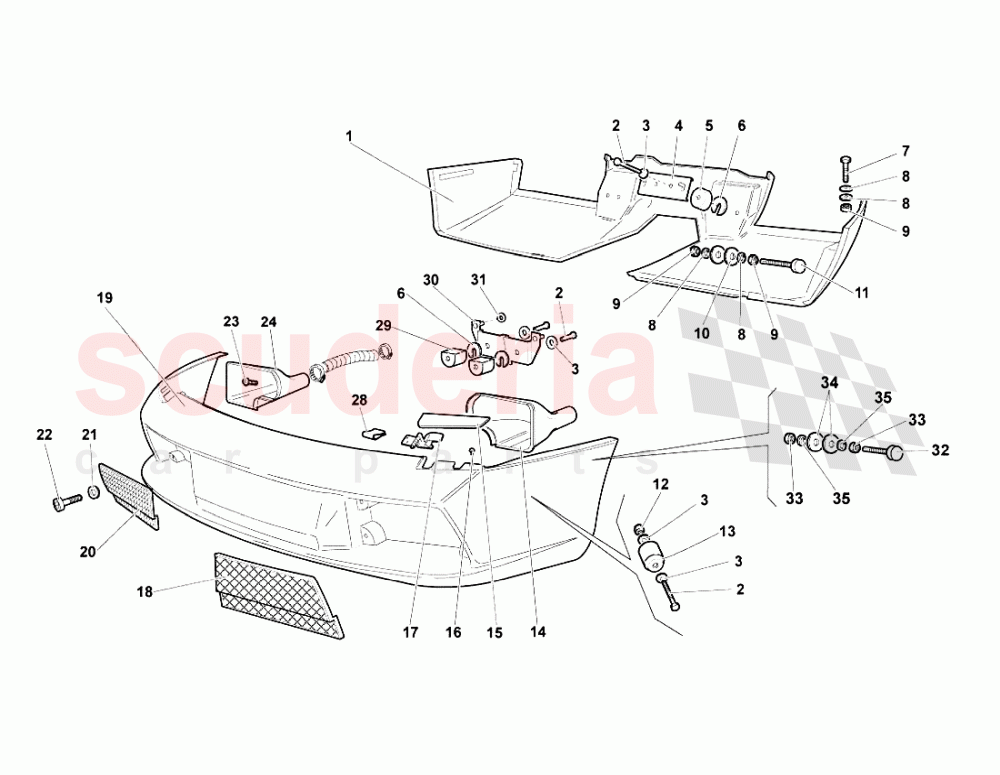

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	410807301	REAR BUMPER ASSEMBLY	410807301 REAR BUMPER ASSEMBLY	-	1	Enquire
002	8100861	SCREW M8X90	8100861 SCREW M8X90	-	2	Enquire
003	N90179103	WASHER 18X8,4X2,5	N90179103 WASHER 18X8,4X2,5	-	4	Enquire
004	410807331	REAR BUMPER FIXING BRACKET ASSEMBLY	410807331 REAR BUMPER FIXING BRACKET ASSEMBLY	-	2	Enquire
005	410807869	REAR BUMPER CENTRAL RUBBER	410807869 REAR BUMPER CENTRAL RUBBER	-	4	Enquire
006	410807567	5.0 MM SHIM	410807567 5.0 MM SHIM	-	4	Enquire
006	410807255	5.0 MM SHIM	410807255 5.0 MM SHIM	-	4	Enquire
007	N10430103	HEXAGON SOCKET FLAT HEAD BOLT	N10430103 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
008	N0152785	WASHER	N0152785 WASHER	-	4	Enquire
009	N01100845	HEXAGON NUT	N01100845 HEXAGON NUT	-	6	Enquire
010	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
011	410807699	JOURNAL	410807699 JOURNAL	-	2	Enquire
012	8200804	NUT M8	8200804 NUT M8	-	4	Enquire
013	410807263A	FRONT BUMPER SIDE RUBBER	410807263A FRONT BUMPER SIDE RUBBER	-	2	Enquire
014	410807605	LEFT FRONT BRAKE AIR BUMPER CONVEYOR	410807605 LEFT FRONT BRAKE AIR BUMPER CONVEYOR	-	1	Enquire
015	410955275C	LEFT HEADLIGHT WASHER COVER LID	410955275C LEFT HEADLIGHT WASHER COVER LID	-	1	Enquire
015	410955276C	RIGHT HEADLIGHT WASHER COVER LID	410955276C RIGHT HEADLIGHT WASHER COVER LID	-	1	Enquire
016	410807895	PLUG	410807895 PLUG	-	1	Enquire
017	410955259	LEFT HEADLIGHT WASHER LID HINGE ASSEMBLY	410955259 LEFT HEADLIGHT WASHER LID HINGE ASSEMBLY	-	1	Enquire
017	410955260	RIGHT HEADLIGHT WASHER LID HINGE ASSEMBLY	410955260 RIGHT HEADLIGHT WASHER LID HINGE ASSEMBLY	-	1	Enquire
018	410807681	LEFT GRID	410807681 LEFT GRID	-	1	Enquire
019	410807103	FRONT BUMPER ASSEMBLY	410807103 FRONT BUMPER ASSEMBLY	-	1	Enquire
020	410807682	RIGHT GRID	410807682 RIGHT GRID	-	1	Enquire
021	N10663401	WASHER	N10663401 WASHER	-	8	Enquire
022	8700430	SCREW M4X16	8700430 SCREW M4X16	-	8	Enquire
023	WHT000766	SCREW 2,9X9,5	WHT000766 SCREW 2,9X9,5	-	6	Enquire
024	410807606	RIGHT FRONT BRAKE AIR BUMPER CONVEYOR	410807606 RIGHT FRONT BRAKE AIR BUMPER CONVEYOR	-	1	Enquire
028	410807794	SPRING	410807794 SPRING	-	10	Enquire
029	410807263	RUBBER BUFFER	410807263 RUBBER BUFFER	-	4	Enquire
030	410807133A	FRONT BUMPER FIXING BRACKET ASSEMBLY	410807133A FRONT BUMPER FIXING BRACKET ASSEMBLY	-	2	Enquire
031	410807047	WASHER	410807047 WASHER	-	6	Enquire
032	410807699	JOURNAL	410807699 JOURNAL	-	2	Enquire
033	N01100840	NUT M8	N01100840 NUT M8	-	4	Enquire
034	WHT001942	WASHER	WHT001942 WASHER	-	4	Enquire
035	N0152785	WASHER	N0152785 WASHER	-	4	Enquire
