ENGINE COMPARTMENT PANELS

Find Your Part

Lamborghini Murcielago - ENGINE COMPARTMENT PANELS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

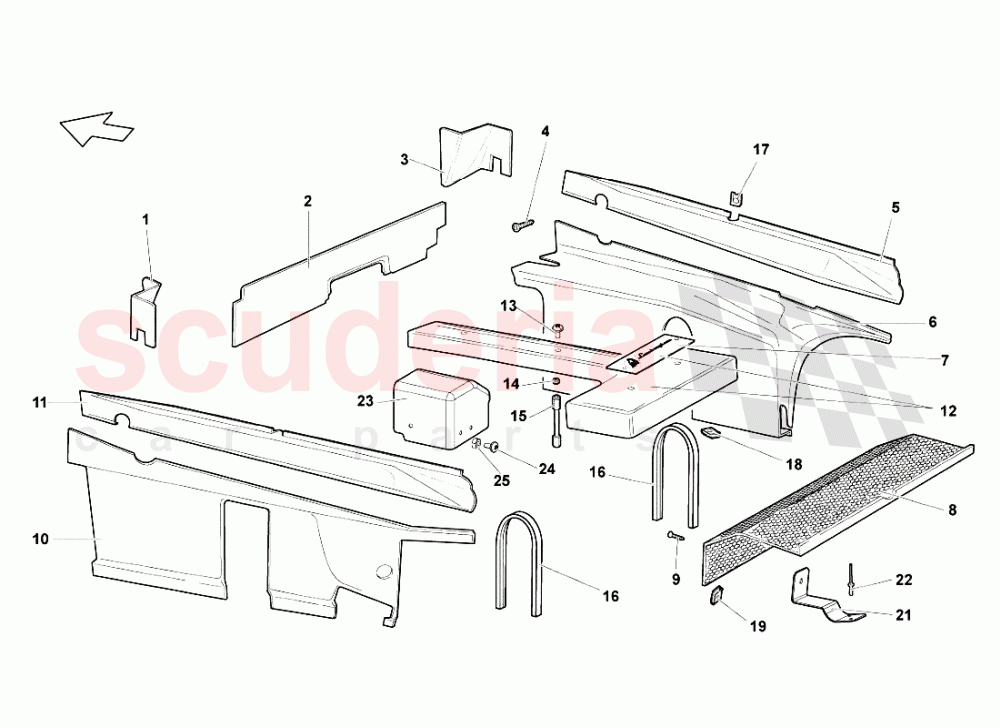

ENGINE COMPARTMENT PANELS of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 418103781
ENGINE SIDE REAR WINDOW LEFT SIDE PAINTED PANEL (FROM VIN 12583 USA) 		$678.76 1
002 418103747
PAINTED PANEL UNDER ENGINE SIDE REAR WINDOW 		$1,922.06 1
003 418103555
ENGINE SIDE REAR WINDOW RIGHT SIDE PAINTED PANEL 		$678.76 1
004 N01396626
SCREW 		$3.45 18
005 418103730
ENGINE COMPARTMENT UPPER RIGHT SIDE PAINTED PANEL 		$1,888.46 1
006 418103729
ENGINE COMPARTMENT LOWER RIGHT SIDE PAINTED PANEL 		$2,997.30 1
007 7M103115
FUEL PIPING COVER PLATE 		$362.89 1
008 418864878
AUXILIARY COMPONENTS COVERING GRID 		$766.14 1
009 N01396626
SCREW 		$3.45 1
010 418103754
ENGINE COMPARTMENT LOWER LEFT SIDE PAINTED PANEL 		$2,997.30 1
011 418103753
ENGIEN COMPARTMENT UPPER LEFT SIDE PAINTED PANEL 		$1,888.46 1
012 7M103926B
FUEL PIPING COVER SET 		$2,668.02 1
013 N90842903
SCREW 		$1.47 (79.8% off) 4
014 8400703
WASHER 		$1.05 (85.7% off) 2
015 7M103728
STUD 		$65.60 2
016 410103121
GASKET 		$89.92 2
017 8220402
CLIP 		$4.41 (38.1% off) 8
018 8220603
CLIP 		$4.29 (3.6% off) 1
019 WHT003383
CLIP 		$15.47 4
021 410813988
BRACKET 		$8.87 4
022 410809864
RIVET 		$0.42 (94.3% off) 8
023 7M103939
COVER 		$1,037.66 1
024 N90842903
SCREW 		$1.47 (79.8% off) 2
025 N02214812
HEXAGON NUT, SELF-LOCKING 		$1.96 (73.1% off) 2
