AIR INTAKE of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - AIR INTAKE

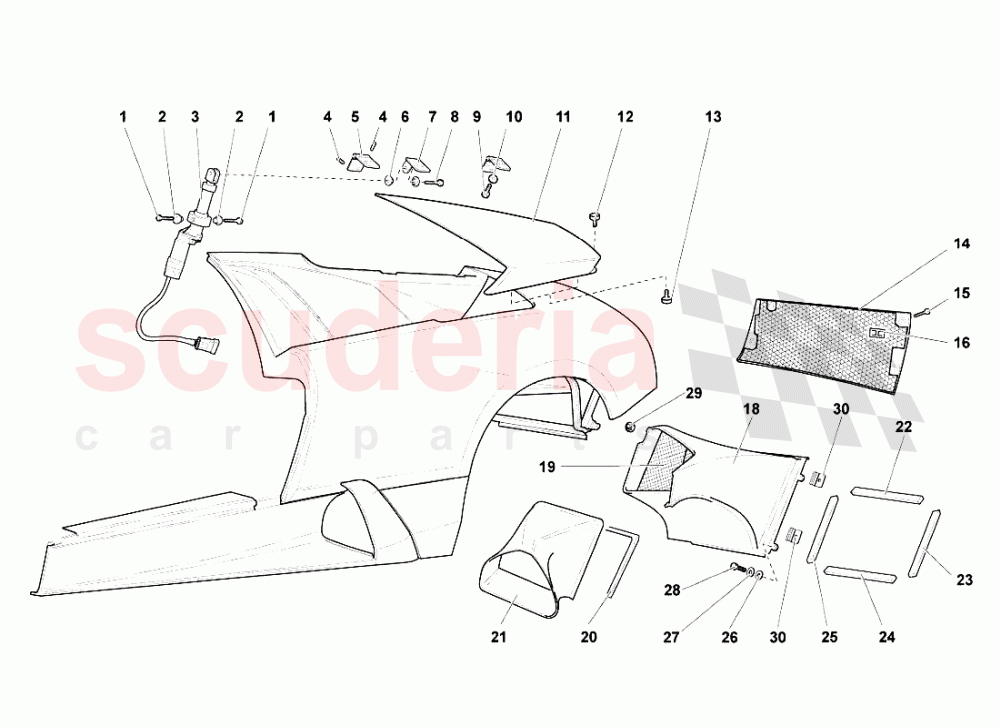

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT003293	SCREW	WHT003293 SCREW	-	2	Enquire
002	410810967	BUSHING	410810967 BUSHING	-	2	Enquire
003	410901119A	POWER STEERING MOTOR	410901119A POWER STEERING MOTOR	-	1	Enquire
004	WHT003589	PIN	WHT003589 PIN	-	8	Enquire
005	410814525	MOVABLE AIR INTAKE HINGE ASSEMBLY	410814525 MOVABLE AIR INTAKE HINGE ASSEMBLY	-	4	Enquire
006	410827547	BUSHING	410827547 BUSHING	-	2	Enquire

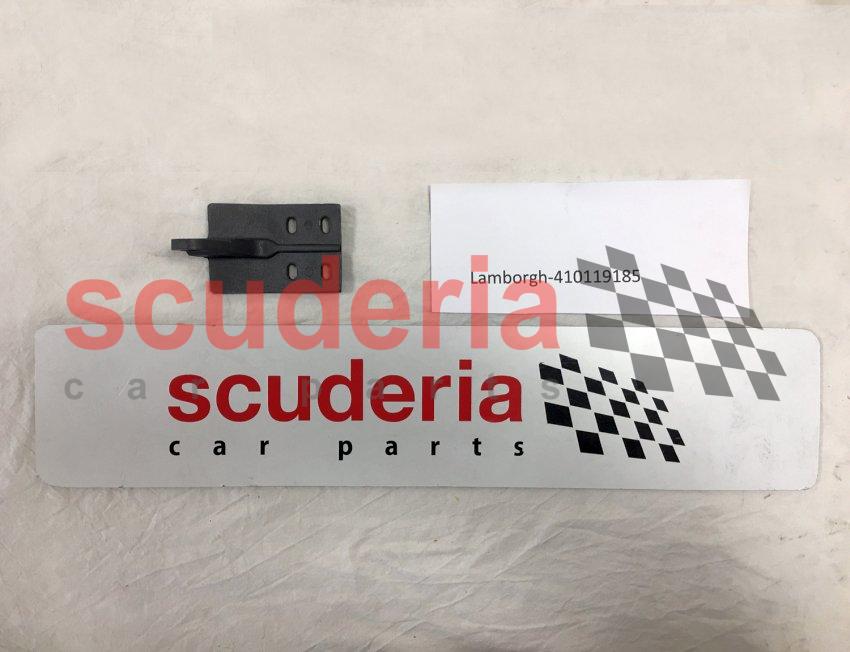

007	410119185	BRACKET	410119185 BRACKET	-	1	Enquire
008	410827855	JOURNAL	410827855 JOURNAL	-	1	Enquire
009	N01020717	SCREW M5X12	N01020717 SCREW M5X12	-	8	Enquire
010	N10612001	WASHER	N10612001 WASHER	-	8	Enquire
011	418119362	RIGHT MOVABLE AIR INTAKE ASSEMBLY	418119362 RIGHT MOVABLE AIR INTAKE ASSEMBLY	-	1	Enquire
011	418119361	LEFT MOVABLE AIR INTAKE ASSEMBLY	418119361 LEFT MOVABLE AIR INTAKE ASSEMBLY	-	1	Enquire
012	410807895	PLUG	410807895 PLUG	-	3	Enquire
013	410853809	MOUNTING BUFFER	410853809 MOUNTING BUFFER	-	2	Enquire
014	410807684	RIGHT REAR GRID ON BUMPERS	410807684 RIGHT REAR GRID ON BUMPERS	-	1	Enquire
014	410807683	LEFT REAR GRID ON BUMPERS	410807683 LEFT REAR GRID ON BUMPERS	-	1	Enquire
015	WHT003574	SCREW	WHT003574 SCREW	-	2	Enquire
016	WHT000916A	CLIP	WHT000916A CLIP	-	2	Enquire
018	410121282	WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	410121282 WATER RADIATOR RIGHT CONVEYOR ASSEMBLY	-	1	Enquire
018	410121281	WATER RADIATOR LEFT CONVEYOR ASSEMBLY	410121281 WATER RADIATOR LEFT CONVEYOR ASSEMBLY	-	1	Enquire
019	410121556	RH NET	410121556 RH NET	-	1	Enquire
019	410121555	LH NET	410121555 LH NET	-	1	Enquire
020	7M119597	GASKET	7M119597 GASKET	-	1	Enquire
021	410810559	OIL RADIATOR LH SIDE MEMBER AIR CONVEYOR	410810559 OIL RADIATOR LH SIDE MEMBER AIR CONVEYOR	-	1	Enquire
022	410121221A	GASKET TOP CONVEYOR	410121221A GASKET TOP CONVEYOR	-	2	Enquire
023	410121221C	GASKET CONVEYOR	410121221C GASKET CONVEYOR	-	2	Enquire
024	410121221B	GASKET BOTTOM CONVEYOR	410121221B GASKET BOTTOM CONVEYOR	-	2	Enquire
025	410121221	GASKET LEFT CONVEYOR	410121221 GASKET LEFT CONVEYOR	-	1	Enquire
025	410121221E	GASKET RIGHT CONVEYOR	410121221E GASKET RIGHT CONVEYOR	-	1	Enquire
026	WHT002961	WASHER	WHT002961 WASHER	-	4	Enquire
027	8410611	WASHER	8410611 WASHER	-	6	Enquire
028	N90612002	SCREW M6X14	N90612002 SCREW M6X14	-	6	Enquire
029	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	-	2	Enquire
