Body Elements - Left Side

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - BODY ELEMENTS - LEFT SIDE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

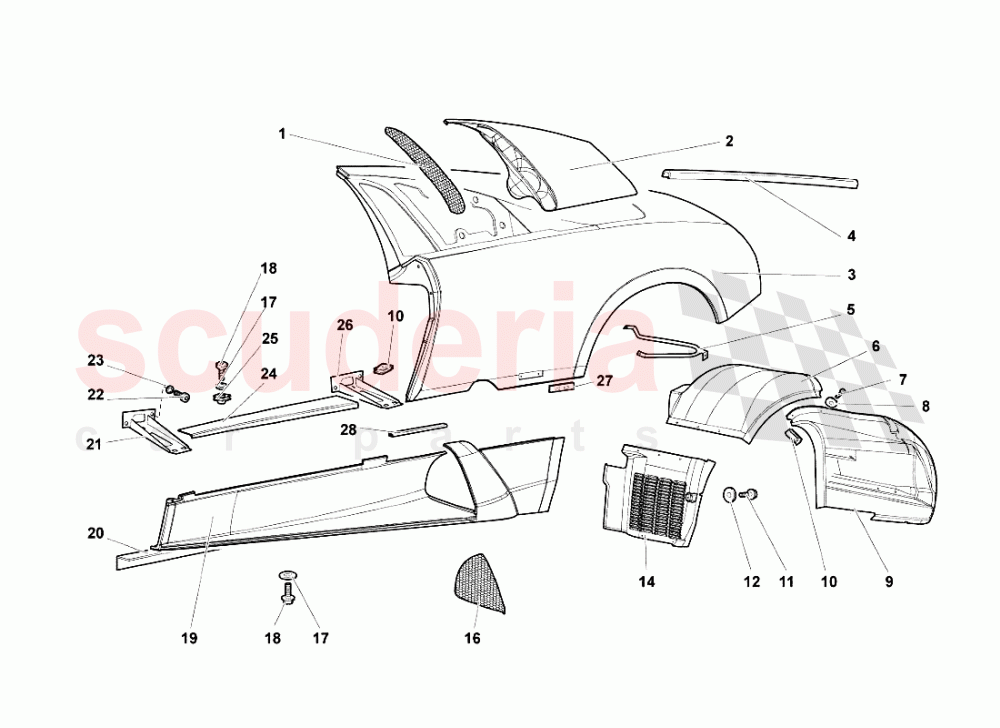

BODY ELEMENTS - LEFT SIDE of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 418853677
NET LEFT 		- 1 Enquire
002 418809953
FENDER LEFT COVER 		- 1 Enquire
003 418821017B
LEFT REAR FENDER ASSEMBLY 		- 1 Enquire
004 418821243
CHANNEL 		- 1 Enquire
005 410117073
LEFT OIL RADIATOR FRAMEWORK 		- 1 Enquire
006 410810981
LEFT REAR WHEELARCH, CENTRAL PART 		- 1 Enquire
007 WHT003066
SCREW 		- 4 Enquire
009 410810985
LEFT REAR WHEELARCH, REAR PART 		- 1 Enquire
010 N90834301
CLIP NUT 		- 4 Enquire
011 N90319404
SCREW 		- 44 Enquire
012 WHT003093
Washer 		- 32 Enquire
014 410810171
LEFT REAR WHEELARCH, FRONT PART 		- 1 Enquire
016 410864443
NET 		- 1 Enquire
017 WHT002961
WASHER 		- 18 Enquire
018 N10718801
HEX COLLARED BOLT 		- 18 Enquire
019 410809035
LEFT SIDE MEMBER ASSEMBLY 		- 1 Enquire
020 410857469
AERODYNAMIC LH STRAP IRON 		- 1 Enquire
021 410813550
Bracket 		- 1 Enquire
022 8700627
SCREW 		- 4 Enquire
023 8400606
WASHER 		- 4 Enquire
024 410853491
SCUFF PLATE 		- 1 Enquire
024 410853491A
SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
025 400827947
CLIP 		- 6 Enquire
026 410813549
BRACKET 		- 1 Enquire
027 94013594
V12 6.2L PLATE 		- 1 Enquire
028 400853893
GASKET 		- 1 Enquire
