WINDSHIELD WIPER of Lamborghini Lamborghini Murcielago

View All

Lamborghini Murcielago - WINDSHIELD WIPER

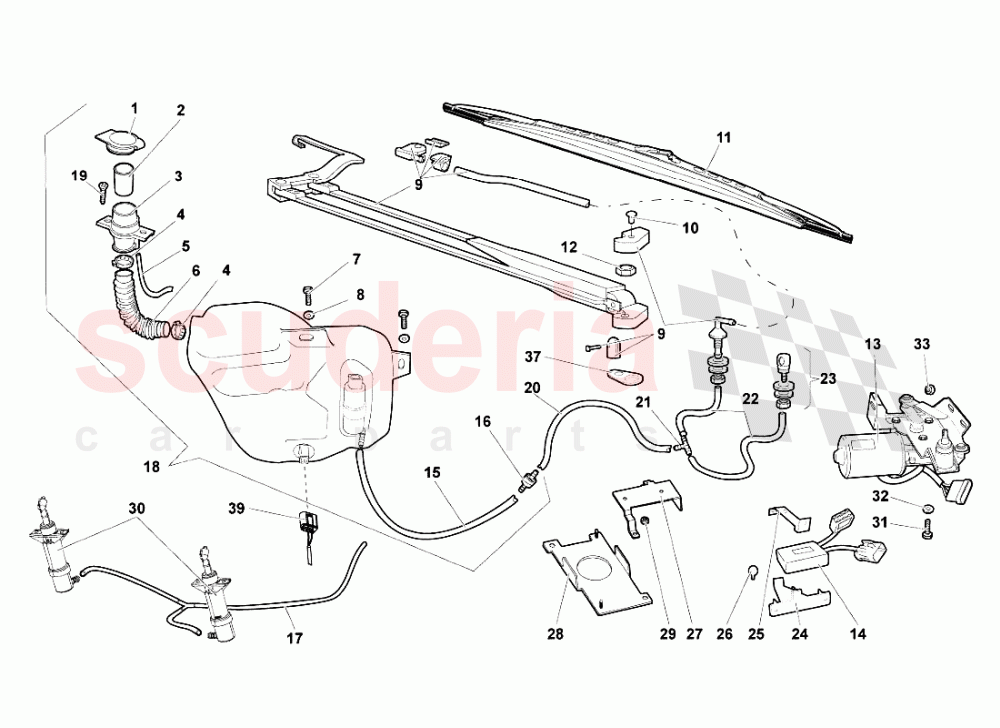

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	400955277	END CAP	400955277 END CAP	$14.43	1
002	71009515	FILTER	71009515 FILTER	$1.68	1
003	71009421	HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER	71009421 HEADLIGHT WIPER/WASHER RESERVOIR PLUG HOLDER	$21.86	1
004	71009601	CLAMP	71009601 CLAMP	$13.10	1
005	71009602	BREATHER PIPE	71009602 BREATHER PIPE	$2.69	1
006	400955944	PIPE	400955944 PIPE	$86.54	1
007	N10718801	HEX COLLARED BOLT	N10718801 HEX COLLARED BOLT	$0.95	1
008	WHT002961	WASHER	WHT002961 WASHER	$0.42	1
009	418955407C	WIPER ARM ASSEMBLY	418955407C WIPER ARM ASSEMBLY	$1,451.61	1
010	WHT003302	SCREW M4X6	WHT003302 SCREW M4X6	$1.81 MSRP: ~~7.10~~ (74.5% off)	1
011	8Z1955425C	WINDSCREEN WIPER	8Z1955425C WINDSCREEN WIPER	$35.30	1
012	WHT003571	NUT M8	WHT003571 NUT M8	$28.17	1
013	418955023B	LINKAGE GEARMOTOR ASSEMBLY	418955023B LINKAGE GEARMOTOR ASSEMBLY	$998.67	1
014	410906015	WINDSCREEN WIPER TIMER	410906015 WINDSCREEN WIPER TIMER	$2,224.46	1
015	71009603	PIPE	71009603 PIPE	$13.31	1
016	113955975C	VALVE	113955975C VALVE	$16.86	1
017	410955175	PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	410955175 PIPES/CONNECTORS SET FOR HEADLIGHT WASHERS	$188.87	1
018	400955448	WASHER RESERVOIR ASSEMBLY	400955448 WASHER RESERVOIR ASSEMBLY	$305.11	1
019	WHT003563	SCREW M6X14	WHT003563 SCREW M6X14	$2.84	1
020	418955962	PIPE	418955962 PIPE	$4.06	1
021	7L133579	T-PIECE	7L133579 T-PIECE	$8.01	1
022	410955963	PIPE	410955963 PIPE	$22.92	1
023	400955985	NOZZLE	400955985 NOZZLE	$5.79	1
024	410955776	BRACKET	410955776 BRACKET	$104.43	1
025	410955675	BRACKET	410955675 BRACKET	$74.87	1
026	N90685101	BRACKET FOR CONNECTOR HOUSING	N90685101 BRACKET FOR CONNECTOR HOUSING	$4.37	1
027	410955932	BRACKET	410955932 BRACKET	$43.76	1
028	410955931	BRACKET	410955931 BRACKET	$34.75	1
029	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	2
032	WHT002961	WASHER	WHT002961 WASHER	$0.42	3
033	N01508213	HEXAGON COLLAR NUT	N01508213 HEXAGON COLLAR NUT	$0.21	2
037	413819687	COVER	413819687 COVER	$9.49	1
039	7M0973202	CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	7M0973202 CONNECTOR (SEE TABLE 61.01.00 - SEE REF. 1)	$16.95	1
