Body Elements - Right Side

Lamborghini Murcielago

Find Your Part

Lamborghini Murcielago - BODY ELEMENTS - RIGHT SIDE

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

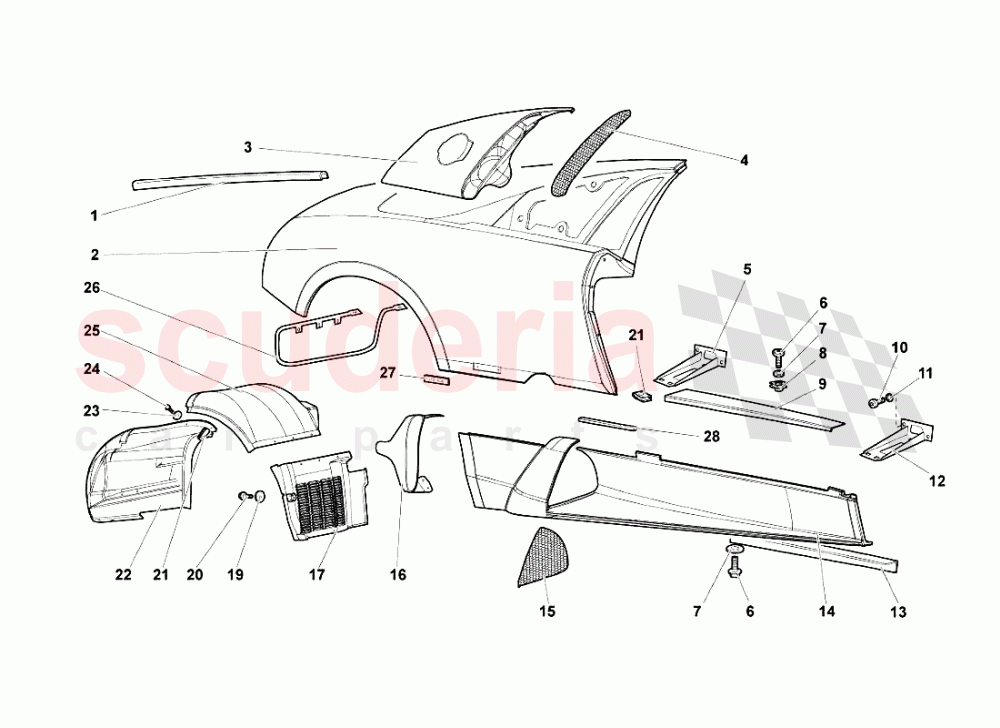

BODY ELEMENTS - RIGHT SIDE of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 418821243
CHANNEL 		- 1 Enquire
002 418821018B
RIGHT REAR FENDER ASSEMBLY 		- 1 Enquire
003 418809954
FENDER RH COVER AND FUEL LID 		- 1 Enquire
004 418853676
RIGHT NET 		- 1 Enquire
005 410813549
BRACKET 		- 1 Enquire
006 N10718801
HEX COLLARED BOLT 		- 18 Enquire
007 WHT002961
WASHER 		- 18 Enquire
008 WHT003673
CLIP 		- 6 Enquire
009 410853492A
SCUFF PLATE (CARBON INTERIOR - SUPPLY VIN) 		- 1 Enquire
009 410853492
SCUFF PLATE 		- 1 Enquire
010 8700627
SCREW 		- 4 Enquire
011 8400606
WASHER 		- 4 Enquire
012 410813550
Bracket 		- 1 Enquire
013 410857470
AERODYNAMIC RIGHT STRAP IRON 		- 1 Enquire
014 410809036
RIGHT SIDE MEMBER ASSEMBLY 		- 1 Enquire
015 410864444
NET 		- 1 Enquire
016 410119017
ALTERNATOR AIR CONVEYOR 		- 1 Enquire
017 410810172
RIGHT REAR WHEELARCH, FRONT PART 		- 1 Enquire
019 WHT003093
Washer 		- 32 Enquire
020 N90319404
SCREW 		- 19 Enquire
021 N90834301
CLIP NUT 		- 4 Enquire
022 410810986
RIGHT REAR WHEELARCH, REAR PART 		- 1 Enquire
023 N91109201
WASHER 		- 18 Enquire
024 WHT003066
SCREW 		- 4 Enquire
025 410810982
RIGHT REAR WHEELARCH, CENTRAL PART 		- 1 Enquire
027 94013594
V12 6.2L PLATE 		- 1 Enquire
028 400853893
GASKET 		- 1 Enquire
