Lamborghini Murcielago - WINDOWS

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

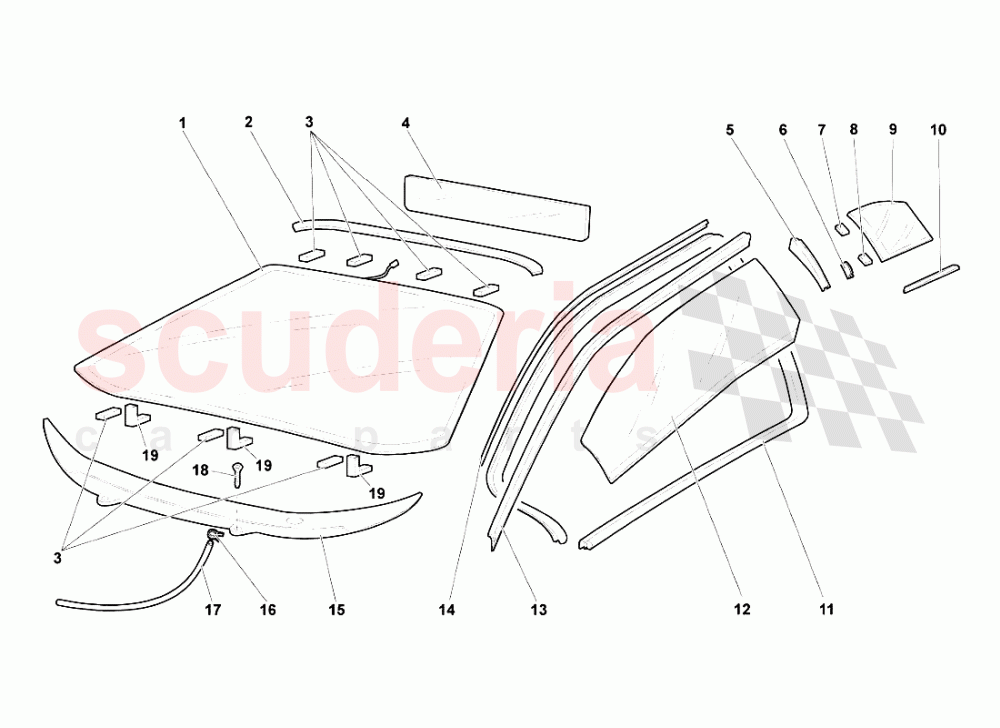

WINDOWS of Lamborghini Lamborghini Murcielago Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 418845011
WINDSCREEN 		- 1 Enquire
002 418845121
WINDSHIELD UPPER GASKET 		- 1 Enquire
003 410845235
WINDSHIELD SPACER 		- 8 Enquire
004 418845491
REAR WINDOW 		- 1 Enquire
005 418845145
LH MOLDING 		- 1 Enquire
005 418845146
RH MOLDING 		- 1 Enquire
006 418845421
BRACKET 		- 2 Enquire
007 400845633
QUARTER WINDOW GLASS SHIM 		- 2 Enquire
008 410845626
SPACER 		- 2 Enquire
009 418845300
FIXED REAR RIGHT WINDOW GLASS 		- 1 Enquire
009 418845299
FIXED REAR LEFT WINDOW GLASS 		- 1 Enquire
010 418845150
RH MOLDING 		- 1 Enquire
010 418845149
LH MOLDING 		- 1 Enquire
011 418837500B
DOOR COMPARTMENT CHANNEL RACE 		- 1 Enquire
012 418845202A
RIGHT DOOR WINDOW 		- 1 Enquire
012 418845201A
LEFT DOOR WINDOW 		- 1 Enquire
013 418837745
LH DOOR UPPER GASKET 		- 1 Enquire
013 418837744
RH DOOR UPPER GASKET 		- 1 Enquire
014 418837629
DOOR ANTI-WHISTLE LEFT FRAME 		- 1 Enquire
014 418837630
DOOR ANTI-WHISTLE RIGHT FRAME 		- 1 Enquire
015 418806609
COVER 		- 1 Enquire
016 8830128
CLAMP 		- 1 Enquire
017 410805267
PIPE 		- 1 Enquire
018 WHT001190
ROUND HD. SCREW 		- 2 Enquire
