Find Your Part

View All

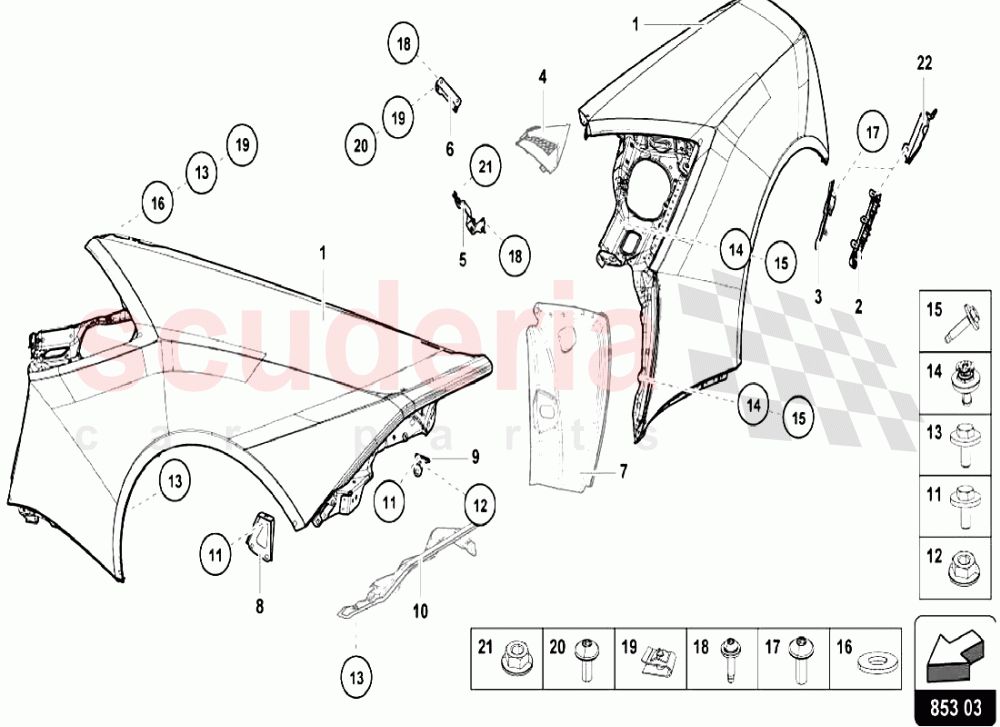

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T8809601E	Left Rear Fender Assembly	4T8809601E Left Rear Fender Assembly	-	1	Enquire
001	4T8809602E	RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	4T8809602E RIGHT REAR FENDER ASSEMBLY (CONTACT YOUR AREA MANAGER)	-	1	Enquire
002	4T8853946	LEFT SUPPORT	4T8853946 LEFT SUPPORT	-	1	Enquire
002	4T8853945	RIGHT SUPPORT	4T8853945 RIGHT SUPPORT	-	1	Enquire
003	4T8810696	ARM	4T8810696 ARM	-	1	Enquire
003	4T8810695	ARM	4T8810695 ARM	-	1	Enquire
005	4T0809609B	LH BRACKET	4T0809609B LH BRACKET	-	1	Enquire
005	4T0809610B	RH BRACKET	4T0809610B RH BRACKET	-	1	Enquire
008	4T0809076B	RH BRACKET	4T0809076B RH BRACKET	-	1	Enquire
008	4T0809075B	LH BRACKET	4T0809075B LH BRACKET	-	1	Enquire
009	4T0809465B	RETAINING PLATE	4T0809465B RETAINING PLATE	-	1	Enquire
009	4T0809466B	RETAINING PLATE	4T0809466B RETAINING PLATE	-	1	Enquire
011	N91034501	SCREW (M6X18)	N91034501 SCREW (M6X18)	-	8	Enquire
012	N01508210	HEXAGON COLLAR NUT	N01508210 HEXAGON COLLAR NUT	-	4	Enquire
013	N10009209	HEXAGON HEAD BOLT (COMBI)	N10009209 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
014	8H0806221	COMPENSATING PIECE	8H0806221 COMPENSATING PIECE	-	10	Enquire
015	N10405702	HEXAGON SOCKET HEAD BOLT	N10405702 HEXAGON SOCKET HEAD BOLT	-	10	Enquire
016	N01166623	WASHER	N01166623 WASHER	-	4	Enquire
017	N90958903	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N90958903 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	-	4	Enquire
019	N90688703	SPEED NUT	N90688703 SPEED NUT	-	6	Enquire
