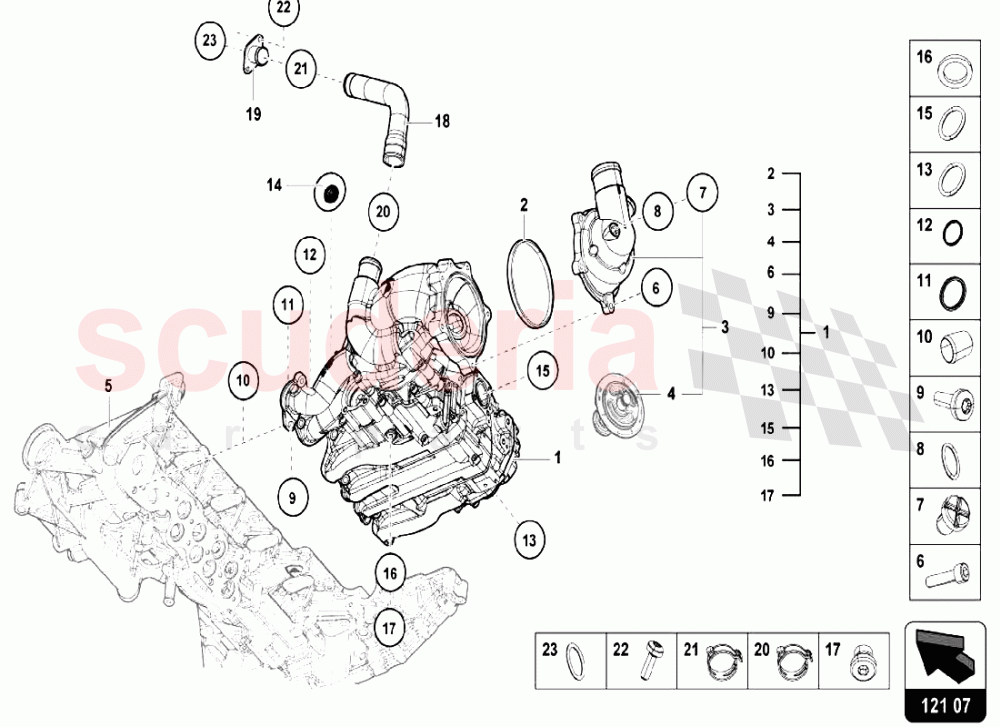

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L115009AL	PUMP ASSEMBLY	7L115009AL PUMP ASSEMBLY	-	1	Enquire
002	79121119C	SEAL	79121119C SEAL	-	1	Enquire
003	79121115AT	WATER THERMOSTAT BODY	79121115AT WATER THERMOSTAT BODY	-	1	Enquire
006	WHT003868	SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	WHT003868 SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD	-	1	Enquire
007	WHT003874	SEAL BOLT WITH SEALING RING	WHT003874 SEAL BOLT WITH SEALING RING	-	1	Enquire
009	N10700201	HEXAGON SOCKET HEAD BOLT	N10700201 HEXAGON SOCKET HEAD BOLT	-	1	Enquire
010	N91020803	DOWEL SLEEVE	N91020803 DOWEL SLEEVE	-	1	Enquire

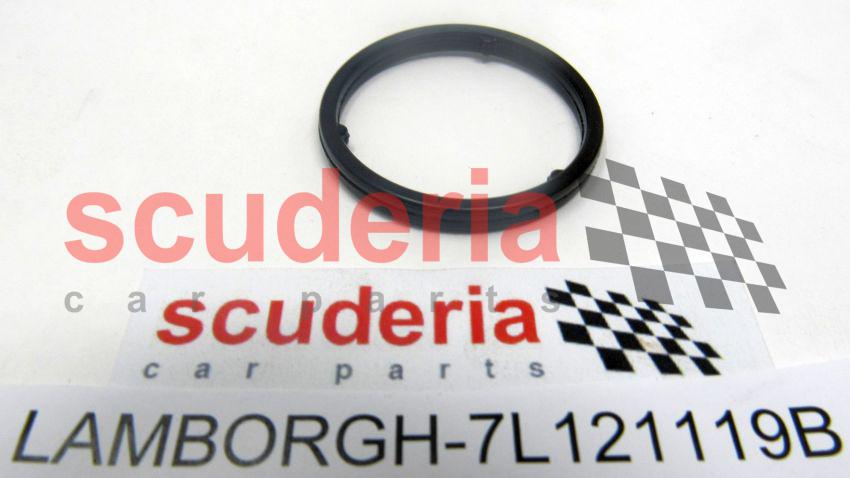

011	7L121119B	O-RING ARRIVING SOON	7L121119B O-RING ARRIVING SOON	-	1	Enquire

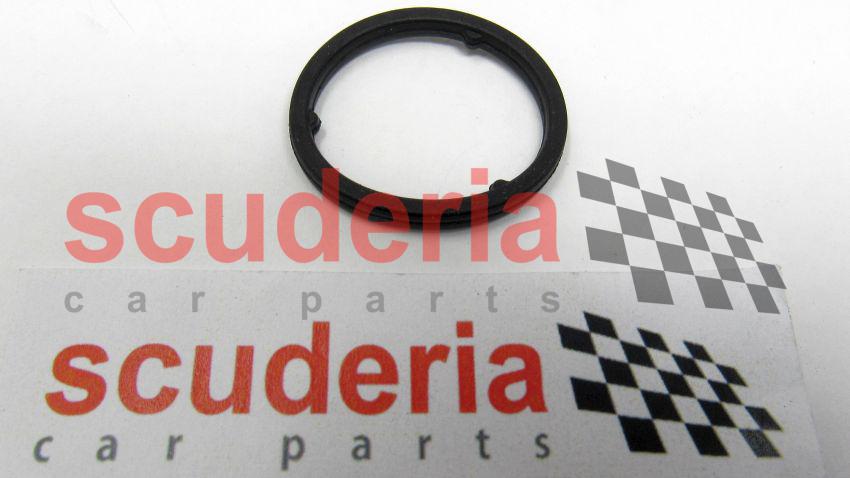

012	7L115446A	ENGINE OIL PUMP SEAL	7L115446A ENGINE OIL PUMP SEAL	-	1	Enquire

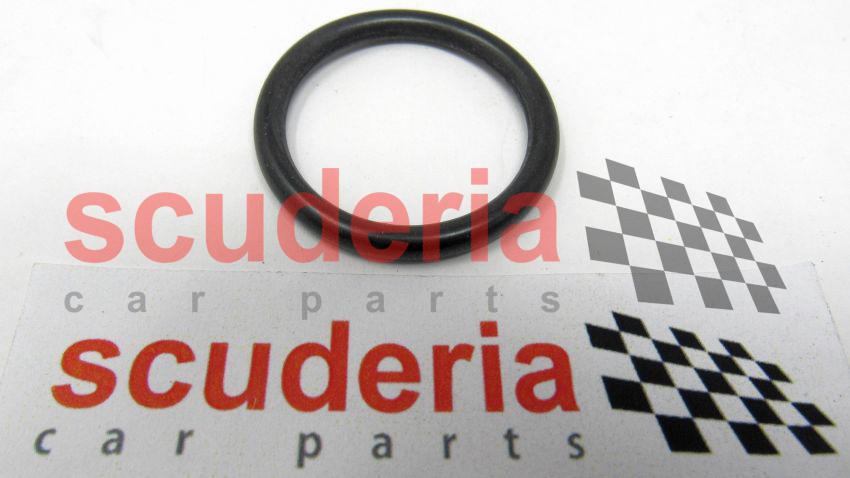

013	WHT003731	O-RING 27 X 3.5	WHT003731 O-RING 27 X 3.5	-	2	Enquire

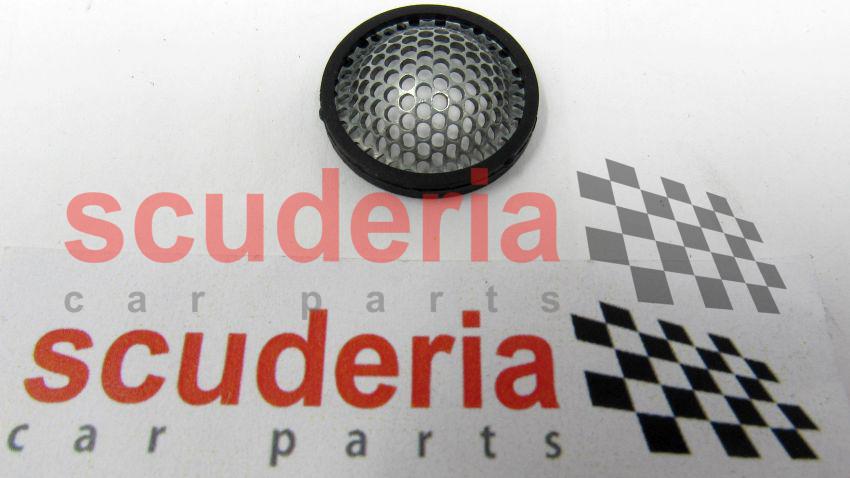

014	7L103081	OIL STRAINER	7L103081 OIL STRAINER	-	8	Enquire

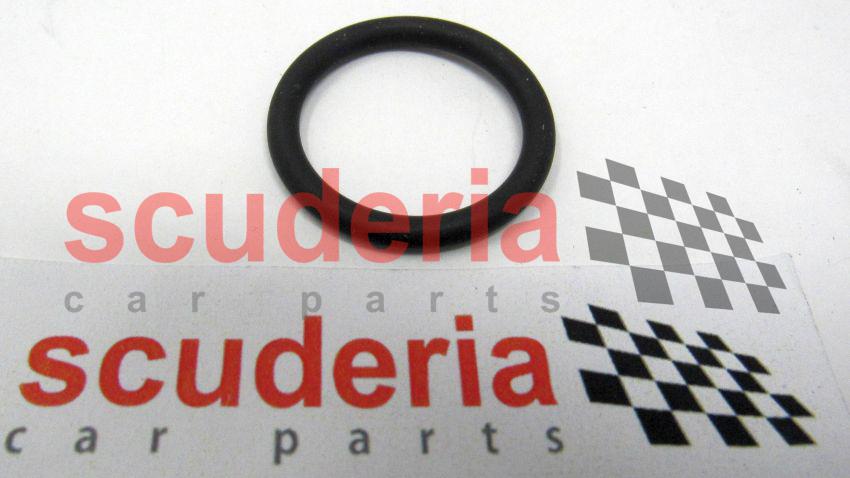

015	WHT003732	O-RING	WHT003732 O-RING	-	1	Enquire
016	N0138115	SEAL RING	N0138115 SEAL RING	-	2	Enquire
017	N0160243	SEALING PLUG	N0160243 SEALING PLUG	-	2	Enquire
018	7L121057T	COOLANT HOSE	7L121057T COOLANT HOSE	-	1	Enquire
019	7L121133M	WATER CONNECTION	7L121133M WATER CONNECTION	-	1	Enquire
020	6B145917	SPRING BAND CLAMP	6B145917 SPRING BAND CLAMP	-	1	Enquire
021	N90687101	SPRING BAND CLAMP	N90687101 SPRING BAND CLAMP	-	1	Enquire
022	N10196103	OVAL SOCKET HEAD BOLT WITH HEX DRIVE	N10196103 OVAL SOCKET HEAD BOLT WITH HEX DRIVE	-	2	Enquire
023	N90544501	O-RING	N90544501 O-RING	-	1	Enquire
