Doors - Handle and Lock of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Doors - Handle and Lock

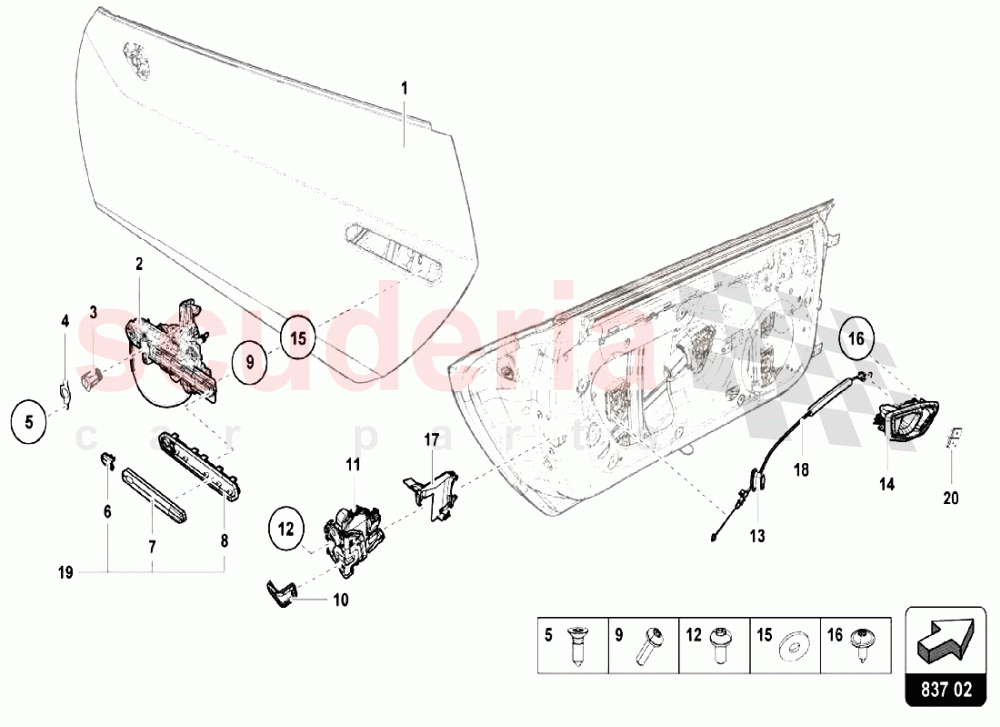

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
002	4T1837886D	HAND STRAP	4T1837886D HAND STRAP	-	1	Enquire
002	4T1837885D	HAND STRAP	4T1837885D HAND STRAP	-	1	Enquire
009	N10700201	HEXAGON SOCKET HEAD BOLT	N10700201 HEXAGON SOCKET HEAD BOLT	-	2	Enquire
010	4G8837087	WEATHERSTRIP	4G8837087 WEATHERSTRIP	-	4	Enquire
011	8J1837016C	RH LOCK DOOR	8J1837016C RH LOCK DOOR	-	1	Enquire
011	8J1837015C	LH LOCK DOOR	8J1837015C LH LOCK DOOR	-	1	Enquire
011	8J1837015D	LH LOCK DOOR (DOOR LOCKING SYSTEM)	8J1837015D LH LOCK DOOR (DOOR LOCKING SYSTEM)	-	1	Enquire
011	8J1837016D	RH LOCK DOOR (DOOR LOCKING SYSTEM)	8J1837016D RH LOCK DOOR (DOOR LOCKING SYSTEM)	-	1	Enquire
011	8J1837016F	DOOR LOCK	8J1837016F DOOR LOCK	-	1	Enquire
011	8J1837015F	DOOR LOCK	8J1837015F DOOR LOCK	-	1	Enquire
012	WHT003348	OVAL HEAD SCREW W/ INTERNAL SERRATION (COMBI), SELF-LOCKIN	WHT003348 OVAL HEAD SCREW W/ INTERNAL SERRATION (COMBI), SELF-LOCKIN	-	6	Enquire
013	8L3837199B	CLIP	8L3837199B CLIP	-	2	Enquire
014	4T0837294	RH HANDLE (UNTIL VIN FLA01149)	4T0837294 RH HANDLE (UNTIL VIN FLA01149)	-	1	Enquire
014	4T0837294H	RH HANDLE (FROM VIN FLA01150)	4T0837294H RH HANDLE (FROM VIN FLA01150)	-	1	Enquire
014	4T0837293	LH HANDLE (UNTIL VIN FLA01149)	4T0837293 LH HANDLE (UNTIL VIN FLA01149)	-	1	Enquire
014	4T0837293H	LH HANDLE (FROM VIN FLA01150)	4T0837293H LH HANDLE (FROM VIN FLA01150)	-	1	Enquire
015	N90225901	WASHER	N90225901 WASHER	-	6	Enquire
016	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
017	4T0837904	DOOR LOCK COVER	4T0837904 DOOR LOCK COVER	-	2	Enquire
017	4T0837903	DOOR LOCK COVER	4T0837903 DOOR LOCK COVER	-	2	Enquire
018	4T0837085	BOWDEN CABLE	4T0837085 BOWDEN CABLE	-	2	Enquire
019	4T0898562	TAG FOR KEY NUMBER	4T0898562 TAG FOR KEY NUMBER	-	1	Enquire
019	4T0898561	TAG FOR KEY NUMBER	4T0898561 TAG FOR KEY NUMBER	-	1	Enquire
020	4G8962107	SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	4G8962107 SAFETY SWITCH FOR CENTRAL LOCKING SYSTEM	-	1	Enquire
