Lamborghini Huracan LP580 Coupe - Oil System

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

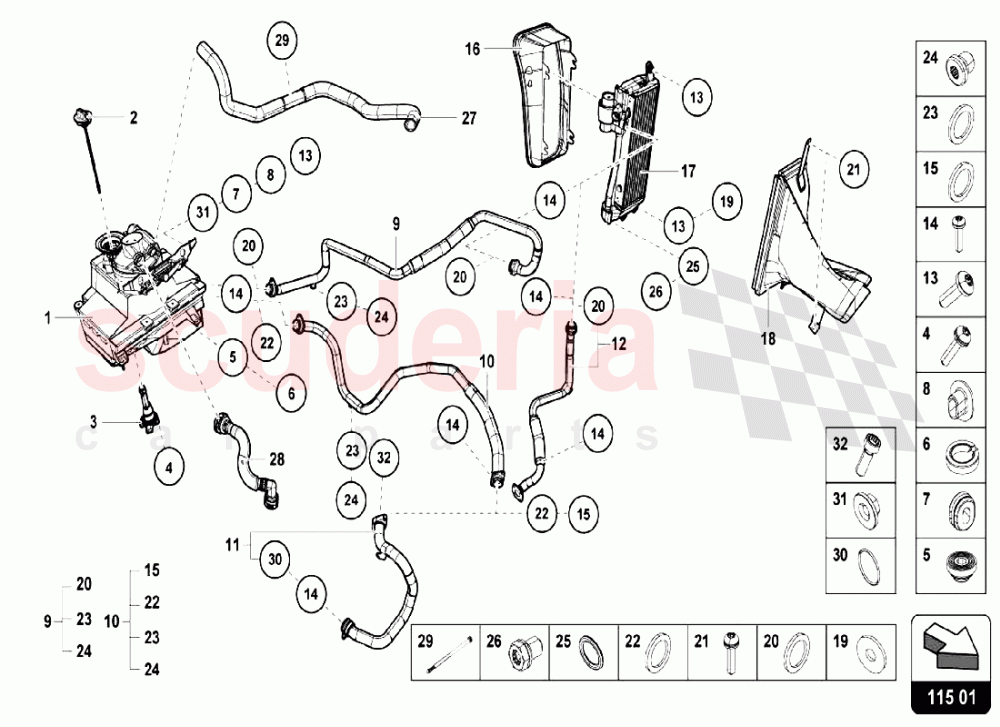

Oil System of Lamborghini Lamborghini Huracan LP580 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4S0115373A
OIL TANK 		- 1 Enquire
002 420103485E
End Cap 		- 1 Enquire
003 79907660A
OIL LEVEL SENSOR 		- 1 Enquire
004 N91185901
Hexagon Socket Flat Head Bolt (m6x28) 		- 11 Enquire
005 8K0129669C
Grommet 		- 1 Enquire
006 8K0129697
COVER CAP 		- 1 Enquire
007 8K0129669C
Grommet 		- 1 Enquire
008 8K0129734C
BUSH 		- 1 Enquire
009 4S0115689A
Oil Pipe 		- 1 Enquire
010 4S0115687A
PIPE 		- 1 Enquire
011 4S0115223B
PIPE 		- 1 Enquire
012 4S0117413A
PIPE 		- 1 Enquire
013 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING 		- 5 Enquire
015 WHT007432
O-RING 		- 2 Enquire
016 4T0317025
AIR GUIDE 		- 1 Enquire
017 420117015A
OIL COOLER 		- 1 Enquire
018 4T0117335
LEFT AIR DUCT 		- 1 Enquire
019 N01167026
WASHER 		- 1 Enquire
020 N90958101
O-RING 		- 4 Enquire
022 N90295401
O-RING 		- 4 Enquire
023 N0138128
SEAL RING 		- 1 Enquire
024 N10637901
SEALING PLUG 		- 2 Enquire
025 N0138157
SEAL RING 		- 1 Enquire
026 36103193
OIL DRAIN PLUG 		- 2 Enquire
027 4S0103218B
BREATHER LINE 		- 1 Enquire
028 4S0103211
BREATHER LINE 		- 1 Enquire
029 8A0971850C
CABLE TIES 		- 2 Enquire
030 N0138128
SEAL RING 		- 1 Enquire
