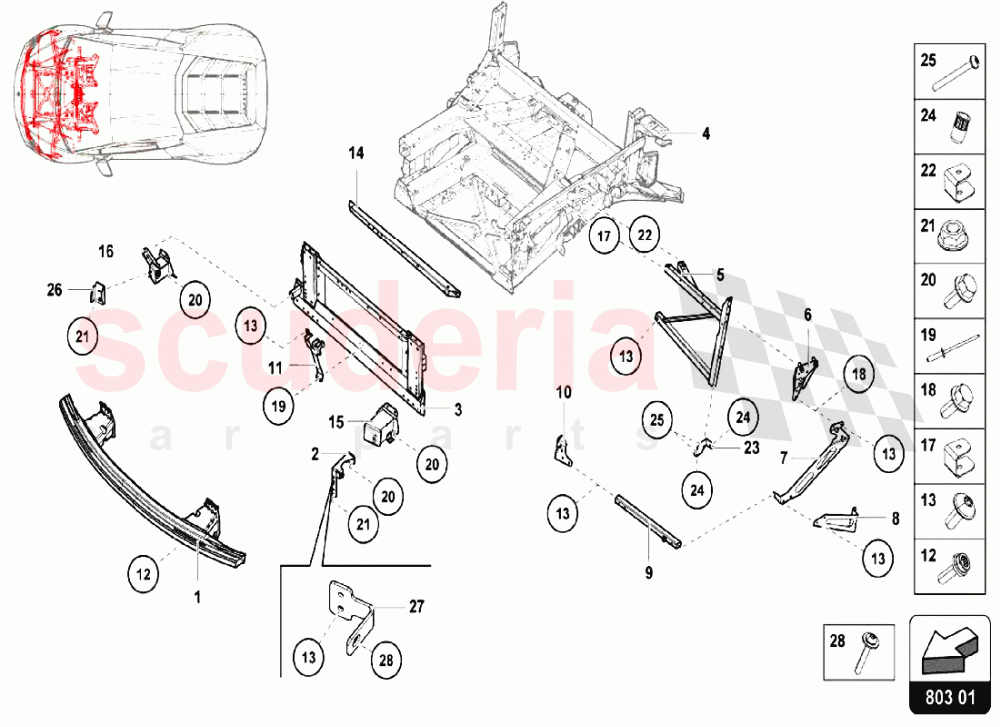

Lamborghini Huracan LP580 Coupe - Front Frame 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0807109D	STORAGE FRAME	4T0807109D STORAGE FRAME	-	1	Enquire
002	4T0805177B	MOUNTING BAR	4T0805177B MOUNTING BAR	-	1	Enquire
002	4T0805178B	MOUNTING BAR	4T0805178B MOUNTING BAR	-	1	Enquire
003	4T0805851B	FRONT BUMPERS CROSS MEMBER (CONTACT YOUR AREA MANAGER)	4T0805851B FRONT BUMPERS CROSS MEMBER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
005	4T0806191B	BRACE	4T0806191B BRACE	-	1	Enquire
005	4T0806192B	BRACE	4T0806192B BRACE	-	1	Enquire
006	4T0806126C	LH Bracket	4T0806126C LH Bracket	-	1	Enquire
006	4T0806125D	SUPPORT	4T0806125D SUPPORT	-	1	Enquire
007	4T0805327C	ARM	4T0805327C ARM	-	1	Enquire
007	4T0805328C	ARM	4T0805328C ARM	-	1	Enquire
008	4T0805380C	ARM	4T0805380C ARM	-	1	Enquire
008	4T0805379C	ARM	4T0805379C ARM	-	1	Enquire
009	4T0805668D	BRACKET RIGHT	4T0805668D BRACKET RIGHT	-	1	Enquire
009	4T0805667D	FRONT LH REINFORCEMENT	4T0805667D FRONT LH REINFORCEMENT	-	1	Enquire
010	4T0805256D	REINFORCEMENT	4T0805256D REINFORCEMENT	-	1	Enquire
010	4T0805255D	REINFORCEMENT	4T0805255D REINFORCEMENT	-	1	Enquire
011	4T0805532B	ARM	4T0805532B ARM	-	1	Enquire
012	N91104901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	N91104901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)	-	4	Enquire
013	N91042302	OVAL HEXAGON SOCKET HEAD BOLT	N91042302 OVAL HEXAGON SOCKET HEAD BOLT	-	26	Enquire
014	4T0805563B	LOCK CARRIER	4T0805563B LOCK CARRIER	-	1	Enquire
015	4T0807551E	ARM	4T0807551E ARM	-	1	Enquire
016	4T0807552E	ARM	4T0807552E ARM	-	1	Enquire
017	4S0806507B	RETAINING PLATE	4S0806507B RETAINING PLATE	-	1	Enquire
017	4S0806508B	RETAINING PLATE	4S0806508B RETAINING PLATE	-	1	Enquire
018	N90533005	HEXAGON HEAD BOLT (COMBI)	N90533005 HEXAGON HEAD BOLT (COMBI)	-	8	Enquire
019	N90692402	POP RIVET	N90692402 POP RIVET	-	2	Enquire
020	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	9	Enquire
021	N10609201	HEXAGON COLLAR NUT	N10609201 HEXAGON COLLAR NUT	-	4	Enquire
022	4S0805371B	RETAINING PLATE	4S0805371B RETAINING PLATE	-	1	Enquire
022	4S0805372B	RETAINING PLATE	4S0805372B RETAINING PLATE	-	1	Enquire
023	4T0805260B	BRACKET	4T0805260B BRACKET	-	1	Enquire
023	4T0805259B	BRACKET	4T0805259B BRACKET	-	1	Enquire
024	N91097301	HEXAGON SOCKET FLAT HEAD BOLT	N91097301 HEXAGON SOCKET FLAT HEAD BOLT	-	4	Enquire
025	N10009507	HEXAGON HEAD BOLT (COMBI)	N10009507 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
027	4T0805618	ARM	4T0805618 ARM	-	2	Enquire
028	N10442204	HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	N10442204 HEXAGON SOCKET OVAL HEAD BOLT (COMBI)	-	2	Enquire
