Rear Crosspiece of Lamborghini Lamborghini Huracan LP580 Coupe

View All

Lamborghini Huracan LP580 Coupe - Rear Crosspiece

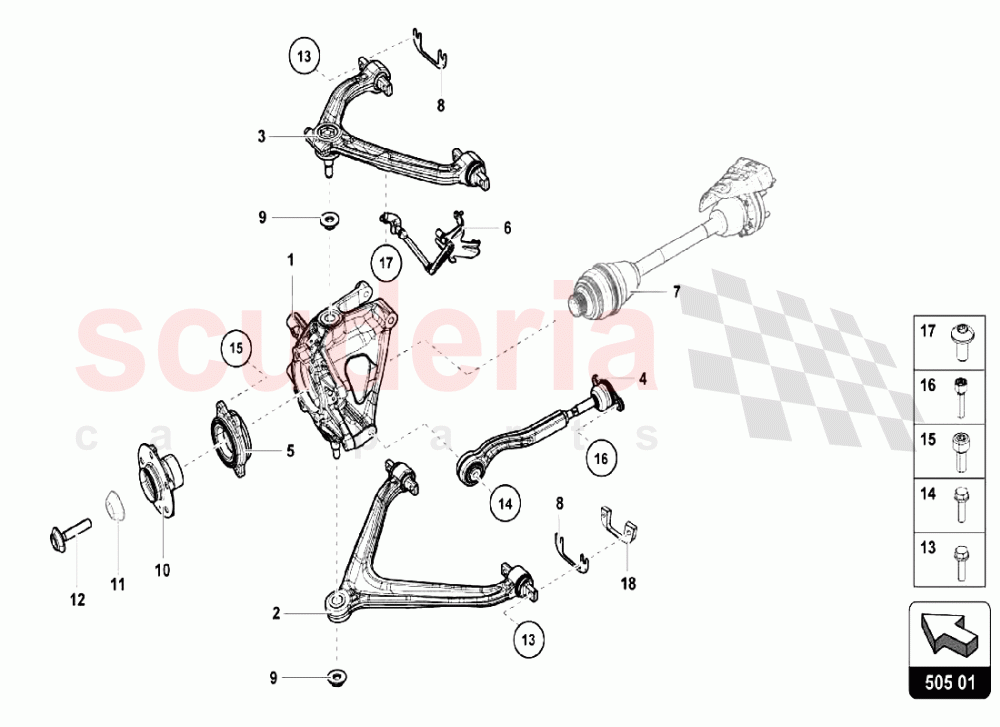

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4T0505434C	REAR RIGHT HUB CARRIER (CONTACT YOUR AREA MANAGER)	4T0505434C REAR RIGHT HUB CARRIER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
001	4T0505433C	REAR LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER)	4T0505433C REAR LEFT HUB CARRIER (CONTACT YOUR AREA MANAGER)	-	1	Enquire
002	4T0505312A	WISHBONE	4T0505312A WISHBONE	-	1	Enquire
002	4T0505311A	WISHBONE	4T0505311A WISHBONE	-	1	Enquire
003	4T0505324	WISHBONE	4T0505324 WISHBONE	-	1	Enquire
003	4T0505323	WISHBONE	4T0505323 WISHBONE	-	1	Enquire
004	4S0501529B	TRACK ROD	4S0501529B TRACK ROD	-	2	Enquire
005	8K0407625F	DUOBLE BALL BEARING ARRIVING SOON	8K0407625F DUOBLE BALL BEARING ARRIVING SOON	-	2	Enquire
006	4S0941274D	LEVEL SENSOR WITH POLES	4S0941274D LEVEL SENSOR WITH POLES	-	1	Enquire
006	4S0941273D	LEVEL SENSOR WITH POLES	4S0941273D LEVEL SENSOR WITH POLES	-	1	Enquire
008	4S0407203G	BALANCING PLATE	4S0407203G BALANCING PLATE	-	4	Enquire
008	4S0407203D	BALANCING PLATE	4S0407203D BALANCING PLATE	-	4	Enquire
008	4S0407203C	BALANCING PLATE	4S0407203C BALANCING PLATE	-	4	Enquire
008	4S0407203E	BALANCING PLATE	4S0407203E BALANCING PLATE	-	4	Enquire
009	WHT004898	HEXAGON COLLAR NUT SELF-LOCKING	WHT004898 HEXAGON COLLAR NUT SELF-LOCKING	-	4	Enquire
010	8K0407613B	WHEEL HUB	8K0407613B WHEEL HUB	-	2	Enquire
012	8E0407643A	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	8E0407643A SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	2	Enquire
013	WHT007142	HEXAGON BOLT	WHT007142 HEXAGON BOLT	-	8	Enquire
014	WHT002059	BOLT, HEX HEAD WITH SHOULDER (COMBI)	WHT002059 BOLT, HEX HEAD WITH SHOULDER (COMBI)	-	8	Enquire
015	WHT000237	BALL SCREW	WHT000237 BALL SCREW	-	8	Enquire
016	N10660901	SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	N10660901 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD	-	8	Enquire
017	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	-	8	Enquire
