Front Frame 2

Lamborghini Huracan LP580 Coupe

Find Your Part

Lamborghini Huracan LP580 Coupe - Front Frame 2

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

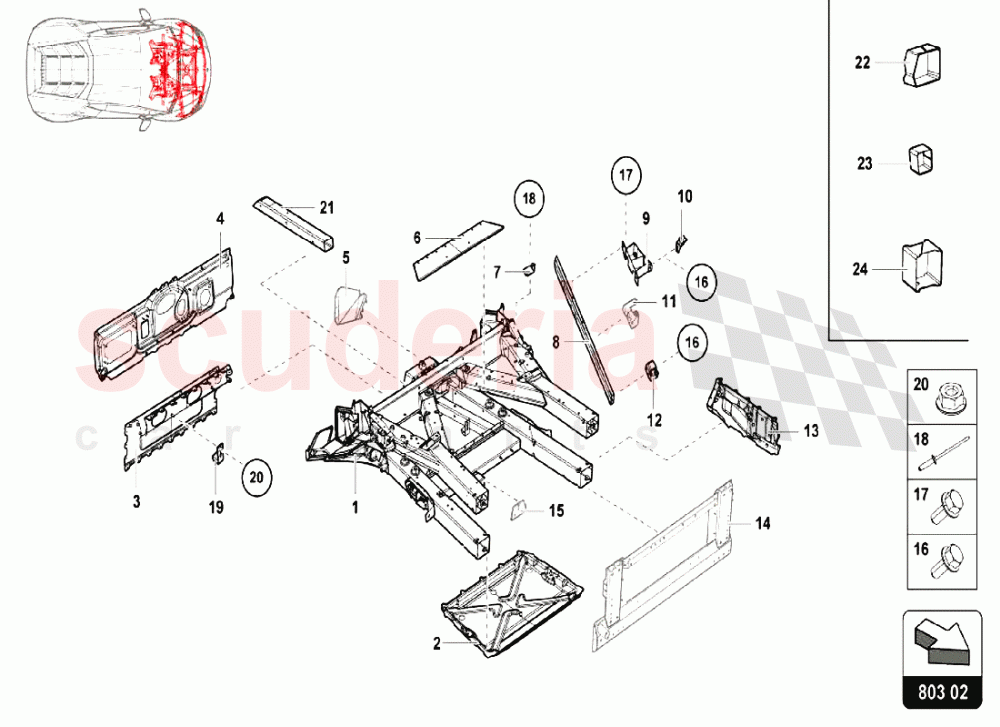

Front Frame 2 of Lamborghini Lamborghini Huracan LP580 Coupe Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 4T0805028K
FRONT END 		- 1 Enquire
002 4T0805303C
CONNECTING PLATE 		- 1 Enquire
003 4S0805081C
SHEET 		- 1 Enquire
005 4S0805457B
SUPPORT 		- 1 Enquire
005 4S0805458B
SUPPORT 		- 1 Enquire
006 4T0805585D
SHEET 		- 1 Enquire
007 4T0805913B
RETAINING PLATE 		- 1 Enquire
007 4T1805914C
RETAINING PLATE 		- 1 Enquire
008 4T0805158B
SIDE MEMBER 		- 1 Enquire
008 4T0805157C
SIDE MEMBER 		- 1 Enquire
009 4T0806242E
ARM
ARRIVING SOON 		- 1 Enquire
009 4T0806241E
ARM 		- 1 Enquire
010 4T0805816C
RETAINING PLATE 		- 1 Enquire
010 4T0805815C
RETAINING PLATE 		- 1 Enquire
012 4T0806812B
BRACKET 		- 1 Enquire
012 4T0806811B
BRACKET 		- 1 Enquire
013 4T0805063C
COVER PLATE 		- 1 Enquire
013 4T0805064C
COVER PLATE 		- 1 Enquire
016 N90533005
HEXAGON HEAD BOLT (COMBI) 		- 4 Enquire
017 N90863802
HEXAGON HEAD BOLT (COMBI) 		- 4 Enquire
018 N90692402
POP RIVET 		- 5 Enquire
019 420805733
RETAINER FOR BATTERY 		- 1 Enquire
020 N10609204
HEXAGON COLLAR NUT 		- 1 Enquire
021 4S0806218B
REINFORCEMENT FOR SIDE MEMBER 		- 1 Enquire
021 4S0806217B
REINFORCEMENT FOR SIDE MEMBER 		- 1 Enquire
022 4T0805246K
SLEEVE 		- 1 Enquire
022 4T0805245K
SLEEVE 		- 1 Enquire
023 4T0805661K
SLEEVE 		- 1 Enquire
024 4T0805510K
SLEEVE 		- 1 Enquire
024 4T0805509K
SLEEVE 		- 1 Enquire
