Lights 1

Lamborghini Gallardo Spyder

Find Your Part

Lamborghini Gallardo Spyder - Lights 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

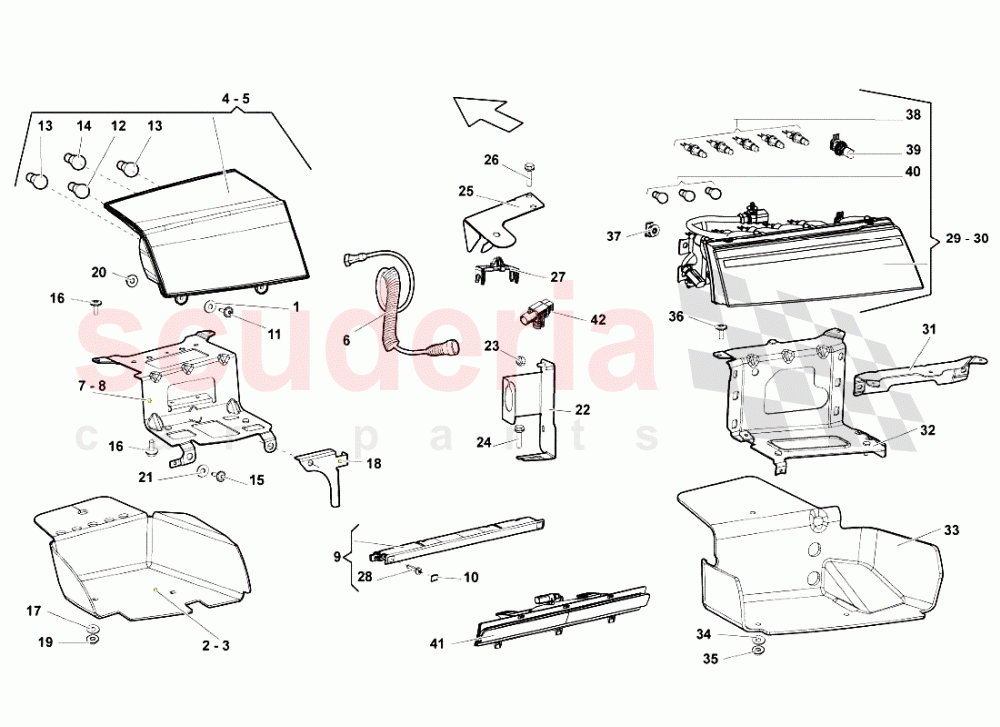

Lights 1 of Lamborghini Lamborghini Gallardo Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 410407295
1.0 MM ADJUSTMENT SHIM 		- 8 Enquire
002 WHT000778
WASHER 		- 10 Enquire
003 400907461
BALLAST CONTROL UNIT SUPPORT BRACKET, LH 		- 1 Enquire
004 400907462
BALLAST CONTROL UNIT SUPPORT BRACKET, RH 		- 1 Enquire
005 400941455
SUPPORT 		- 2 Enquire
006 400941613
LH HEADLIGHT REAR FIXING BRACKET 		- 1 Enquire
007 400941614
RH HEADLIGHT REAR FIXING BRACKET 		- 1 Enquire
010 400955487
THICKNESS 		- 4 Enquire
011 400959645
SOUND ABSORBER PIECE 		- 2 Enquire
012 401941003E
LH HEADLIGHT
(LHD model) 		- 1 Enquire
013 401941004E
RH HEADLIGHT
(LHD model) 		- 1 Enquire
014 N0116946
WASHER 		- 8 Enquire
015 N01508213
HEXAGON COLLAR NUT 		- 14 Enquire
016 N10445502
BULB H6W-12V6W 		- 2 Enquire
017 N02300313
NUT M8 		- 2 Enquire
018 N0903168
SCREW M8X30 		- 2 Enquire
019 N10338302
SCREW M5X12 		- 4 Enquire
020 N10338903
SCREW M6X16 		- 4 Enquire
021 N10445601
LAMP 12V 21W BAY9S 		- 2 Enquire
022 N10445703
LAMP 12V 35W P32D-2 		- 2 Enquire
024 N90847903
Screw M6X15 		- 2 Enquire
025 N91045401
CLAMP 		- 2 Enquire
026 3B0941641
FRONT HEADLIGHT CONTROL UNIT 		- 2 Enquire
027 N10709301
SCREW M6X40 		- 4 Enquire
028 400998003
CONNECTOR 		- 2 Enquire
029 N0116974
WASHER 		- 4 Enquire
