Roof Panel Soft Top - Components of Lamborghini Lamborghini Gallardo Spyder

View All

Lamborghini Gallardo Spyder - Roof Panel Soft Top - Components

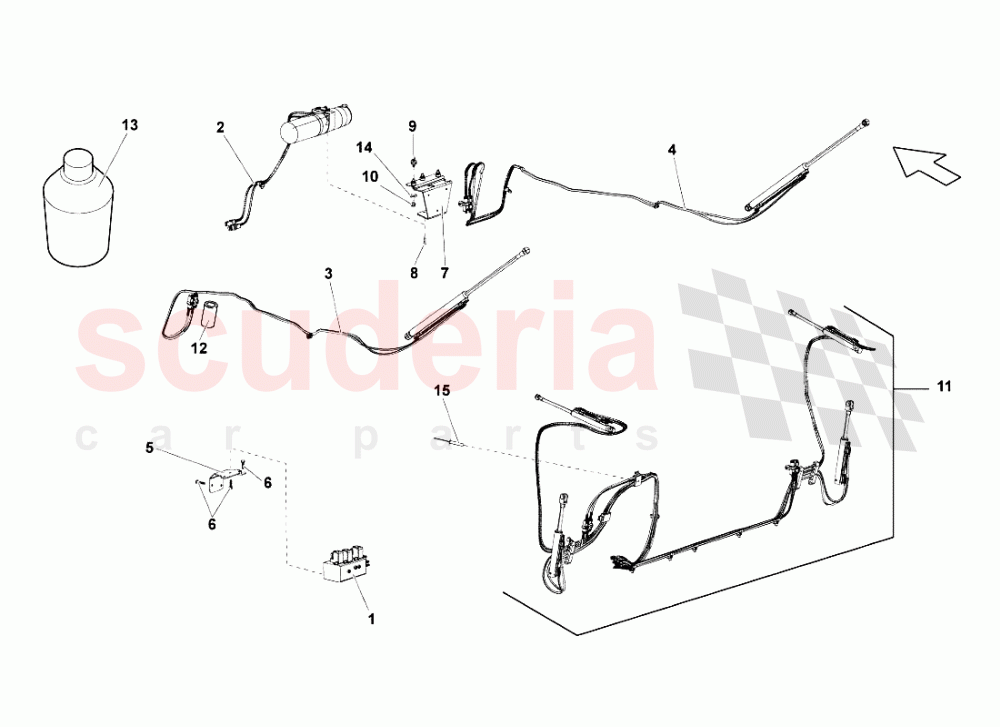

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407871211A	FOLDING-TOP CLOTH (BLUE)	407871211A FOLDING-TOP CLOTH (BLUE)	$5,504.02	1
001	407871211C	FOLDING-TOP CLOTH (BEIGE)	407871211C FOLDING-TOP CLOTH (BEIGE)	$5,685.46	1
001	407871211	FOLDING-TOP CLOTH (BLACK)	407871211 FOLDING-TOP CLOTH (BLACK)	$5,147.85	1
001	407871211B	FOLDING-TOP CLOTH (GREY)	407871211B FOLDING-TOP CLOTH (GREY)	$5,504.02	1
002	407871483	BRACKET 1 LEFT	407871483 BRACKET 1 LEFT	$230.53	1
003	407871484	BRACKET 1 RIGHT	407871484 BRACKET 1 RIGHT	$230.53	1
004	407871493	Bracket 2 Left IN STOCK	407871493 Bracket 2 Left IN STOCK	$353.52	1
005	407871494	BRACKET 2 RIGHT IN STOCK	407871494 BRACKET 2 RIGHT IN STOCK	$354.85	1
006	407871785	BRACKET 3 LEFT	407871785 BRACKET 3 LEFT	$288.31	1
007	407871786	BRACKET 3 RIGHT	407871786 BRACKET 3 RIGHT	$288.31	1
008	407871381	SEAL SOFT TOP 3 REAR	407871381 SEAL SOFT TOP 3 REAR	$1,525.54	1
009	407871419	GASKET 2 LEFT	407871419 GASKET 2 LEFT	$1,098.12	1
010	407871420	GASKET 2 RIGHT	407871420 GASKET 2 RIGHT	$470.44	1
011	407871507	ROD LEFT IN STOCK	407871507 ROD LEFT IN STOCK	$278.90	1
012	407871508	ROD RIGHT IN STOCK	407871508 ROD RIGHT IN STOCK	$278.90	1
013	407871385	TOP CATCH LEFT	407871385 TOP CATCH LEFT	$1,017.48	1
014	407871386	TOP CATCH RIGHT	407871386 TOP CATCH RIGHT	$1,017.48	1
015	407871403	LEVER	407871403 LEVER	$549.72	1
016	N10205802	HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	N10205802 HEXAGON COLLAR NUT SELF-LOCKING IN STOCK	$2.15 MSRP: ~~7.33~~ (70.7% off)	1
017	407959783	LOCKING MOTOR	407959783 LOCKING MOTOR	$1,404.56	1
018	N90986803	HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	N90986803 HEXAGON SOCKET HEAD PANEL BOLT IN STOCK	$1.01	1
019	407971211A	WIRING HARNESS	407971211A WIRING HARNESS	$301.77	1
020	407972383	WIRING SOFT TOP	407972383 WIRING SOFT TOP	$291.01	1
021	407871415	SEAL SOFT TOP 1 FRONT	407871415 SEAL SOFT TOP 1 FRONT	$2,372.29	1
022	407871943	INNERLINING	407871943 INNERLINING	$2,352.15	1
023	407871277	TRIM FRONTHEADER	407871277 TRIM FRONTHEADER	$1,525.54	1
024	407867969	LINING	407867969 LINING	$604.86	1
025	407871157A	STOP MEMBER LEFT	407871157A STOP MEMBER LEFT	$952.95	1
026	407871158A	STOP MEMBER RIGHT	407871158A STOP MEMBER RIGHT	$952.95	1
027	WHT001376	BALL PIN	WHT001376 BALL PIN	$74.35	2
028	N10578901	SCREW M8X20	N10578901 SCREW M8X20	$1.68 MSRP: ~~7.17~~ (76.6% off)	6
029	407810949B	SPACER LEFT (8 MM)	407810949B SPACER LEFT (8 MM)	$61.91	1
029	407810949A	SPACER LEFT (7 MM)	407810949A SPACER LEFT (7 MM)	$58.81	1
029	407810949	SPACER LEFT (6 MM)	407810949 SPACER LEFT (6 MM)	$53.84	1
030	407810950A	SPACER RIGHT (7 MM)	407810950A SPACER RIGHT (7 MM)	$58.81	1
030	407810950B	SPACER RIGHT (8 MM)	407810950B SPACER RIGHT (8 MM)	$61.91	1
030	407810950	SPACER RIGHT (6 MM)	407810950 SPACER RIGHT (6 MM)	$53.84	1
031	407872397	SPACER	407872397 SPACER	$24.47	1
032	407872397	SPACER	407872397 SPACER	$24.47	1
033	WHT002225A	HEXAGON SOCKET HEAD BOLT IN STOCK	WHT002225A HEXAGON SOCKET HEAD BOLT IN STOCK	$1.43 MSRP: ~~7.16~~ (80% off)	6
034	WHT002226A	SCREW M8X10	WHT002226A SCREW M8X10	$1.43 MSRP: ~~7.17~~ (80.1% off)	6
035	400498849A	PLUG IN STOCK	400498849A PLUG IN STOCK	$4.52	1
