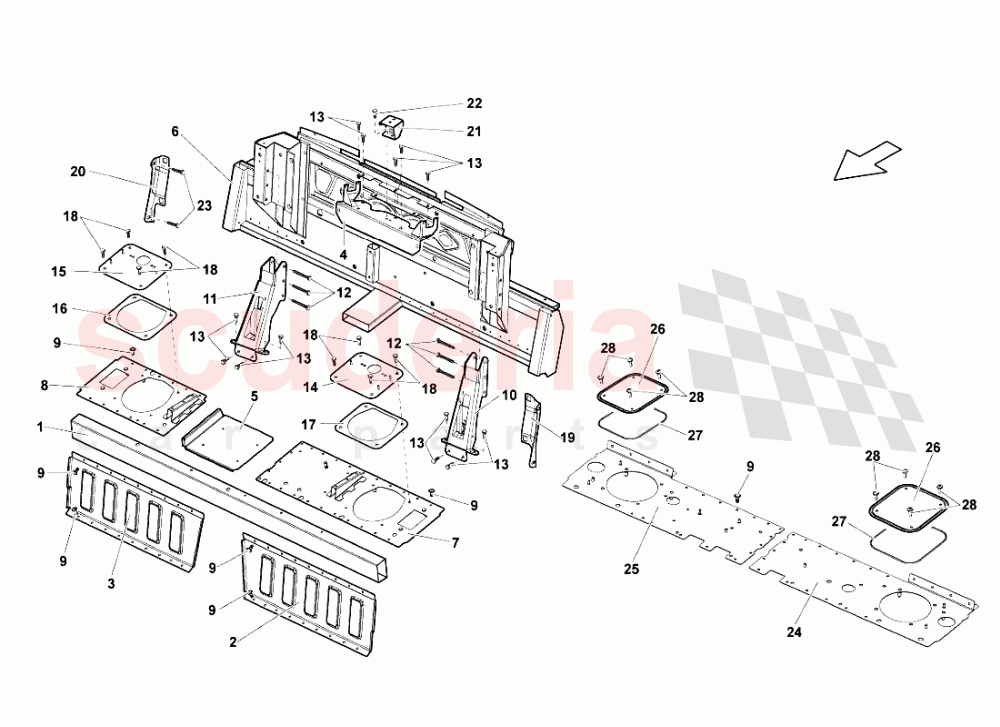

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	407803221	CROSS MEMBER	407803221 CROSS MEMBER	$690.85	1
002	408801403	BOARD	408801403 BOARD	$540.33	1
003	408801404	BOARD	408801404 BOARD	$540.33	1
004	407803145	BRACKET	407803145 BRACKET	$109.28	1
005	400804210A	BOARD	400804210A BOARD	$332.00	1
006	407813467	REAR PANEL	407813467 REAR PANEL	$4,993.26	1
007	407813503	BOARD	407813503 BOARD	$641.14	1
008	407813504	BOARD	407813504 BOARD	$602.16	1
009	N90919302	SCREW M5X18	N90919302 SCREW M5X18	$0.77 MSRP: ~~7.27~~ (89.4% off)	55
010	407803227	LH BRACKET	407803227 LH BRACKET	$325.96	1
011	407803228	RH BRACKET	407803228 RH BRACKET	$325.96	1
012	407813975	SCREW M8X75	407813975 SCREW M8X75	$0.13 MSRP: ~~7.38~~ (98.2% off)	1
013	N91000203	OVAL HEXAGON SOCKET HEAD BOLT	N91000203 OVAL HEXAGON SOCKET HEAD BOLT	$11.56	1
014	407201970F	COVER, LH	407201970F COVER, LH	$263.44	1
015	407201970E	COVER, RH	407201970E COVER, RH	$263.44	1
016	400201621	GASKET	400201621 GASKET	$36.43	1
017	400201621	GASKET	400201621 GASKET	$36.43	1
018	N90847903	Screw M6X15	N90847903 Screw M6X15	$1.16	1
019	407803581	FIXING CORNER	407803581 FIXING CORNER	$176.09	1
020	407803582	FIXING CORNER	407803582 FIXING CORNER	$176.09	1
021	407827876	SUPPORT	407827876 SUPPORT	$29.58	1
022	N90693702	SCREW M5X20	N90693702 SCREW M5X20	$0.58 MSRP: ~~7.32~~ (92.1% off)	2
023	N10347804	HEXAGON SOCKET HEAD BOLT (COMBI)	N10347804 HEXAGON SOCKET HEAD BOLT (COMBI)	$1.68	4
