Lamborghini Gallardo Spyder - Doors 2

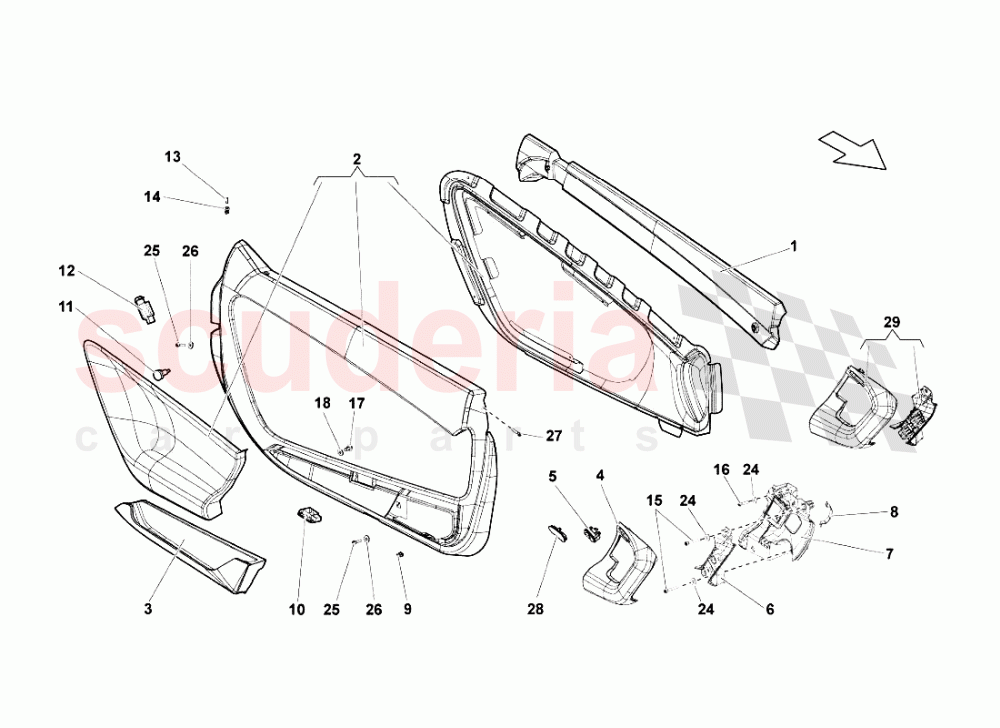

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	1H0837947	SCREW COVER IN STOCK	1H0837947 SCREW COVER IN STOCK	$0.40 MSRP: ~~7.34~~ (94.6% off)	2
002	407831021	DOOR, LH	407831021 DOOR, LH	$12,943.51	1
002	407831022	DOOR, RH	407831022 DOOR, RH	$12,943.51	1
003	407837477	GLASS WEATHERSTRIP, LH	407837477 GLASS WEATHERSTRIP, LH	$182.81	1
003	407837478	GLASS WEATHERSTRIP, RH	407837478 GLASS WEATHERSTRIP, RH	$182.81	1
004	400837498	COUPLING RING, RH	400837498 COUPLING RING, RH	$5.59	1
004	400837497	COUPLING RING, LH	400837497 COUPLING RING, LH	$5.59	1
005	407837912A	DOOR WEATHERSTRIP, OUTER RH	407837912A DOOR WEATHERSTRIP, OUTER RH	$439.51	1
005	407837911A	DOOR WEATHERSTRIP, OUTER LH	407837911A DOOR WEATHERSTRIP, OUTER LH	$439.51	1
006	4E0831402A	HINGE, UPPER RH	4E0831402A HINGE, UPPER RH	$73.40	1
006	4E0831401A	HINGE, UPPER LH	4E0831401A HINGE, UPPER LH	$73.40	1
007	4E0831411C	HINGE, LOWER LH	4E0831411C HINGE, LOWER LH	$108.61	1
007	4E0831412C	HINGE, LOWER RH	4E0831412C HINGE, LOWER RH	$108.61	1
008	8E0837033	LOCK STRIKER	8E0837033 LOCK STRIKER	$24.20	2
009	8E0971841E	BUSHING	8E0971841E BUSHING	$12.64	2
010	8L0837805	INSULATING COVERING	8L0837805 INSULATING COVERING	$4.16	4
011	8L3837199B	CLIP IN STOCK	8L3837199B CLIP IN STOCK	$1.04 MSRP: ~~7.25~~ (85.7% off)	16
012	8L3837947	SCREW COVER IN STOCK	8L3837947 SCREW COVER IN STOCK	$0.40 MSRP: ~~7.34~~ (94.6% off)	2
013	N0902941	SCREW ST4.2X19	N0902941 SCREW ST4.2X19	$0.80 MSRP: ~~7.27~~ (89% off)	6
014	407831707A	LH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831708A)	407831707A LH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831708A)	$404.58	1
014	407831708A	RH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831707A)	407831708A RH DOOR WEATHERSTRIP, INNER (FROM VIN 7LA04649 - WARNING UP TO VIN 7LA04648 USE 407831707A)	$404.58	1
016	WHT001237	HEX SOCKET HEAD COLLARED BOLT IN STOCK	WHT001237 HEX SOCKET HEAD COLLARED BOLT IN STOCK	$1.43 MSRP: ~~7.16~~ (80% off)	4
017	WHT001230	HEXAGON SOCKET HEAD BOLT IN STOCK	WHT001230 HEXAGON SOCKET HEAD BOLT IN STOCK	$4.10	4
018	N91060501	SCREW M8X130X80	N91060501 SCREW M8X130X80	$54.26	4
019	8H0831701	HEX SOCKET HEAD COLLARED BOLT	8H0831701 HEX SOCKET HEAD COLLARED BOLT	$1.96 MSRP: ~~7.07~~ (72.3% off)	2
020	400863980	RH INSULATION	400863980 RH INSULATION	$2,063.17	1
020	400863979	LH INSULATION	400863979 LH INSULATION	$2,063.17	1
021	8P3959845A	SHEATH	8P3959845A SHEATH	$9.48	2
022	400863052	RH COVER	400863052 RH COVER	$5.59	1
022	400863051	LH COVER	400863051 LH COVER	$5.59	1
023	407837173A	SCREW	407837173A SCREW	$69.12	6
024	407868382	GASKET	407868382 GASKET	$38.38	2
025	N90107607	WASHER IN STOCK	N90107607 WASHER IN STOCK	$1.03 MSRP: ~~7.22~~ (85.7% off)	4
026	N90900401	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90900401 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$1.25	4
027	N90807405	HEX SOCKET OVAL HEAD COLLARED IN STOCK	N90807405 HEX SOCKET OVAL HEAD COLLARED IN STOCK	$0.64	2
