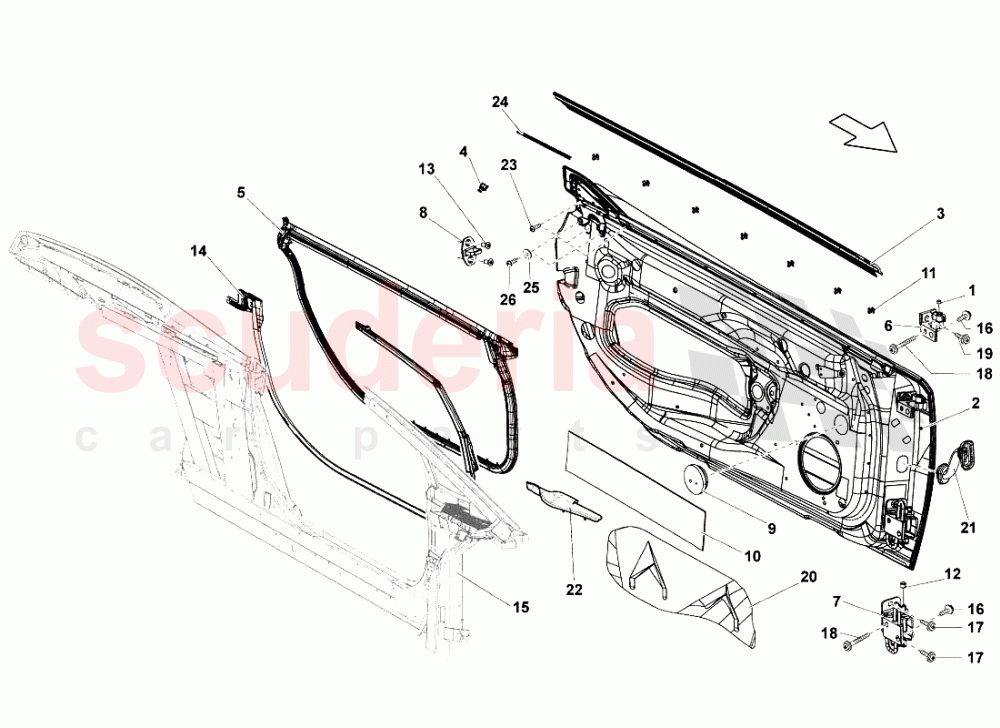

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
002	400837085	BOWDEN CABLE	400837085 BOWDEN CABLE	$192.20	2
003	400837133A	LEFT DOOR LOCK CONTROL BAR	400837133A LEFT DOOR LOCK CONTROL BAR	$40.26	1
003	400837134A	RIGHT DOOR LOCK CONTROL BAR	400837134A RIGHT DOOR LOCK CONTROL BAR	$40.26	1
008	4B0837109B	LATCH	4B0837109B LATCH	$7.16	2
009	4B0857179	KEY	4B0857179 KEY	$2.23 MSRP: ~~7.04~~ (68.3% off)	2
010	401837016	DOOR LOCK RIGHT (DOUBLE LOCK)	401837016 DOOR LOCK RIGHT (DOUBLE LOCK)	$266.81	1
010	401837015	DOOR LOCK LEFT (DOUBLE LOCK)	401837015 DOOR LOCK LEFT (DOUBLE LOCK)	$266.81	1
011	893839821	ARTICULATED RING	893839821 ARTICULATED RING	$0.97 MSRP: ~~7.26~~ (86.6% off)	2
012	8E0837087D	REINFORCEMENT	8E0837087D REINFORCEMENT	$4.71	2

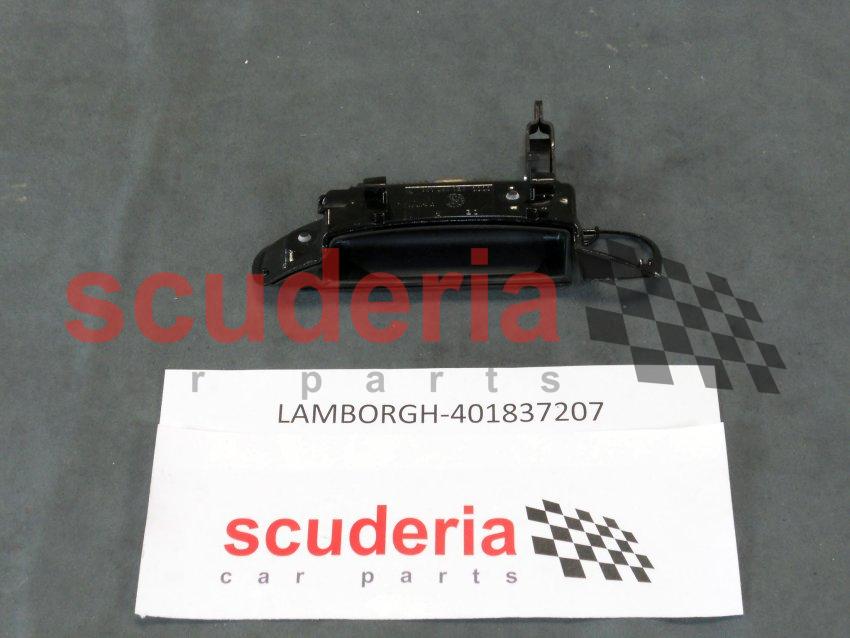

013	401837207	DOOR HANDLE	401837207 DOOR HANDLE	$105.10	1
014	401837885	BRACKET	401837885 BRACKET	$99.46	1
015	400839240	DOOR HANDLE ORNAMENT	400839240 DOOR HANDLE ORNAMENT	$2,009.42	1
016	4B0839885	BRACKET	4B0839885 BRACKET	$55.91	1
017	400839208	DOOR HANDLE EXTERNAL	400839208 DOOR HANDLE EXTERNAL	$110.76	1

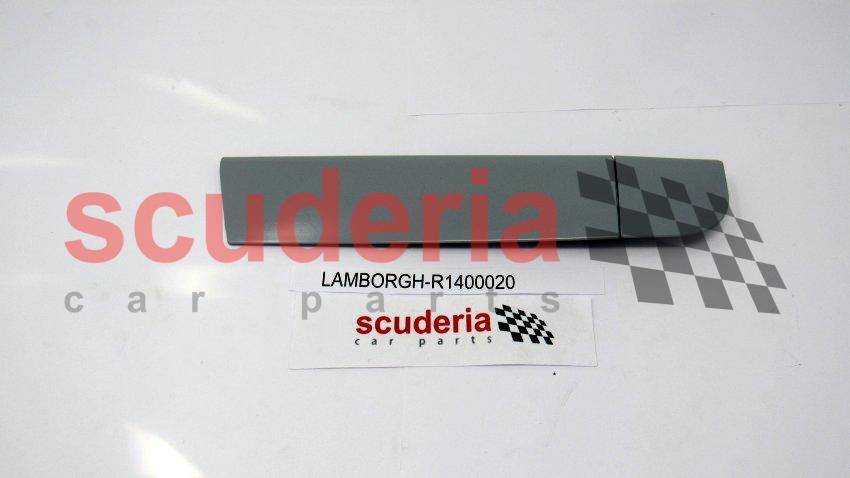

018	R1400020	LHD Door Handle Ornament Kit	R1400020 LHD Door Handle Ornament Kit	$502.57	1
019	N91033702	SCREW M8X20	N91033702 SCREW M8X20	$4.23	4
