Front Arms of Lamborghini Lamborghini Gallardo Spyder

View All

Lamborghini Gallardo Spyder - Front Arms

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	N90323706	NUT M12X1,50	N90323706 NUT M12X1,50	-	1	Enquire
002	400407506B	RH UPPER ARM	400407506B RH UPPER ARM	-	1	Enquire
002	400407505B	LH UPPER ARM	400407505B LH UPPER ARM	-	1	Enquire
003	N90226404	HEXAGON COLLAR NUT SELF-LOCKING	N90226404 HEXAGON COLLAR NUT SELF-LOCKING	-	16	Enquire
004	N91062101	STUD BOLT	N91062101 STUD BOLT	-	8	Enquire
007	4D0411327J	RUBBER BUSH	4D0411327J RUBBER BUSH	-	2	Enquire
008	400411309C	FRONT STABILIZER BAR	400411309C FRONT STABILIZER BAR	-	1	Enquire
010	400407379B	1.5 MM SHIM	400407379B 1.5 MM SHIM	-	16	Enquire
010	400407379F	0.3 MM SHIM	400407379F 0.3 MM SHIM	-	16	Enquire
010	400407379E	3 MM SHIM	400407379E 3 MM SHIM	-	16	Enquire
010	400407379	0.5 MM SHIM	400407379 0.5 MM SHIM	-	16	Enquire
010	400407379D	2.5 MM SHIM	400407379D 2.5 MM SHIM	-	16	Enquire
010	400407379A	1 MM SHIM	400407379A 1 MM SHIM	-	16	Enquire
010	400407379C	2 MM SHIM	400407379C 2 MM SHIM	-	16	Enquire
011	400407313	JOURNAL	400407313 JOURNAL	-	1	Enquire
012	N10699401	HEXAGON BOLT M10 X 50	N10699401 HEXAGON BOLT M10 X 50	-	4	Enquire
013	N10049308	HEXAGON HEAD BOLT (COMBI)	N10049308 HEXAGON HEAD BOLT (COMBI)	-	4	Enquire
014	400411317C	RH CONNECTING ROD	400411317C RH CONNECTING ROD	-	4	Enquire
015	N10713801	SCREW M6X16	N10713801 SCREW M6X16	-	4	Enquire
016	400411031N	U-BOLT (RIGHT-HAND)	400411031N U-BOLT (RIGHT-HAND)	-	2	Enquire
017	4D0411336G	CLAMP	4D0411336G CLAMP	-	2	Enquire
018	N91062001	STUD BOLT	N91062001 STUD BOLT	-	8	Enquire
019	N90323706	NUT M12X1,50	N90323706 NUT M12X1,50	-	4	Enquire

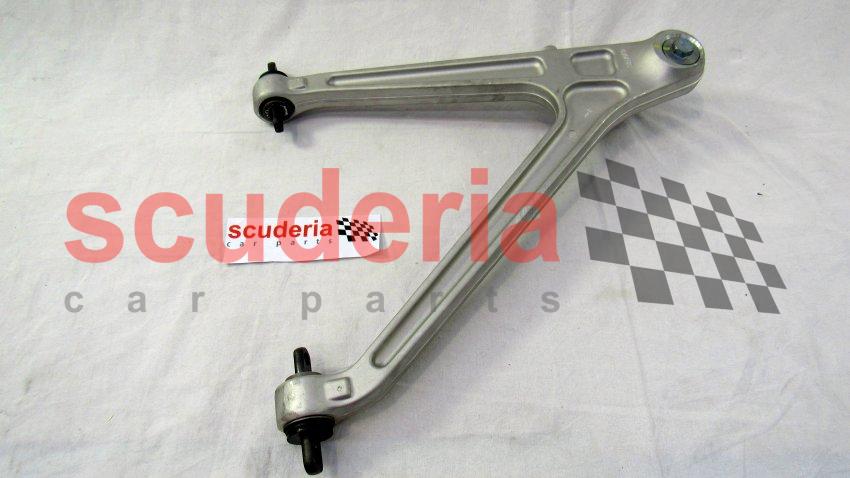

020	400407152B	RH Lower Arm	400407152B RH Lower Arm	-	1	Enquire

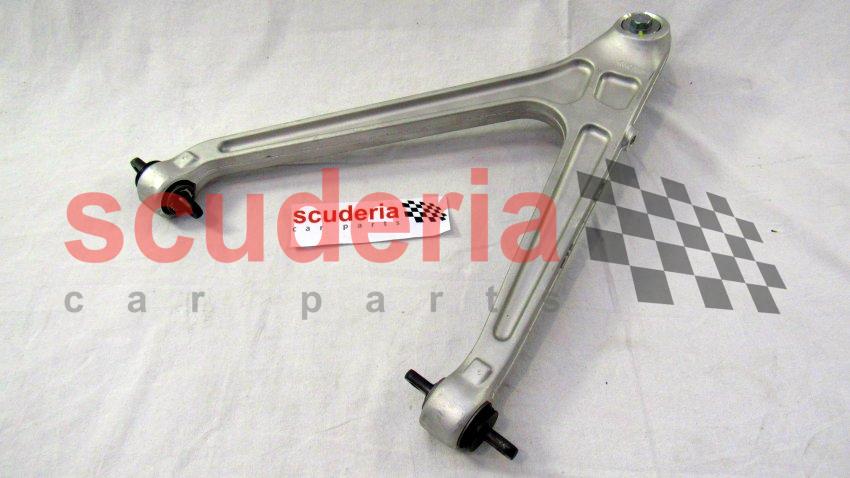

020	400407151B	LH Lower Arm	400407151B LH Lower Arm	-	1	Enquire
021	400407171B	BUSHING	400407171B BUSHING	-	2	Enquire
022	400505179B	SPACER	400505179B SPACER	-	2	Enquire
023	400419121A	BUSHING	400419121A BUSHING	-	1	Enquire

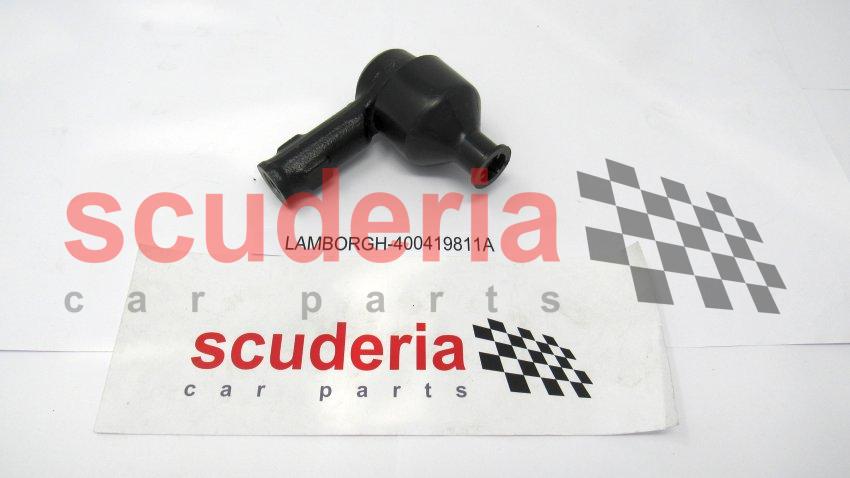

024	400419811A	Ball Joint Coupling	400419811A Ball Joint Coupling	-	2	Enquire
025	400411317B	LH CONNECTING ROD	400411317B LH CONNECTING ROD	-	1	Enquire
026	WHT000915	NUT	WHT000915 NUT	-	2	Enquire
027	WHT000919	WASHER	WHT000919 WASHER	-	2	Enquire
