Lights 1

Lamborghini Gallardo (2003-2005)

Find Your Part

Lamborghini Gallardo (2003-2005) - Lights 1

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
400959645 SOUND ABSORBER PIECE $1.34 To Order
Photo Part No Description Price (each) Stock
402941003B LH HEADLIGHT $5,416.66 To Order
Photo Part No Description Price (each) Stock
402941004B RH HEADLIGHT $5,416.66 To Order
Photo Part No Description Price (each) Stock
N0116946 WASHER $0.42 To Order
Photo Part No Description Price (each) Stock
N01508213 HEXAGON COLLAR NUT $0.21 IN STOCK
Photo Part No Description Price (each) Stock
N10445502 BULB H6W-12V6W $16.60 To Order
Photo Part No Description Price (each) Stock
N0230038 NUT $0.40 To Order
Photo Part No Description Price (each) Stock
N0903164 SCREW M8X30 $0.68 To Order
Photo Part No Description Price (each) Stock
N10338302 SCREW M5X12 $0.61 IN STOCK
Photo Part No Description Price (each) Stock
N10338901 SCREW $0.77 To Order
Photo Part No Description Price (each) Stock
N10445601 LAMP 12V 21W BAY9S $26.74 IN STOCK
Photo Part No Description Price (each) Stock
N10445703 LAMP 12V 35W P32D-2 $172.46 IN STOCK
Photo Part No Description Price (each) Stock
N90847903 Screw M6X15 $1.16 IN STOCK
Photo Part No Description Price (each) Stock
3B0941641 FRONT HEADLIGHT CONTROL UNIT $1,592.73 To Order
Photo Part No Description Price (each) Stock
N10709301 SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD $0.82 IN STOCK
Photo Part No Description Price (each) Stock
400998003 CONNECTOR $2.35 To Order
Photo Part No Description Price (each) Stock
N0116974 WASHER $0.80 To Order
View All

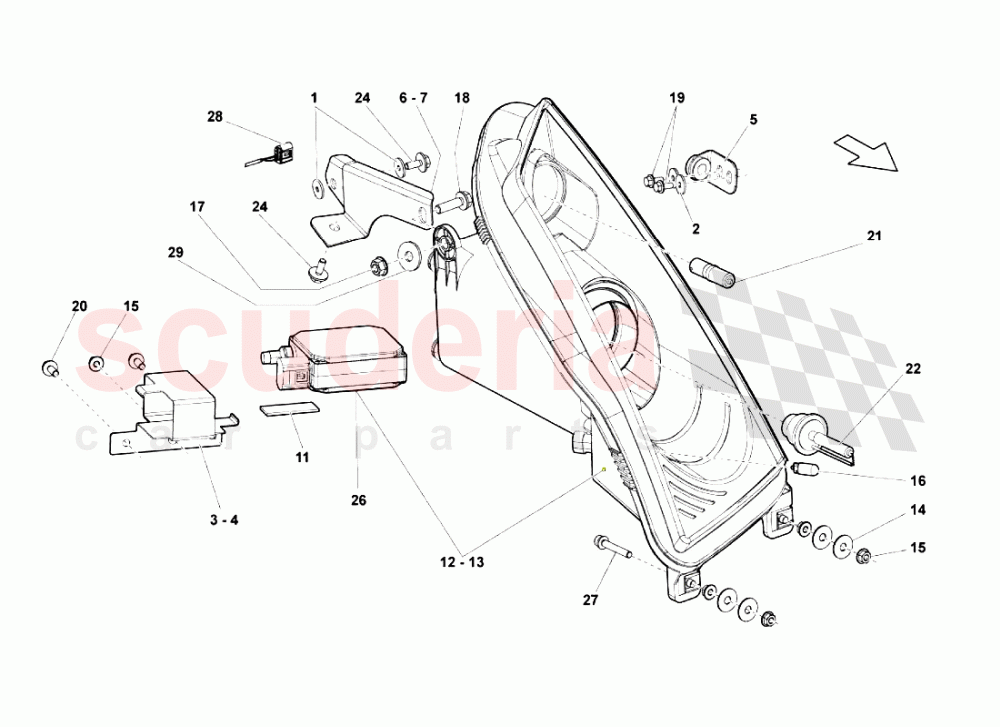

Lights 1 of Lamborghini Lamborghini Gallardo (2003-2005) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 410407295
1.0 MM ADJUSTMENT SHIM 		$4.52 8
02 WHT000778
WASHER
IN STOCK 		$0.64 10
03 400907461
BALLAST CONTROL UNIT SUPPORT BRACKET, LH 		$21.99 1
04 400907462
BALLAST CONTROL UNIT SUPPORT BRACKET, RH 		$21.99 1
05 400941455
SUPPORT 		$138.47 2
06 400941613
LH HEADLIGHT REAR FIXING BRACKET 		$86.02 1
07 400941614
RH HEADLIGHT REAR FIXING BRACKET 		$86.02 1
10 400955487
THICKNESS 		$36.09 4
11 400959645
SOUND ABSORBER PIECE 		$1.34 (81.3% off) 2
12 402941003B
LH HEADLIGHT
(RHD model) 		$5,416.66 1
13 402941004B
RH HEADLIGHT
(RHD model) 		$5,416.66 1
14 N0116946
WASHER 		$0.42 8
15 N01508213
HEXAGON COLLAR NUT
IN STOCK 		$0.21 14
16 N10445502
BULB H6W-12V6W 		$16.60 2
17 N0230038
NUT 		$0.40 2
18 N0903164
SCREW M8X30 		$0.68 2
19 N10338302
SCREW M5X12
IN STOCK 		$0.61 (91.6% off) 4
20 N10338901
SCREW 		$0.77 (89.4% off) 4
21 N10445601
LAMP 12V 21W BAY9S
IN STOCK 		$26.74 2
22 N10445703
LAMP 12V 35W P32D-2
IN STOCK 		$172.46 2
24 N90847903
Screw M6X15
IN STOCK 		$1.16 2
25 N91045401
CLAMP 		$0.58 2
26 3B0941641
FRONT HEADLIGHT CONTROL UNIT 		$1,592.73 2
27 N10709301
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD
IN STOCK 		$0.82 4
28 400998003
CONNECTOR 		$2.35 2
29 N0116974
WASHER 		$0.80 4
