Rear Fender

Find Your Part

Lamborghini Gallardo (2003-2005) - Rear Fender

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
400827967A GRID, LH $489.25 To Order
400827968A GRID, RH $489.25 To Order
Photo Part No Description Price (each) Stock
400827994B SIDE COVER, RH $1,370.98 To Order
400827993B SIDE COVER, LH $1,370.98 To Order
8J469820 Carbon rear grills set Enquire To Order
Photo Part No Description Price (each) Stock
400972081 FLEXIBLE SUPPORT $12.32 To Order
Photo Part No Description Price (each) Stock
N150825 NUT Enquire To Order
Photo Part No Description Price (each) Stock
N0154487 SPEED NUT $0.53 To Order
Photo Part No Description Price (each) Stock
N90986803 HEXAGON SOCKET HEAD PANEL BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
400807707B FENDER ADJUSTMENT BRACKET, INNER $55.37 To Order
Photo Part No Description Price (each) Stock
400810239B FENDER ADJUSTMENT BRACKET, OUTER $28.32 To Order
Photo Part No Description Price (each) Stock
400827341 GASKET $6.52 To Order
Photo Part No Description Price (each) Stock
N90986803 HEXAGON SOCKET HEAD PANEL BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
WHT000778 WASHER $0.64 To Order
Photo Part No Description Price (each) Stock
N90881601 RIVET $0.30 To Order
Photo Part No Description Price (each) Stock
N0154487 SPEED NUT $0.53 To Order
Photo Part No Description Price (each) Stock
N90986803 HEXAGON SOCKET HEAD PANEL BOLT $1.01 To Order
Photo Part No Description Price (each) Stock
N10609202 HEXAGON COLLAR NUT $0.37 To Order
Photo Part No Description Price (each) Stock
N10448504 SCREW M6X16 $0.51 To Order
Photo Part No Description Price (each) Stock
N1508213 NUT M6 Enquire To Order
View All

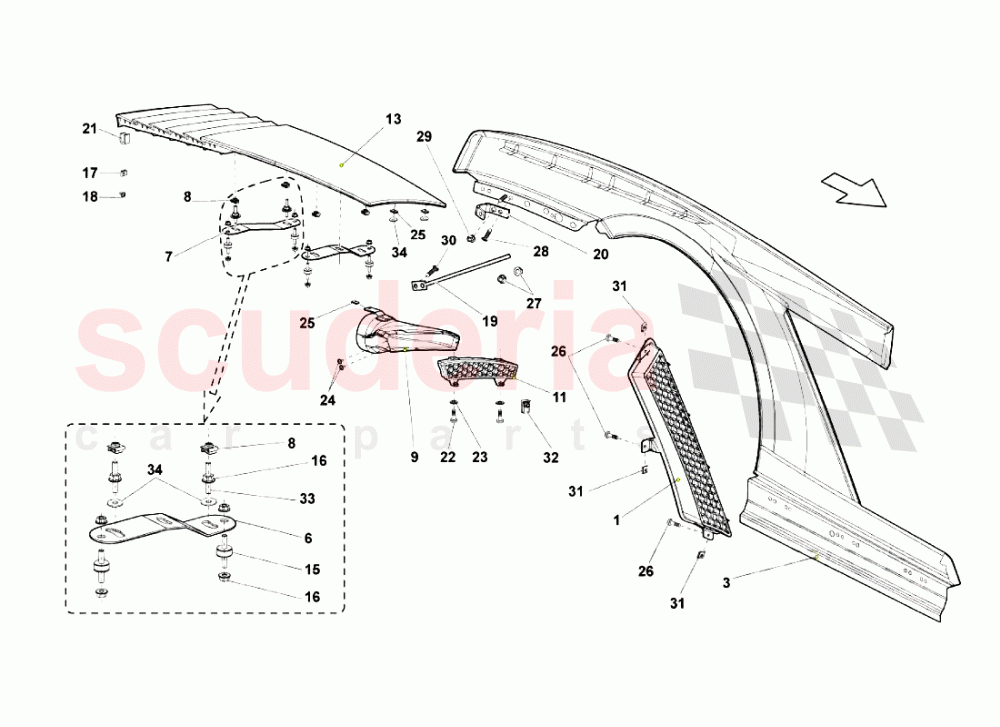

Rear Fender of Lamborghini Lamborghini Gallardo (2003-2005) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
01 400317115
AIR INTAKE GRID, LH 		$603.51 1
01 400317116
AIR INTAKE GRID, RH 		$603.51 1
03 408809604A
REAR FENDER, RH 		$14,919.30 1
06 400827605
SIDE COVER FASTENER 		$59.01 2
07 400827606
SIDE COVER FASTENER 		$47.80 2
08 N90327506
SPEED NUT 		$0.94 8
09 408827923
ENGINE AIR CONVEYOR, LH 		$323.25 1
09 408827924
ENGINE AIR CONVEYOR, RH 		$1,131.73 1
11 400827967A
GRID, LH 		$489.25 1
11 400827968A
GRID, RH 		$489.25 1
13 400827994B
SIDE COVER, RH 		$1,370.98 1
13 400827993B
SIDE COVER, LH 		$1,370.98 1
13 8J469820
Carbon rear grills set
(Tubi Style) 		- 1 Enquire
15 400972081
FLEXIBLE SUPPORT 		$12.32 8
16 N150825
NUT 		- 16 Enquire
17 N0154487
SPEED NUT 		$0.53 6
18 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 6
19 400807707B
FENDER ADJUSTMENT BRACKET, INNER 		$55.37 2
20 400810239B
FENDER ADJUSTMENT BRACKET, OUTER 		$28.32 2
21 400827341
GASKET 		$6.52 4
22 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 4
23 WHT000778
WASHER 		$0.64 4
24 N90881601
RIVET 		$0.30 (95.9% off) 6
25 N0154487
SPEED NUT 		$0.53 6
26 N90986803
HEXAGON SOCKET HEAD PANEL BOLT 		$1.01 6
27 N10609202
HEXAGON COLLAR NUT 		$0.37 4
28 N10448504
SCREW M6X16 		$0.51 (93% off) 2
29 N1508213
NUT M6 		- 2 Enquire
