Find Your Part

Doors 3 of Lamborghini Lamborghini Gallardo (2003-2005)

View All

Lamborghini Gallardo (2003-2005) - Doors 3

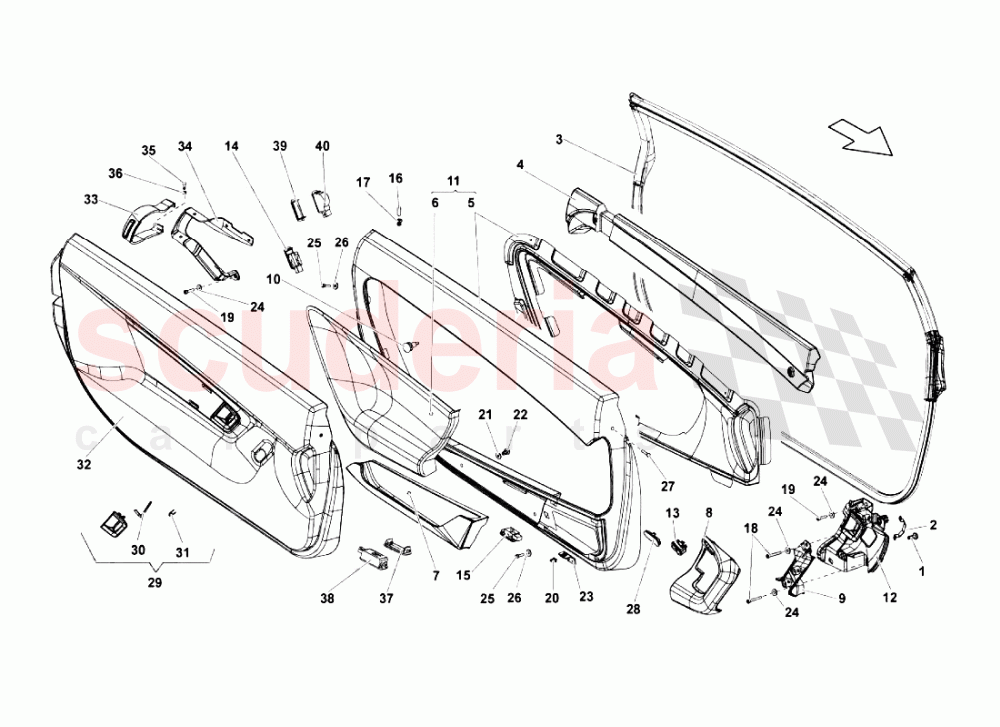

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400867299	FASTENER LYS FUSION, YELLOW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402867105G	Door Panel (supply Vin-left Rhd)	Enquire	To Order
	402867106H	Door Panel (supply Vin-right Rhd)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400868100F	INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	Enquire	To Order
	400868099C	INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	Enquire	To Order
	400868099F	INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0947411	DOOR CLEARANCE LIGHT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0947415A	LUGGAGE COMPARTMENT LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8N0919238	WARNING LAMP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	8Z0919424A4PK	SLEEVE DWA	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10613801	SCREW M 5X55.0	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10544302	SCREW M5X25	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90526602	SPEED NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT002961	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400867160A	RH BRACKET	Enquire	To Order
	400867159A	LH BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N1154012	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT003111	SCREW M5X16	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WHT000778	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10621601	HEX SOCKET OVAL HEAD COLLARED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	402837232C	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	WHT000767	SCREW	WHT000767 SCREW	-	4	Enquire
02	400035243	TWEETER SUPPORT BRACKET	400035243 TWEETER SUPPORT BRACKET	-	2	Enquire
03	400831708	RIGHT DOOR WEATHERSTRIP, INNER	400831708 RIGHT DOOR WEATHERSTRIP, INNER	-	1	Enquire
03	400831707	LEFT DOOR WEATHERSTRIP, INNER	400831707 LEFT DOOR WEATHERSTRIP, INNER	-	1	Enquire
04	400837968A	DOOR CRASH PAD	400837968A DOOR CRASH PAD	-	1	Enquire
04	400837967A	DOOR CRASH PAD	400837967A DOOR CRASH PAD	-	1	Enquire
07	400867132B	POCKET (SUPPLY VIN)	400867132B POCKET (SUPPLY VIN)	-	1	Enquire
07	400867131B	POCKET (SUPPLY VIN)	400867131B POCKET (SUPPLY VIN)	-	1	Enquire
08	400867171B	LH HANDLE UPPER PORTION	400867171B LH HANDLE UPPER PORTION	-	1	Enquire
08	400867171E	LH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867171E LH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
08	400867172D	RH HANDLE UPPER PORTION (CARBON INTERIOR)	400867172D RH HANDLE UPPER PORTION (CARBON INTERIOR)	-	1	Enquire
08	400867172E	RH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867172E RH HANDLE UPPER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
08	400867172B	RH HANDLE UPPER PORTION	400867172B RH HANDLE UPPER PORTION	-	1	Enquire
08	400867171D	LH HANDLE UPPER PORTION (CARBON INTERIOR)	400867171D LH HANDLE UPPER PORTION (CARBON INTERIOR)	-	1	Enquire
09	400867196D	RH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867196D RH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
09	400867195C	LH HANDLE CENTER PORTION (CARBON INTERIOR)	400867195C LH HANDLE CENTER PORTION (CARBON INTERIOR)	-	1	Enquire
09	400867195B	LH HANDLE CENTER PORTION	400867195B LH HANDLE CENTER PORTION	-	1	Enquire
09	400867195D	LH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	400867195D LH HANDLE CENTER PORTION (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
09	400867196C	RH HANDLE CENTER PORTION (CARBON INTERIOR)	400867196C RH HANDLE CENTER PORTION (CARBON INTERIOR)	-	1	Enquire
09	400867196B	RH HANDLE CENTER PORTION	400867196B RH HANDLE CENTER PORTION	-	1	Enquire
10	400867299	FASTENER LYS FUSION, YELLOW	400867299 FASTENER LYS FUSION, YELLOW	-	4	Enquire
11	402867105G	Door Panel (supply Vin-left Rhd)	402867105G Door Panel (supply Vin-left Rhd)	-	1	Enquire
11	402867106H	Door Panel (supply Vin-right Rhd)	402867106H Door Panel (supply Vin-right Rhd)	-	1	Enquire
12	400868100F	INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	400868100F INNER HANDLE WITH GRID RH (DECORATIVE INSERTS - SUPPLY VIN)	-	1	Enquire
12	400868099C	INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868099C INNER HANDLE WITH GRID LH (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
12	400868099F	INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	400868099F INNER HANDLE WITH GRID LH (DECORATIVE INSERTS - SUPPLY VIN)	-	1	Enquire
12	400868099D	INNER HANDLE WITH GRID LH (CARBON INTERIOR)	400868099D INNER HANDLE WITH GRID LH (CARBON INTERIOR)	-	1	Enquire
12	400868100D	INNER HANDLE WITH GRID RH (CARBON INTERIOR)	400868100D INNER HANDLE WITH GRID RH (CARBON INTERIOR)	-	1	Enquire
12	400868100C	INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	400868100C INNER HANDLE WITH GRID RH (LEATHER UPHOLSTERY - SUPPLY VIN)	-	1	Enquire
12	400868100B	INNER HANDLE WITH GRID RH	400868100B INNER HANDLE WITH GRID RH	-	1	Enquire
12	400868099B	INNER HANDLE WITH GRID LH	400868099B INNER HANDLE WITH GRID LH	-	1	Enquire
13	400962107A	DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	400962107A DOOR LOCK/UNLOCK SWITCH (WITH SERIGRAPHY)	-	2	Enquire
14	4B0947411	DOOR CLEARANCE LIGHT	4B0947411 DOOR CLEARANCE LIGHT	-	2	Enquire
15	4B0947415A	LUGGAGE COMPARTMENT LAMP	4B0947415A LUGGAGE COMPARTMENT LAMP	-	2	Enquire
16	8N0919238	WARNING LAMP	8N0919238 WARNING LAMP	-	1	Enquire
17	8Z0919424A4PK	SLEEVE DWA	8Z0919424A4PK SLEEVE DWA	-	2	Enquire
18	N10613801	SCREW M 5X55.0	N10613801 SCREW M 5X55.0	-	4	Enquire
19	N10544302	SCREW M5X25	N10544302 SCREW M5X25	-	2	Enquire
20	N90526602	SPEED NUT	N90526602 SPEED NUT	-	2	Enquire
21	WHT002961	WASHER	WHT002961 WASHER	-	4	Enquire
22	N10586401	OVAL HEXAGON SOCKET HEAD BOLT	N10586401 OVAL HEXAGON SOCKET HEAD BOLT	-	4	Enquire
23	400867160A	RH BRACKET	400867160A RH BRACKET	-	1	Enquire
23	400867159A	LH BRACKET	400867159A LH BRACKET	-	1	Enquire
24	N1154012	WASHER	N1154012 WASHER	-	6	Enquire
25	WHT003111	SCREW M5X16	WHT003111 SCREW M5X16	-	2	Enquire
26	WHT000778	WASHER	WHT000778 WASHER	-	2	Enquire
27	N10621601	HEX SOCKET OVAL HEAD COLLARED	N10621601 HEX SOCKET OVAL HEAD COLLARED	-	2	Enquire
28	402837232C	PLUG	402837232C PLUG	-	1	Enquire
