Center Frame Elements 1 of Lamborghini Lamborghini Gallardo (2003-2005)

View All

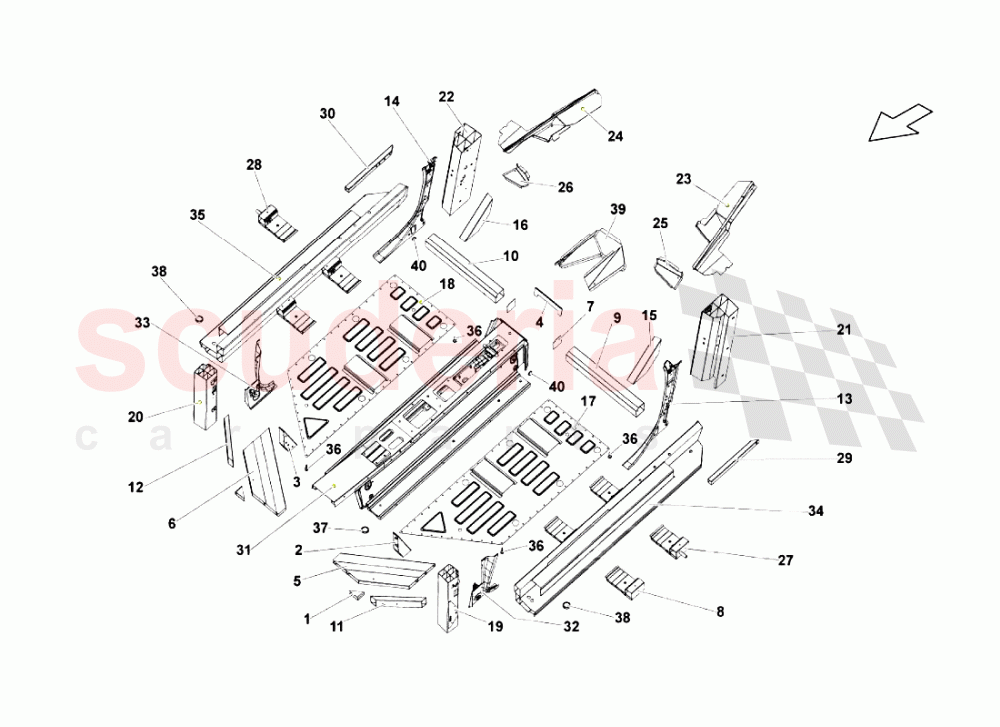

Lamborghini Gallardo (2003-2005) - Center Frame Elements 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400803292	CROSS MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400805861	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400805862	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809223	C A-PILLAR, INSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809224	C A-PILLAR, INSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809971	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809972	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408803061	BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408803062	BOARD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408809205	A A-PILLAR, INFERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408809206	A A-PILLAR, INFERIOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408809221	B A-PILLAR, OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408809222	B A-PILLAR, OUTSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408810205	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408810206	SUPPORT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408813567	LH ANGLE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408813568	RH ANGLE PIECE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400803151F	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400803152F	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809321A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	400809322A	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408802061F	FLOOR,CENTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408802125A	A A-PILLAR, INSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408802126A	A A-PILLAR, INSIDE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408802255F	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	408802256F	SIDE MEMBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90919302	SCREW M5X18	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	811803583C	PLUG D = 32,5	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4E0804297	PLUG D = 30	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N10249701	PLUG D = 18	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400802451	SUPPORT	400802451 SUPPORT	-	2	Enquire
02	400802725	SUPPORT	400802725 SUPPORT	-	1	Enquire
03	400802726	SUPPORT	400802726 SUPPORT	-	1	Enquire
04	400802853	SHEET	400802853 SHEET	-	1	Enquire
05	400803033	SIDE MEMBER	400803033 SIDE MEMBER	-	1	Enquire
06	400803034	SIDE MEMBER	400803034 SIDE MEMBER	-	1	Enquire
07	400803177	SHEET	400803177 SHEET	-	2	Enquire
08	400803243	BRACKET	400803243 BRACKET	-	1	Enquire
09	400803291	CROSS MEMBER	400803291 CROSS MEMBER	-	1	Enquire
10	400803292	CROSS MEMBER	400803292 CROSS MEMBER	-	1	Enquire
11	400805861	SIDE MEMBER	400805861 SIDE MEMBER	-	1	Enquire
12	400805862	SIDE MEMBER	400805862 SIDE MEMBER	-	1	Enquire
13	400809223	C A-PILLAR, INSIDE	400809223 C A-PILLAR, INSIDE	-	1	Enquire
14	400809224	C A-PILLAR, INSIDE	400809224 C A-PILLAR, INSIDE	-	1	Enquire
15	400809971	BRACKET	400809971 BRACKET	-	1	Enquire
16	400809972	BRACKET	400809972 BRACKET	-	1	Enquire
17	408803061	BOARD	408803061 BOARD	-	1	Enquire
18	408803062	BOARD	408803062 BOARD	-	1	Enquire
19	408809205	A A-PILLAR, INFERIOR	408809205 A A-PILLAR, INFERIOR	-	1	Enquire
20	408809206	A A-PILLAR, INFERIOR	408809206 A A-PILLAR, INFERIOR	-	1	Enquire
21	408809221	B A-PILLAR, OUTSIDE	408809221 B A-PILLAR, OUTSIDE	-	1	Enquire
22	408809222	B A-PILLAR, OUTSIDE	408809222 B A-PILLAR, OUTSIDE	-	1	Enquire
23	408810205	SUPPORT	408810205 SUPPORT	-	1	Enquire
24	408810206	SUPPORT	408810206 SUPPORT	-	1	Enquire
25	408813567	LH ANGLE PIECE	408813567 LH ANGLE PIECE	-	1	Enquire
26	408813568	RH ANGLE PIECE	408813568 RH ANGLE PIECE	-	1	Enquire
27	400803151F	BRACKET	400803151F BRACKET	-	1	Enquire
28	400803152F	BRACKET	400803152F BRACKET	-	1	Enquire
29	400809321A	BRACKET	400809321A BRACKET	-	1	Enquire
30	400809322A	BRACKET	400809322A BRACKET	-	1	Enquire
31	408802061F	FLOOR,CENTER	408802061F FLOOR,CENTER	-	1	Enquire
32	408802125A	A A-PILLAR, INSIDE	408802125A A A-PILLAR, INSIDE	-	1	Enquire
33	408802126A	A A-PILLAR, INSIDE	408802126A A A-PILLAR, INSIDE	-	1	Enquire
34	408802255F	SIDE MEMBER	408802255F SIDE MEMBER	-	1	Enquire
35	408802256F	SIDE MEMBER	408802256F SIDE MEMBER	-	1	Enquire
36	N90919302	SCREW M5X18	N90919302 SCREW M5X18	-	54	Enquire
37	811803583C	PLUG D = 32,5	811803583C PLUG D = 32,5	-	3	Enquire
38	4E0804297	PLUG D = 30	4E0804297 PLUG D = 30	-	13	Enquire
40	N10249701	PLUG D = 18	N10249701 PLUG D = 18	-	5	Enquire
