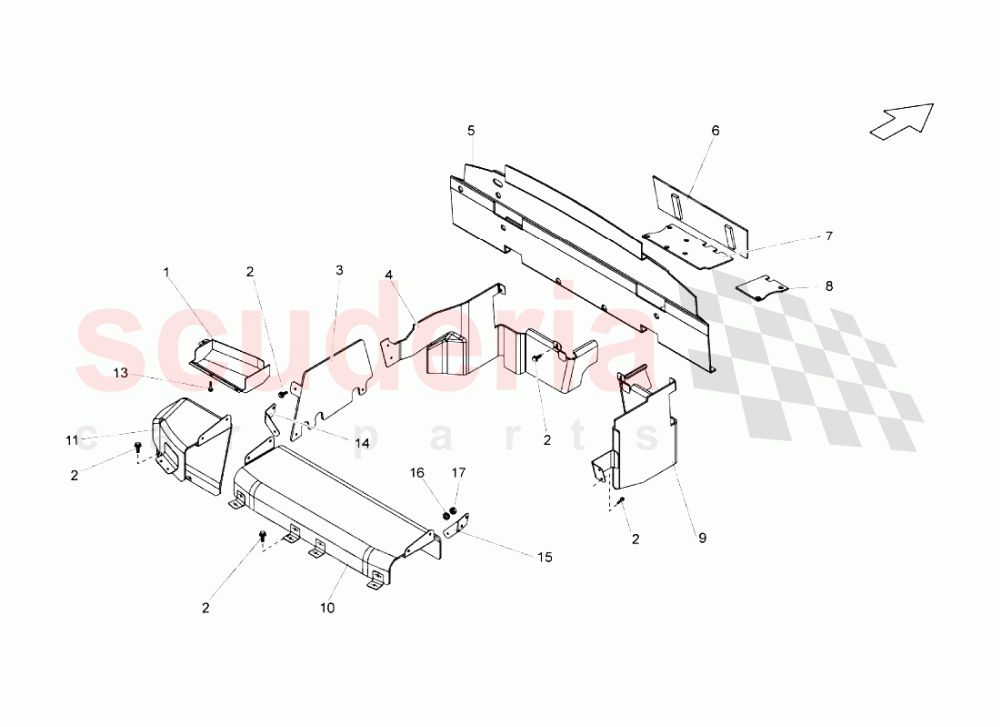

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	400251413	PROTECTION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	N90847903	Screw M6X15	Enquire	To Order

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
01	400103755	PROTECTION	400103755 PROTECTION	-	1	Enquire
02	N90847903	Screw M6X15	N90847903 Screw M6X15	-	8	Enquire
03	400501716	LH PANEL	400501716 LH PANEL	-	1	Enquire
03	400501715	RH PANEL	400501715 RH PANEL	-	1	Enquire
04	400201783	LH PANEL	400201783 LH PANEL	-	1	Enquire
05	400103747	FIREPROOF SHIELD	400103747 FIREPROOF SHIELD	-	1	Enquire
06	400103754	RH PANEL	400103754 RH PANEL	-	1	Enquire
06	400103753	LH PANEL	400103753 LH PANEL	-	1	Enquire
07	400103749	LH PANEL	400103749 LH PANEL	-	1	Enquire
08	400103750	RH PANEL	400103750 RH PANEL	-	1	Enquire
09	400201782	RH PANEL	400201782 RH PANEL	-	1	Enquire
10	400251413	PROTECTION	400251413 PROTECTION	-	1	Enquire
11	7L251384	RH COVER	7L251384 RH COVER	-	1	Enquire
11	7L251383	LH COVER	7L251383 LH COVER	-	1	Enquire
13	N90847903	Screw M6X15	N90847903 Screw M6X15	-	3	Enquire
