Name: Doors 2
Rating: 4.0 (1 reviews)

View All

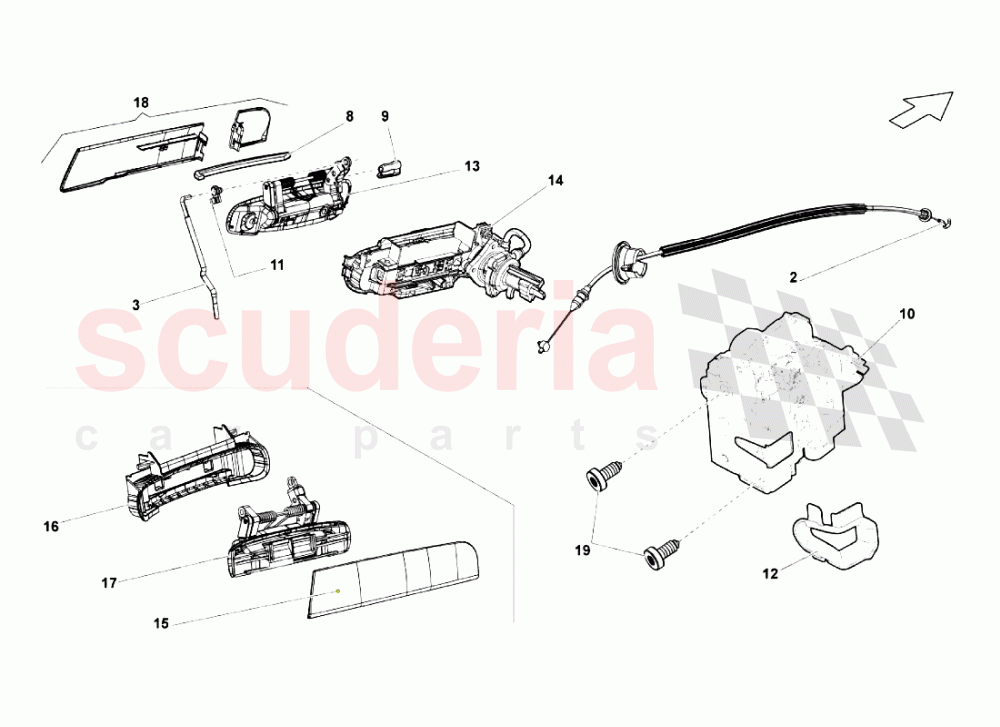

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	893839821	ARTICULATED RING	$0.97	To Order

Photo	Part No	Description	Price (each)	Stock
	8E0837087D	REINFORCEMENT	$4.71	To Order

Photo	Part No	Description	Price (each)	Stock
	402837208	DOOR HANDLE	$105.10	To Order

Photo	Part No	Description	Price (each)	Stock
	402837886	BRACKET	$99.46	To Order

Photo	Part No	Description	Price (each)	Stock
	400839239	LH DOOR HANDLE TRIM PLATE	$2,804.38	To Order

Photo	Part No	Description	Price (each)	Stock
	4B0839885	BRACKET	$55.91	To Order

Photo	Part No	Description	Price (each)	Stock
	400839207	DOOR HANDLE	$110.76	To Order

Photo	Part No	Description	Price (each)	Stock
	R1400021	RH Cover/Door Handle Ornament Kit	$749.99	To Order

Photo	Part No	Description	Price (each)	Stock
	N91033702	SCREW M8X20	$4.23	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
02	400837085	BOWDEN CABLE	400837085 BOWDEN CABLE	$192.20	2
03	400837134A	RIGHT DOOR LOCK CONTROL BAR	400837134A RIGHT DOOR LOCK CONTROL BAR	$40.26	1
03	400837133A	LEFT DOOR LOCK CONTROL BAR	400837133A LEFT DOOR LOCK CONTROL BAR	$40.26	1
08	4B0837109B	LATCH	4B0837109B LATCH	$7.16	2
09	4B0857179	KEY	4B0857179 KEY	$2.23 MSRP: ~~7.04~~ (68.3% off)	2
10	4B2837015G	DOOR LOCK LEFT (DOUBLE LOCK)	4B2837015G DOOR LOCK LEFT (DOUBLE LOCK)	$161.98	1
10	402837016	DOOR LOCK RIGHT (DOUBLE LOCK)	402837016 DOOR LOCK RIGHT (DOUBLE LOCK)	$267.24	1
11	893839821	ARTICULATED RING	893839821 ARTICULATED RING	$0.97 MSRP: ~~7.26~~ (86.6% off)	2
12	8E0837087D	REINFORCEMENT	8E0837087D REINFORCEMENT	$4.71	2
13	402837208	DOOR HANDLE	402837208 DOOR HANDLE	$105.10	1
14	402837886	BRACKET	402837886 BRACKET	$99.46	1
15	400839239	LH DOOR HANDLE TRIM PLATE	400839239 LH DOOR HANDLE TRIM PLATE (valid for RHD)	$2,804.38	1
16	4B0839885	BRACKET	4B0839885 BRACKET	$55.91	1
17	400839207	DOOR HANDLE	400839207 DOOR HANDLE	$110.76	1
18	R1400021	RH Cover/Door Handle Ornament Kit	R1400021 RH Cover/Door Handle Ornament Kit (valid for RHD)	$749.99	1
19	N91033702	SCREW M8X20	N91033702 SCREW M8X20	$4.23	4
