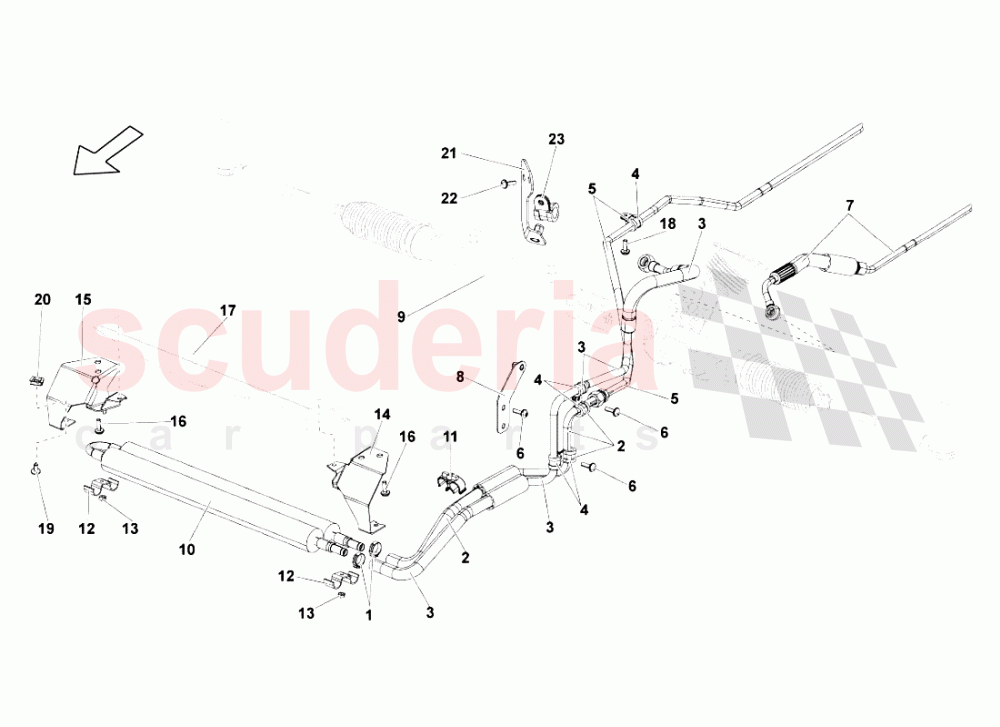

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	N10197601	EAR CRIMP HOSE CLAMP	N10197601 EAR CRIMP HOSE CLAMP	$1.37 MSRP: ~~7.18~~ (80.9% off)	2
002	400422898	RETURN HOSE	400422898 RETURN HOSE	$128.49	1
003	401422891C	FEED PIPE	401422891C FEED PIPE	$388.45	1
004	N0206015	CLAMP	N0206015 CLAMP	$2.23 MSRP: ~~7.10~~ (68.6% off)	5
005	400422857B	RETURN HOSE	400422857B RETURN HOSE	$190.87	1
006	N10124304	OVAL HEXAGON SOCKET HEAD BOLT	N10124304 OVAL HEXAGON SOCKET HEAD BOLT	$1.55	3
007	401422893F	FEED PIPE	401422893F FEED PIPE	$233.87	1
008	400422163	BRACKET	400422163 BRACKET	$24.54	1
010	400422886A	OIL COOLER	400422886A OIL COOLER	$551.15	1
011	3D0971838F	CABLE TIE WITH HOLDER FOR WELD PIN:	3D0971838F CABLE TIE WITH HOLDER FOR WELD PIN:	$2.84	1
012	400422871D	MOUNTING BAR	400422871D MOUNTING BAR	$7.27	2
013	N10017307	HEXAGON COLLAR NUT	N10017307 HEXAGON COLLAR NUT	$1.81 MSRP: ~~7.33~~ (75.3% off)	2
014	400422847	Left Support	400422847 Left Support	$194.23	1
015	400422848	Right Support	400422848 Right Support	$200.96	1
016	N91032702	ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	N91032702 ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD	$1.68	4
018	N10335206	HEXAGON SOCKET FLAT HEAD BOLT	N10335206 HEXAGON SOCKET FLAT HEAD BOLT	$1.43	1
019	N90900401	HEX SOCKET OVAL HEAD COLLARED	N90900401 HEX SOCKET OVAL HEAD COLLARED	$1.25	2
020	N90327506	SPEED NUT	N90327506 SPEED NUT	$0.94	2
023	N0206015	CLAMP	N0206015 CLAMP	$2.23 MSRP: ~~7.10~~ (68.6% off)	2
