Vapor Filter

Lamborghini Gallardo LP550 Spyder

Find Your Part

Lamborghini Gallardo LP550 Spyder - VAPOR FILTER

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

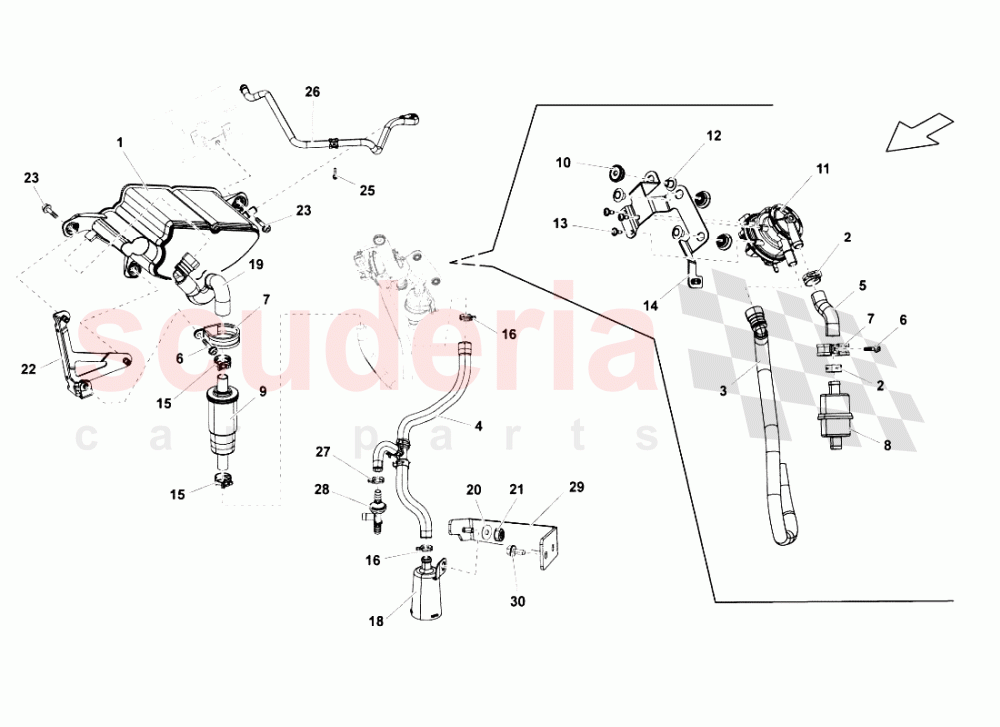

VAPOR FILTER of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 3D0201801F
VAPOR FILTER 		- 1 Enquire
002 N90686901
SPRING BAND CLAMP
IN STOCK 		- 2 Enquire
003 407201153
VAPOR FILTER - 		- 1 Enquire
004 407201983
PIPE 		- 1 Enquire
005 407906272
PIPE 		- 1 Enquire
006 N10196103
OVAL SOCKET HEAD BOLT WITH HEX DRIVE
IN STOCK 		- 2 Enquire
007 N90942301
CLAMP 		- 2 Enquire
008 4D0906321C
FILTER
IN STOCK 		- 1 Enquire
009 4F0201801B
CANISTER FILTER 		- 1 Enquire
010 8Z0129669A
GROMMET
IN STOCK 		- 3 Enquire
011 7H0906271A
PUMP 		- 1 Enquire
012 8Z0129734
BUSH
IN STOCK 		- 3 Enquire
013 N90829802
HEXAGON SOCKET HEAD PANEL BOLT 		- 3 Enquire
014 407201369
BRACKET 		- 1 Enquire
015 4B0422379A
SPRING BAND CLAMP 		- 1 Enquire
016 N90686901
SPRING BAND CLAMP
IN STOCK 		- 1 Enquire
018 400201890
END PIECE 		- 1 Enquire
019 407201159
PIPE 		- 1 Enquire
020 WHT002961
WASHER
IN STOCK 		- 1 Enquire
021 N01508213
HEXAGON COLLAR NUT
IN STOCK 		- 1 Enquire
022 407201187A
NUT M6 - 		- 1 Enquire
023 N91054201
HEXAGON SOCKET HEAD BOLT, SELF-LOCKING
IN STOCK 		- 3 Enquire
025 WHT001190
ROUND HD. SCREW
IN STOCK 		- 1 Enquire
026 407133352A
PIPE 		- 1 Enquire
027 N90655401
CLAMP 		- 1 Enquire
028 400201811
VALVE 		- 1 Enquire
029 400201859
BRACKET 		- 1 Enquire
030 N90847903
Screw M6X15
IN STOCK 		- 2 Enquire
