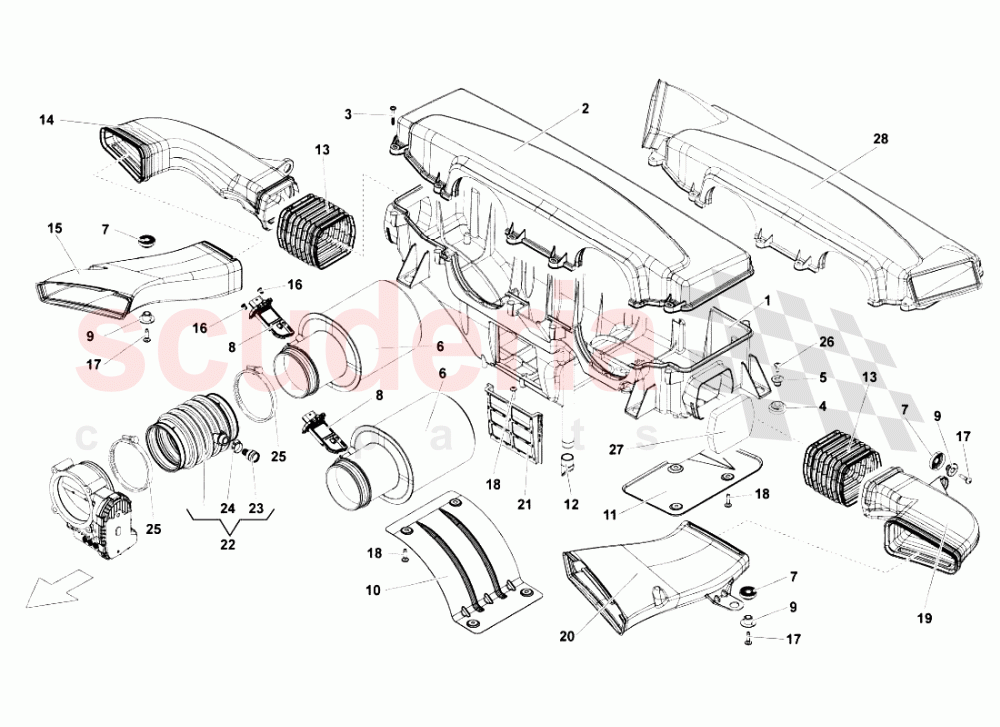

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	420133845C	AIR FILTER BOX	420133845C AIR FILTER BOX	-	1	Enquire
003	420198132	FIXING KIT	420198132 FIXING KIT	-	10	Enquire
004	867129669	GROMMET	867129669 GROMMET	-	4	Enquire
005	1K0129734B	BUSH IN STOCK	1K0129734B BUSH IN STOCK	-	4	Enquire

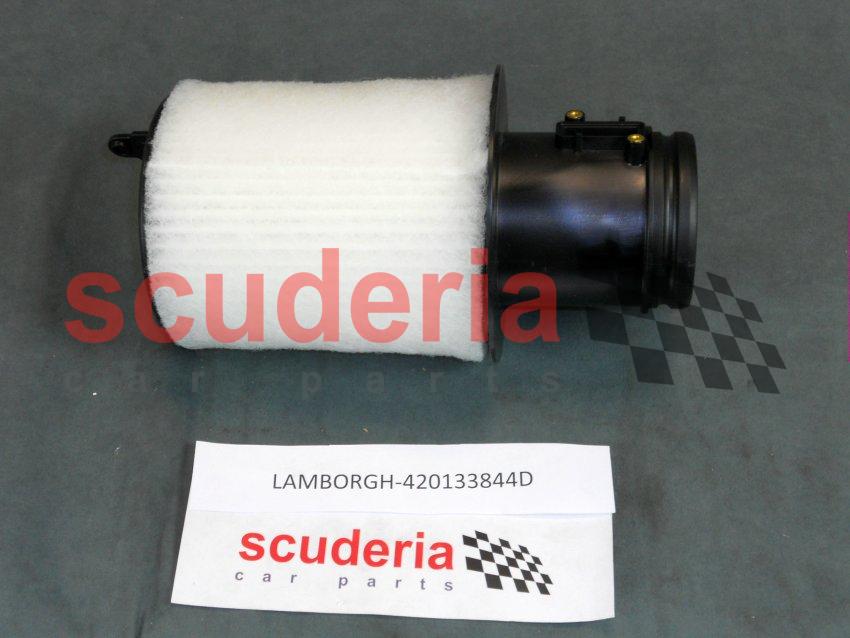

006	420133844D	Air Filter IN STOCK	420133844D Air Filter IN STOCK	-	2	Enquire
008	420133471	AIR FLOW METER SENSOR IN STOCK	420133471 AIR FLOW METER SENSOR IN STOCK	-	2	Enquire
010	420115339A	HEAT SHIELD	420115339A HEAT SHIELD	-	1	Enquire
011	420115339C	HEAT SHIELD	420115339C HEAT SHIELD	-	1	Enquire
012	420133540	VALVE	420133540 VALVE	-	1	Enquire
016	N91068201	HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	N91068201 HEXAGON SOCKET FLAT HEAD BOLT IN STOCK	-	4	Enquire
018	N90739704	PANEL SCREW IN STOCK	N90739704 PANEL SCREW IN STOCK	-	8	Enquire
021	420133360C	FILTERING CARTRIDGE	420133360C FILTERING CARTRIDGE	-	1	Enquire
022	420133303F	INTAKE HOSE	420133303F INTAKE HOSE	-	2	Enquire
023	79133022C	CONNECTOR UNION	79133022C CONNECTOR UNION	-	2	Enquire
024	N10098001	CLAMP	N10098001 CLAMP	-	2	Enquire
025	N0245085	HOSE CLAMP	N0245085 HOSE CLAMP	-	4	Enquire
026	N91054201	HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	N91054201 HEXAGON SOCKET HEAD BOLT, SELF-LOCKING IN STOCK	-	4	Enquire
027	407198026	COVER	407198026 COVER	-	2	Enquire
028	407133846	COVER	407133846 COVER	-	1	Enquire
