Right Head Timing System

Lamborghini Gallardo LP550 Spyder

Find Your Part

Lamborghini Gallardo LP550 Spyder - RIGHT HEAD TIMING SYSTEM

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

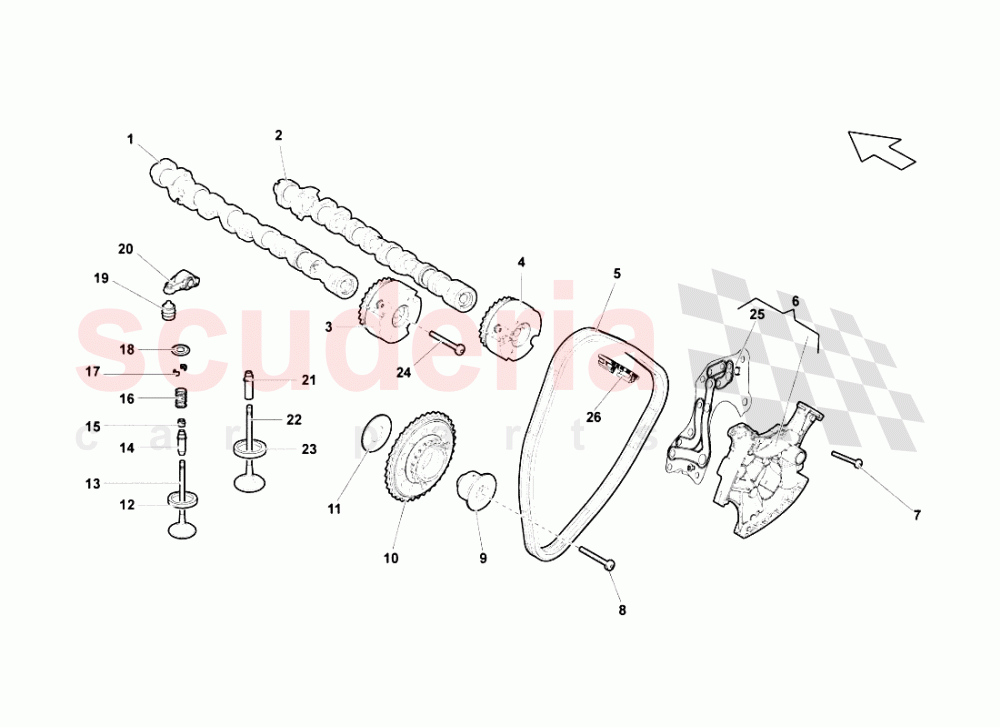

RIGHT HEAD TIMING SYSTEM of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7L109101BH
INTAKE CAMSHAFT - 		- 1 Enquire
002 7L109102AL
EXHAUST CAMSHAFT - 		- 1 Enquire
003 7L109083D
PHASE TRANSFORMER - 		- 1 Enquire
004 7L109084G
CAMSHAFT ADJUSTER UNIT 		- 1 Enquire
005 6E109465AS
PHASE TRANSFORMER - 		- 1 Enquire
006 79109218S
CHAIN TIGHTENER - 		- 1 Enquire
007 N10124304
OVAL HEXAGON SOCKET HEAD BOLT 		- 6 Enquire
008 N10660901
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 1 Enquire
009 6E109220A
BEARING PIN 		- 1 Enquire
010 6E109077E
RIGHT SUPPORT - 		- 1 Enquire
011 79109180B
THRUST BEARING - 		- 1 Enquire
012 6D103431M
EXHAUST VALVE SEAT - 		- 10 Enquire
013 79109601B
INTAKE VALVE - 		- 10 Enquire
015 57109675
VALVE STEM SEAL 		- 20 Enquire
016 6E109623
SPRING 		- 20 Enquire
017 36109651
COTTER, SPLIT 		- 40 Enquire
018 6E109641A
SPRING DISC 		- 20 Enquire
019 22109423C
HYDRAULIC ELEMENT - 		- 10 Enquire
020 79109409B
ROLLER ROCKER ARM 		- 20 Enquire
022 6D109611H
EXHAUST VALVE 		- 10 Enquire
023 79103441D
INTAKE VALVE SEAT - 		- 10 Enquire
024 N91042802
FLAT HEAD MULTI-POINT SOCKET BOLT 		- 2 Enquire
025 79109139K
SEAL 		- 1 Enquire
026 79109470
COVERING 		- 1 Enquire
