Lamborghini Gallardo LP550 Spyder - RIGHT CYLINDER HEAD AND COVER 1-5

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

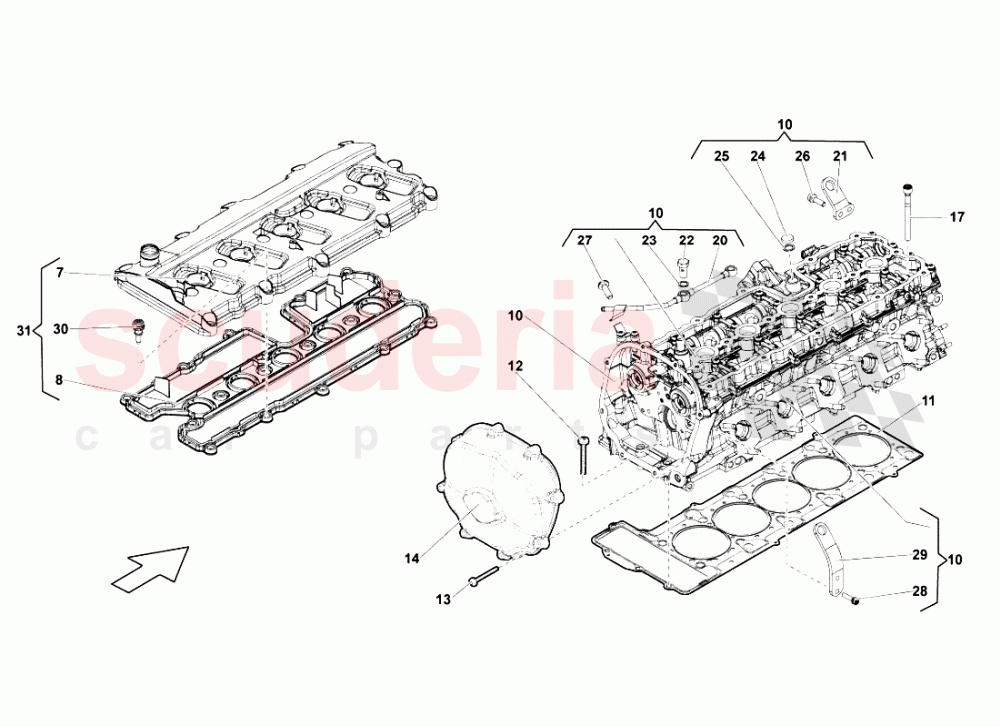

RIGHT CYLINDER HEAD AND COVER 1-5 of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
007 7L103476H
COVER 		- 1 Enquire
008 7L103484F
CYLINDER HEAD GASKET RH 		- 1 Enquire
010 7L103064AH
ASSEMBLEY 1-5 CYLINDER HEAD (UP TO ENGINE CEH002326) - 		- 1 Enquire
010 7L103064AK
ASSEMBLEY 1-5 CYLINDER HEAD (FROM ENGINE CEH002327) - 		- 1 Enquire

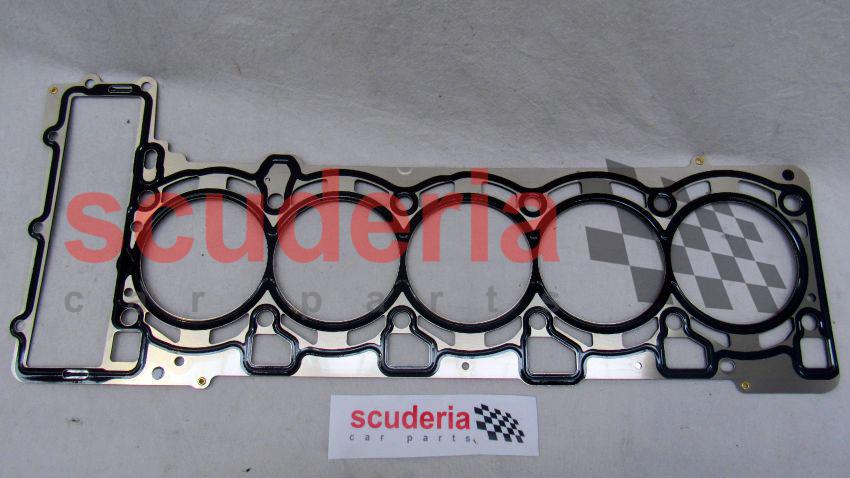

011 7L103383BB
CYLINDER HEAD GASKET 		- 1 Enquire
012 N10470705
ROUND HD. SCREW 		- 5 Enquire
013 N91068001
HEXAGON SOCKET FLAT HEAD BOLT 		- 8 Enquire
017 WHT001411
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		- 12 Enquire
020 7L121455G
PIPE 		- 1 Enquire
021 7L103390R
TRANSPORTATION SHACKLE 		- 1 Enquire
022 N0210756
BANJO BOLT 		- 2 Enquire
023 N0138063
SEAL RING 		- 4 Enquire
024 N0160293
OIL DRAIN PLUG M18 X1.5 		- 1 Enquire
025 N0138326
SEAL RING 		- 1 Enquire
026 N91139201
SCREW WITH INT. SERRATIONS 		- 2 Enquire
027 N10335206
HEXAGON SOCKET FLAT HEAD BOLT 		- 1 Enquire
028 N91084201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI) 		- 2 Enquire
029 7L103390M
TRANSPORTATION SHACKLE 		- 1 Enquire
030 6B103831J
HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE 		- 16 Enquire
031 7L103472D
CYLINDER HEAD COVER WITH GASKET 		- 1 Enquire
032 7L103650A
SEAL 		- 1 Enquire
