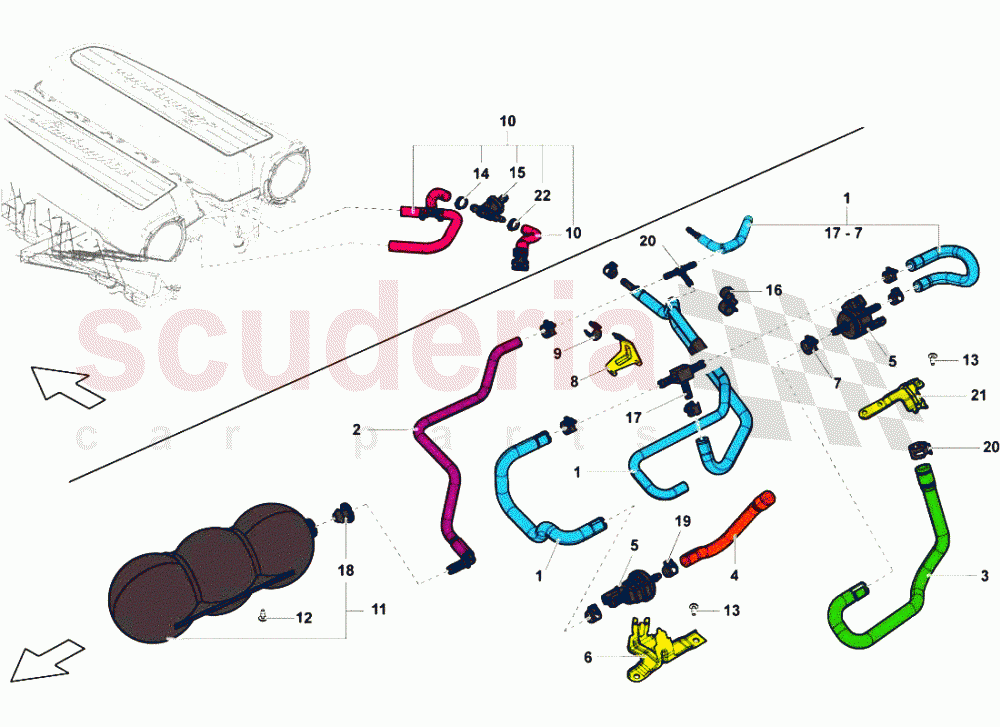

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	7L133240H	PIPE ASSEMBLY	7L133240H PIPE ASSEMBLY	-	1	Enquire
002	7L133240F	PIPE ASSEMBLY	7L133240F PIPE ASSEMBLY	-	1	Enquire
003	7L133394Q	PIPE ASSEMBLY	7L133394Q PIPE ASSEMBLY	-	1	Enquire
004	7L133394AC	PIPE ASSEMBLY	7L133394AC PIPE ASSEMBLY	-	1	Enquire
005	6H906517B	VALVE AKF	6H906517B VALVE AKF	-	1	Enquire
006	7L131157E	BRACKET	7L131157E BRACKET	-	1	Enquire
007	N90686701	SPRING BAND CLAMP	N90686701 SPRING BAND CLAMP	-	4	Enquire
008	7L103320H	BRACKET	7L103320H BRACKET	-	1	Enquire
009	7L133847	HOSE BRACKET	7L133847 HOSE BRACKET	-	1	Enquire
010	420133750	SUCTION JET PUMP WITH HOSE	420133750 SUCTION JET PUMP WITH HOSE	-	1	Enquire
011	420131541	VACUUM RESERVOIR	420131541 VACUUM RESERVOIR	-	1	Enquire
012	N90925202	HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	N90925202 HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING	-	2	Enquire
013	N10405604	OVAL HEXAGON SOCKET HEAD BOLT	N10405604 OVAL HEXAGON SOCKET HEAD BOLT	-	3	Enquire
014	N10201801	CLAMP	N10201801 CLAMP	-	1	Enquire
015	79133753	SUCTION JET PUMP	79133753 SUCTION JET PUMP	-	1	Enquire
016	N10328401	BRACKET	N10328401 BRACKET	-	1	Enquire
017	6X0131831	T CONNECTOR -	6X0131831 T CONNECTOR -	-	1	Enquire
018	431820667	GROMMET	431820667 GROMMET	-	1	Enquire
019	N90770201	SPRING BAND CLAMP	N90770201 SPRING BAND CLAMP	-	9	Enquire
020	2D0129737A	T CONNECTOR -	2D0129737A T CONNECTOR -	-	1	Enquire
021	7L131157E	BRACKET	7L131157E BRACKET	-	1	Enquire
022	N10255501	CLAMP	N10255501 CLAMP	-	1	Enquire
