Left Cylinder Head And Cover 6-10

Lamborghini Gallardo LP550 Spyder

Find Your Part

Lamborghini Gallardo LP550 Spyder - LEFT CYLINDER HEAD AND COVER 6-10

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

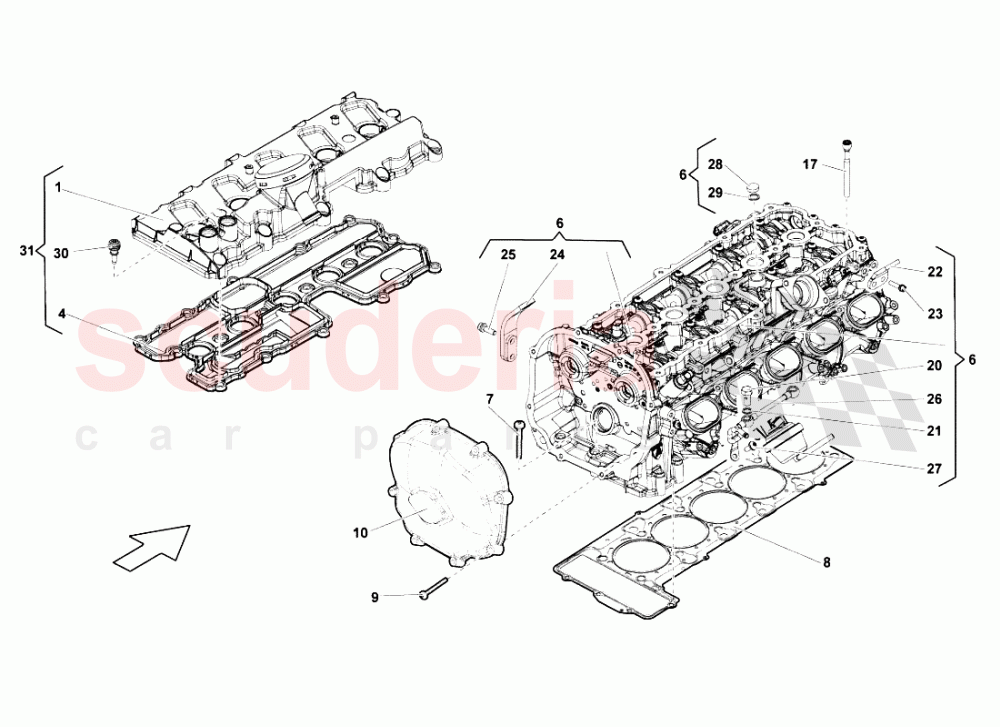

LEFT CYLINDER HEAD AND COVER 6-10 of Lamborghini Lamborghini Gallardo LP550 Spyder Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
001 7L103475R
COVER 		- 1 Enquire
004 7L103483J
SEAL CYLINDER HEAD
IN STOCK 		$52.00 1
006 7L103063AK
ASSEMBLEY 6-10 CYLINDER HEAD (FROM ENGINE CEH002327) - 		$10,137.66 1
006 7L103063AH
ASSEMBLEY 6-10 CYLINDER HEAD (UP TO ENGINE CEH002326) - 		$7,073.84 1
007 N10470705
ROUND HD. SCREW
IN STOCK 		$2.08 5
008 7L103383BA
CYLINDER HEAD GASKET
IN STOCK 		$171.47 1
009 N91068001
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$1.68 (76.7% off) 8
017 WHT001411
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD 		$4.95 12
020 N0210756
BANJO BOLT
IN STOCK 		$9.21 2
021 N0138063
SEAL RING 		$3.27 4
022 7L103390R
TRANSPORTATION SHACKLE 		$6.92 1
023 N91139201
SCREW WITH INT. SERRATIONS 		$1.89 (73.3% off) 2
024 7L103390M
TRANSPORTATION SHACKLE 		$18.50 1
025 N91084201
SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (KOMBI)
IN STOCK 		$3.21 (55.5% off) 2
026 7L121455F
PIPE 		$155.26 1
027 N10335206
HEXAGON SOCKET FLAT HEAD BOLT
IN STOCK 		$1.43 1
028 N0160293
OIL DRAIN PLUG M18 X1.5
IN STOCK 		$9.17 1
029 N0138326
SEAL RING
IN STOCK 		$3.55 (51.2% off) 1
030 6B103831J
HEXAGON SOCKET FLAT HEAD BOLT WITH GUIDE SLEEVE
IN STOCK 		$11.59 16
031 7L103471AC
CYLINDER HEAD COVER WITH GASKET
IN STOCK 		$613.65 1
032 7L103649A
SEAL
IN STOCK 		$23.13 1
