Gearbox of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

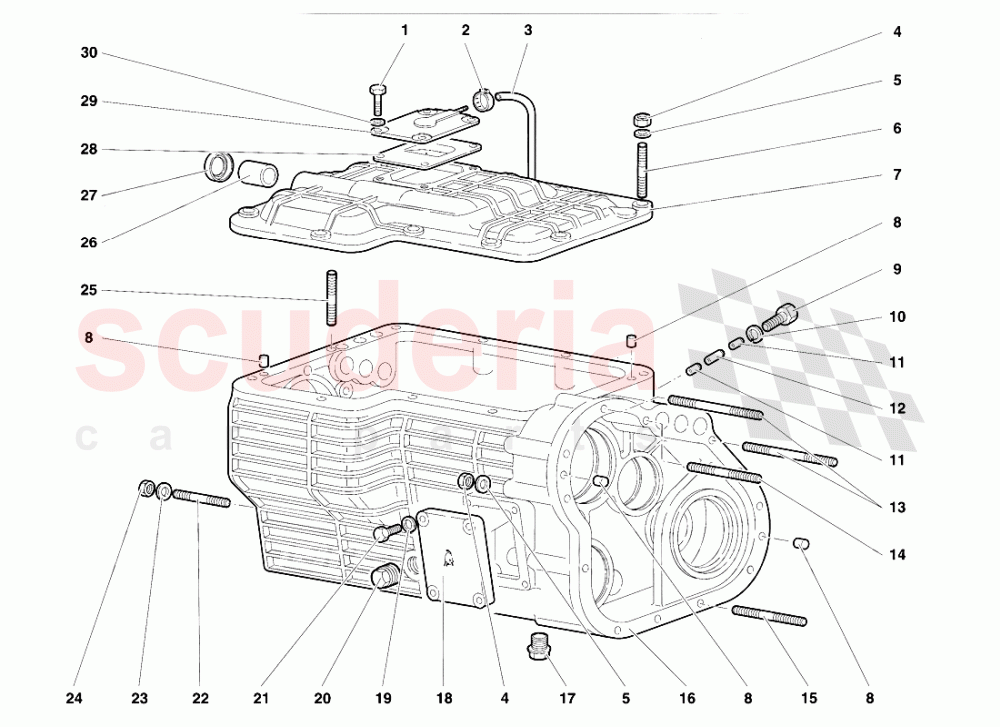

Lamborghini Diablo VT (1993-1998) - Gearbox

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8100604	SCREW	8100604 SCREW VITE	$2.56	4
002	8830128	CLAMP	8830128 CLAMP FASCETTA	$0.46	1
003	2428649	VENT PIPE	2428649 VENT PIPE TUBODISFIATO	-	1	Enquire
004	8200806	NUT	8200806 NUT DADO	$0.36 MSRP: ~~7.33~~ (95.1% off)	22
005	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	22
006	8300825	STUD BOLT	8300825 STUD BOLT PRIGIONIERO	$14.25	9
007	2424900	COVER	2424900 COVER COPERCHIO SUPERIORE	$550.88 MSRP: ~~557.00~~ (1.1% off)	1
008	8850806	DOWEL	8850806 DOWEL GRANO	-	4	Enquire
009	N01029315	SCREW (FROM VIN 5LA01545)	N01029315 SCREW (FROM VIN 5LA01545) VITE	$1.22 MSRP: ~~7.23~~ (83.1% off)	1
010	8400802	WASHER	8400802 WASHER RONDELLA	$1.50 MSRP: ~~7.27~~ (79.4% off)	1
011	2425223	ROD	2425223 ROD PUNTALINO	$27.99 MSRP: ~~28.30~~ (1.1% off)	2
012	2425224	ROD	2425224 ROD PUNTALINO	$28.70	1
013	8300895	STUD	8300895 STUD PRIGIONIERO	$8.07 MSRP: ~~8.40~~ (3.9% off)	2
014	8300897	STUD	8300897 STUD PRIGIONIERO	$14.92 MSRP: ~~15.50~~ (3.7% off)	1
015	8300893	STUD	8300893 STUD PRIGIONIERO	$19.78	9
016	2430746	GEAR BOX CASE	2430746 GEAR BOX CASE SCATOLA CAMBIO	$3,411.90	1
017	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$37.19	1
018	2430999	COVER	2430999 COVER COPERCHIO	$506.21	1
019	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
020	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$4.28	1
021	8100603	SCREW	8100603 SCREW VITE	$1.38 MSRP: ~~7.35~~ (81.2% off)	4
022	8300627	STUD	8300627 STUD PRIGIONIERO	$12.99 MSRP: ~~13.50~~ (3.8% off)	6
023	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	6
024	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	6
025	8300862	STUD	8300862 STUD PRIGIONIERO	-	1	Enquire
026	8801612	BUSHING	8801612 BUSHING BOCCOLA	-	1	Enquire
027	8611605	SEAL	8611605 SEAL ANELLO TENUTA	$15.96 MSRP: ~~16.60~~ (3.9% off)	1
028	2428643	PAN	2428643 PAN VASCHETTA	$20.74	1
029	2428645	COVER	2428645 COVER COPERCHIO SFIATO	$127.19	1
030	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	4
