Lamborghini Diablo VT (1993-1998) - Clutch Control Levers

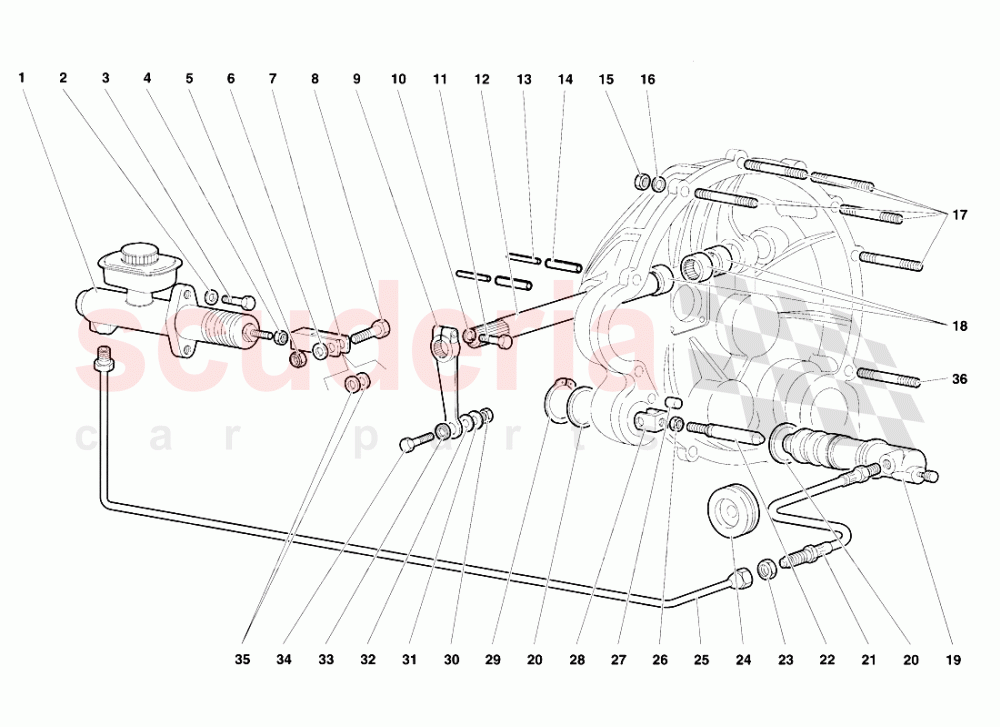

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	4219984	CLUTCH PUMP IN STOCK	4219984 CLUTCH PUMP POMPA FRIZIONE IN STOCK	$364.07	1
002	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	2
003	N0124032	SCREW	N0124032 SCREW VITE	-	2	Enquire
004	8200811	NUT	8200811 NUT DADO	$5.82 MSRP: ~~6.00~~ (3% off)	1
005	8200804	NUT M8 IN STOCK	8200804 NUT M8 DADO IN STOCK	$1.16 MSRP: ~~7.28~~ (84.1% off)	1
006	8400801	WASHER	8400801 WASHER RONDELLA	$0.68	1
007	4219591	FORK	4219591 FORK FORCELLA	-	1	Enquire
008	2129460	JOURNAL	2129460 JOURNAL PERNO	$32.39	1
009	2129457	LEVER	2129457 LEVER LEVA	$534.12	1
010	8410819	WASHER	8410819 WASHER RONDELLA :	$2.29 MSRP: ~~2.40~~ (4.6% off)	1
011	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.98	1
012	2125925	SHAFT	2125925 SHAFT ALBERO	$490.09	1
013	8900503	PIN - SPINA	8900503 PIN - SPINA SA	$1.03	2
014	8900802	PIN - SPINA	8900802 PIN - SPINA SA	$7.58	2
015	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	11
016	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	11
017	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$6.02	5
018	8522204	ROLLER CAGE	8522204 ROLLER CAGE GABBIA A RULLI	$20.12 MSRP: ~~20.90~~ (3.7% off)	3

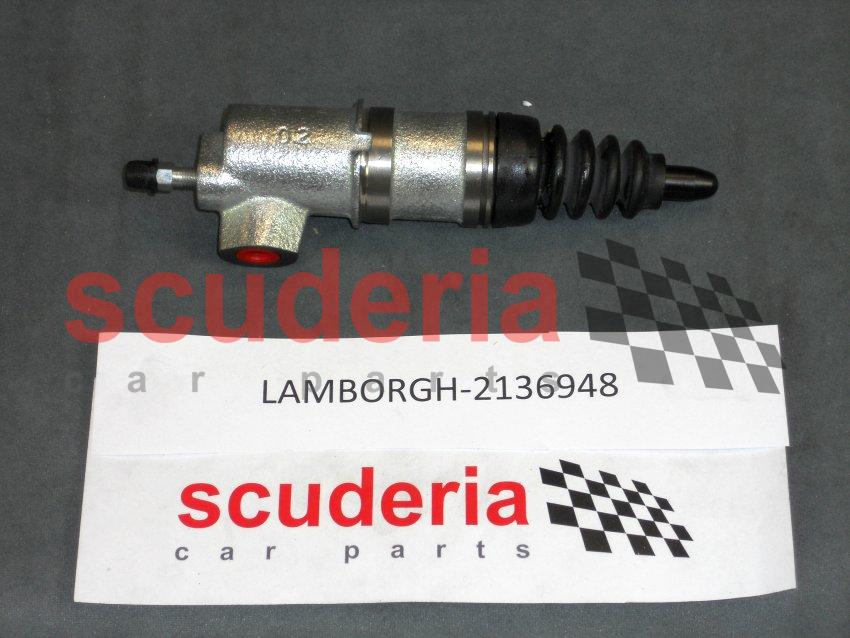

019	2136948	PUMP CYLINDER IN STOCK	2136948 PUMP CYLINDER CILINDRO POMPA IN STOCK	$139.21	1
020	2129128	SPACER	2129128 SPACER DISTANZIALE	$61.24	2
021	2110618	PIPE	2110618 PIPE TUBO	$102.62	1
022	2134348	ROD IN STOCK	2134348 ROD PUNTALE IN STOCK	$155.62	1
023	8201216	NUT	8201216 NUT DADO	$4.69	1
024	410721493	RUBBER	410721493 RUBBER GOMMA	$54.04	1
025	2133546	PIPE	2133546 PIPE TUBO	$90.20	1
026	8200811	NUT	8200811 NUT DADO	$5.82 MSRP: ~~6.00~~ (3% off)	1
027	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
028	2121672	FORK	2121672 FORK FORCELLA	$100.50	1
029	8583701	RETAINER RING IN STOCK	8583701 RETAINER RING ANELLO RITEGNO IN STOCK	$0.55 MSRP: ~~7.31~~ (92.5% off)	1
030	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	1
031	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	1
032	WHT002962	WASHER 14X8.4X1.5 IN STOCK	WHT002962 WASHER 14X8.4X1.5 RONDELLA IN STOCK	$0.33 MSRP: ~~7.35~~ (95.5% off)	1
033	4225225	COUPLING	4225225 COUPLING TESTA A SNODO	-	1	Enquire
034	WHT002952	SCREW M8X1,25X30 IN STOCK	WHT002952 SCREW M8X1,25X30 VITE IN STOCK	$4.98	1
035	8400819	WASHER 8X12X1	8400819 WASHER 8X12X1 RONDELLA	$0.58 MSRP: ~~7.29~~ (92% off)	2
036	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	1
