Gearbox Control Tower of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

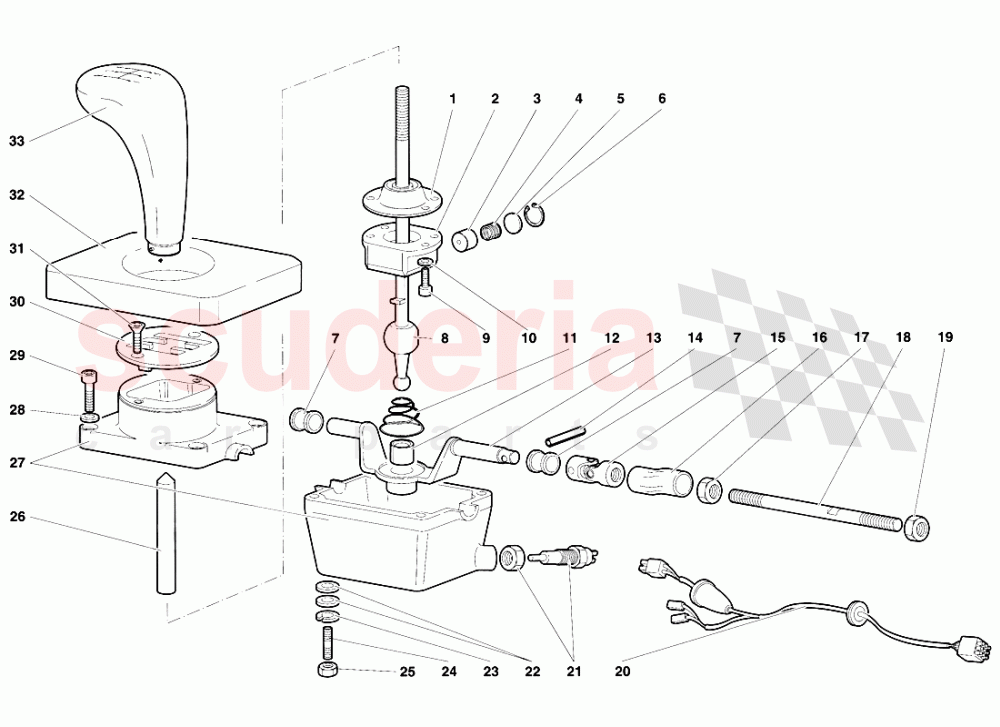

Lamborghini Diablo VT (1993-1998) - Gearbox Control Tower

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2433043	BOOT	2433043 BOOT CUFFIA	$119.14	1
002	2434091	BALL SOCKFT	2434091 BALL SOCKFT SEDE SFERICA	$240.69 MSRP: ~~243.50~~ (1.2% off)	1
003	2427202	CYLINDER	2427202 CYLINDER CILINDRO	$85.00	1
004	2432167	SPRING	2432167 SPRING MOLLA	$12.17 MSRP: ~~12.70~~ (4.2% off)	1
005	2427204	PLUG	2427204 PLUG TAPPO	$10.31	1
006	8572201	RETAINER RING	8572201 RETAINER RING ANELLO RITEGNO	$0.07 MSRP: ~~7.38~~ (99.1% off)	1
007	2433020	BUSHING	2433020 BUSHING BOCCOLA	$78.48	2
008	2433008	LEVER	2433008 LEVER LEVA	$1,346.15 MSRP: ~~1,395.00~~ (3.5% off)	1
009	8700646	SCREW	8700646 SCREW VITE	$0.16 MSRP: ~~7.37~~ (97.8% off)	4
010	8410602	WASHER	8410602 WASHER RONDELLA	$44.87	4
011	2429160	SPRING	2429160 SPRING MOLLA	$171.53	1
012	2427207	BUSHING	2427207 BUSHING BOCCOLA	$321.35	1
013	2429161	SHAFT	2429161 SHAFT ALBERO	$304.61 MSRP: ~~308.00~~ (1.1% off)	1
014	8900305	PIN - SPINA	8900305 PIN - SPINA SA	$0.27 MSRP: ~~7.35~~ (96.3% off)	1
015	2430984	UNIVERSAL JOINT	2430984 UNIVERSAL JOINT See also 410711615	-	1	Enquire
015	410711615	RH JOINT	410711615 RH JOINT GIUNTO CARDANICO (DX)	$1,080.65	1
016	2432117	LINER	2432117 LINER GUAINA IN GOMMA	$66.26	1
017	8201223	NUT	8201223 NUT DADO (DX)	-	1	Enquire
018	2432435	ROD	2432435 ROD ASIA	$43.59	1
019	8201224	NUT	8201224 NUT DADO (SX)	-	1	Enquire
020	6133761	ELECT CABLE	6133761 ELECT CABLE CAVO ELETTRICO	$94.81	1
021	2408637	SWITCH	2408637 SWITCH INTERRUTTORE RETROMARCIA	$117.25	1
022	WHT002961	WASHER	WHT002961 WASHER RONDELLA	$0.42	8
023	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.24	4
024	8300624	STUD	8300624 STUD PRIGIONIERO	$17.32	4
025	N01100637	NUT M6	N01100637 NUT M6 DADO	$0.33 MSRP: ~~7.29~~ (95.5% off)	4
026	2432932	ADAPTER KNOB	2432932 ADAPTER KNOB ADATTATORE POMELLO	$77.66	1
027	240132003	CASE	240132003 CASE SCATOLA LAVORATA	$1,631.51 MSRP: ~~1,660.00~~ (1.7% off)	1
028	WHT000771	WASHER	WHT000771 WASHER RONDELLA	$1.19	4
029	8700804	SCREW	8700804 SCREW VITE	$1.63 MSRP: ~~7.33~~ (77.8% off)	4
030	2433874	PLATE	2433874 PLATE PIASTRA Dl SELEZIONE	$1,307.08	1
031	8740613	SCREW	8740613 SCREW VITE	$0.28 MSRP: ~~7.34~~ (96.2% off)	2
032	2431785	FLEX PAD	2431785 FLEX PAD SPESSORE IN GOMMA	-	1	Enquire
033	2428311	KNOB	2428311 KNOB POMELLO	$797.57	1
