Front Differential of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

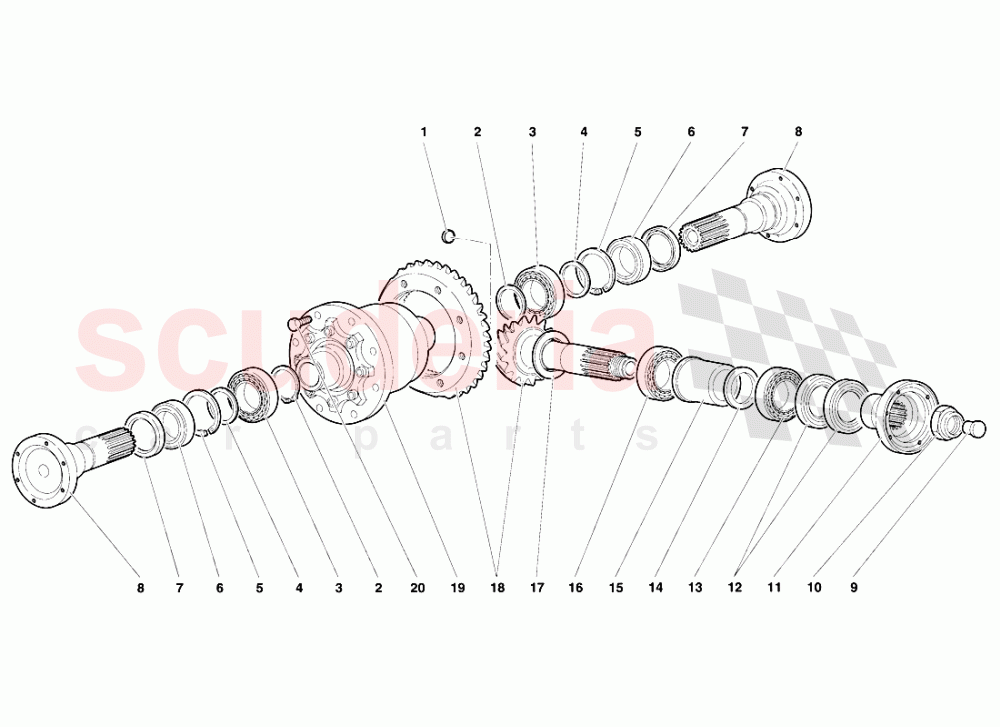

Lamborghini Diablo VT (1993-1998) - Front Differential

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	45Y8Q1320	FRONT DIFFERENTIAL UNIT	45Y8Q1320 FRONT DIFFERENTIAL UNIT	-	1	Enquire
001	8932006	PLUG	8932006 PLUG TAPPO	$2.05	1
002	8582701	RETAINING RING IN STOCK	8582701 RETAINING RING ANELLO RITEGNO IN STOCK	$2.33 MSRP: ~~7.03~~ (66.9% off)	2
003	8544103	BEARING	8544103 BEARING CUSCINETTO	$139.24	2
004	2325826	SPACER	2325826 SPACER DISTANZIALE	-	2	Enquire
005	8576601	RETAINER RING	8576601 RETAINER RING ANELLO RITEGNO	$0.82 MSRP: ~~7.26~~ (88.7% off)	2
006	1S409144	BEARING	1S409144 BEARING CUSCINETTO	$48.46	2
007	8613805	SEAL	8613805 SEAL ANELLO TENUTA	$19.30	2
008	2325830	FLANGE	2325830 FLANGE FLANGIA	-	2	Enquire
009	2334235	RUBBER	2334235 RUBBER GOMMA	$11.31 MSRP: ~~11.45~~ (1.2% off)	1
010	8252505	PLUG	8252505 PLUG GHIERA	$88.16	1
011	2334024	FLANGE	2334024 FLANGE FLANGIA	$904.46	1
012	8614208	SEAL	8614208 SEAL ANELLO TENUTA	$118.50 MSRP: ~~124.00~~ (4.4% off)	2
013	8543101	BEARING	8543101 BEARING CUSCINETTO	$136.48 MSRP: ~~142.00~~ (3.9% off)	1
014	2333787	SHIM	2333787 SHIM SPESSORE Dl REGISTRO 2,8 MM	$19.67 MSRP: ~~19.90~~ (1.2% off)	1
014	2333789	SHIM	2333789 SHIM SPESSORE Dl REGISTRO 3,0 MM	$19.67 MSRP: ~~19.90~~ (1.2% off)	1
014	2333790	SHIM	2333790 SHIM SPESSORE Dl REGISTRO 3,1 MM	$19.67 MSRP: ~~19.90~~ (1.2% off)	1
014	2334258	SHIM	2334258 SHIM SPESSORE Dl REGISTRO 3,3 MM	$36.68	1
014	2334350	SHIM	2334350 SHIM SPESSORE Dl REGISTRO 0,15 MM	$69.12 MSRP: ~~72.20~~ (4.3% off)	1
014	2333791	SHIM	2333791 SHIM SPESSORE Dl REGISTRO 3,2 MM	$62.28 MSRP: ~~65.20~~ (4.5% off)	1
014	2333788	SHIM	2333788 SHIM SPESSORE Dl REGISTRO 2,9 MM	$19.67 MSRP: ~~19.90~~ (1.2% off)	1
015	2325825	SPACER	2325825 SPACER DISTANZIALE	$52.43	1
016	8543401	BEARING	8543401 BEARING CUSCINETTO	$222.19	1
017	2333795	SHIM	2333795 SHIM SPESSORE Dl REGISTRO 2,7 MM	$54.41 MSRP: ~~56.90~~ (4.4% off)	1
017	2333796	SHIM	2333796 SHIM SPESSORE Dl REGISTRO 2,8 MM	$54.41 MSRP: ~~56.90~~ (4.4% off)	1
017	2333794	SHIM	2333794 SHIM SPESSORE Dl REGISTRO 2,6 MM	$54.41 MSRP: ~~56.90~~ (4.4% off)	1
017	2333792	SHIM	2333792 SHIM SPESSORE Dl REGISTRO 2,4 MM	$24.20 MSRP: ~~24.50~~ (1.2% off)	1
017	2334259	SHIM	2334259 SHIM SPESSORE Dl REGISTRO 2,3 MM	$87.97 MSRP: ~~92.10~~ (4.5% off)	1
017	2333793	SHIM	2333793 SHIM SPESSORE Dl REGISTRO 2,5 MM	$24.20 MSRP: ~~24.50~~ (1.2% off)	1
018	2329846	BEVEL SET	2329846 BEVEL SET COPPIACONICA	$3,151.36	1
019	2325823	KIT DIFFERENTIAL	2325823 KIT DIFFERENTIAL KIT DIFFERENZIALE ANTERIORE	-	1	Enquire
020	8101062	SCREW	8101062 SCREW VITE	$4.90 MSRP: ~~5.00~~ (2% off)	8
