Front Differential Case of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

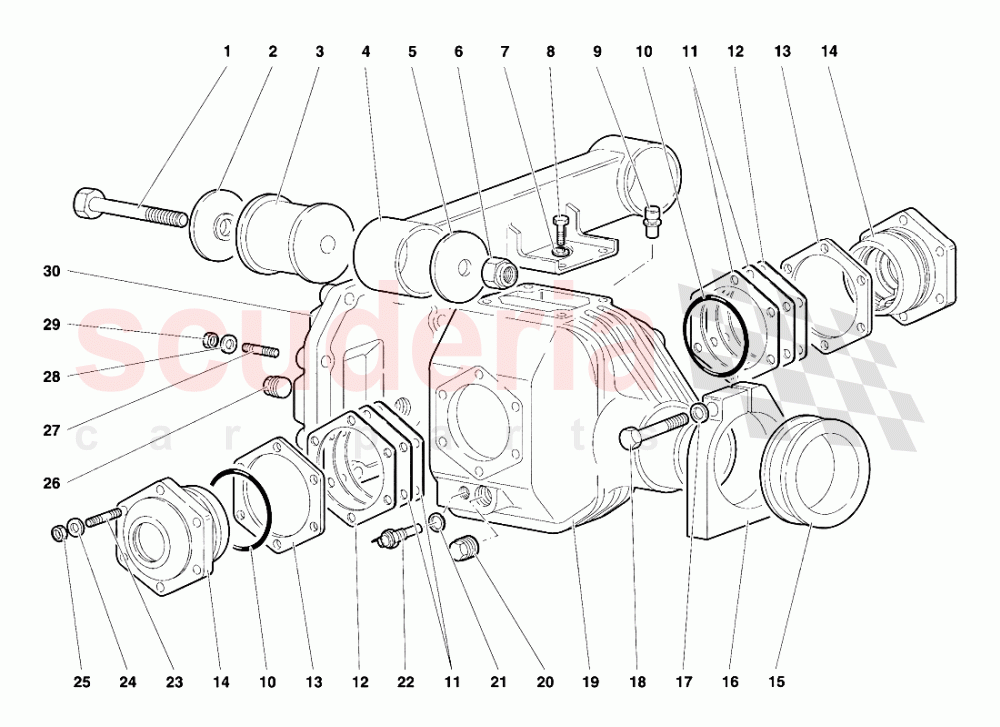

Lamborghini Diablo VT (1993-1998) - Front Differential Case

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
000	45Y8Q1320	FRONT DIFFERENTIAL UNIT	45Y8Q1320 FRONT DIFFERENTIAL UNIT	-	1	Enquire
001	8101432	SCREW	8101432 SCREW VITE	$16.86	2
002	4134280	WASHER	4134280 WASHER RONDELLA	$44.91 MSRP: ~~46.95~~ (4.3% off)	2
003	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	2
004	2326142	SUPPORT - SUPPORTO	2326142 SUPPORT - SUPPORTO O	$225.82	1
005	8401415	WASHER	8401415 WASHER RONDELLA	$16.51	2
006	8201416	NUT	8201416 NUT DADO	$1.74	2
007	N0152785	WASHER IN STOCK	N0152785 WASHER RONDELLA IN STOCK	$0.40	4
008	8100840	SCREW IN STOCK	8100840 SCREW VITE IN STOCK	$0.46	4
009	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO	$69.10	1
010	WHT002158	SEAL RING	WHT002158 SEAL RING ANELLO TENUTA	$20.84	2
011	2325831	SHIM	2325831 SHIM SPESSORE Dl REGISTRO	-	2	Enquire
012	2334027	SHIM	2334027 SHIM SPESSORE Dl REGISTRO	-	2	Enquire
013	2334026	SHIM	2334026 SHIM SPESSORE Dl REGISTRO	-	2	Enquire
014	2334044	FLANGE	2334044 FLANGE FLANGIA	$217.75	2
015	400399177	COLLAR	400399177 COLLAR	$135.74	1
016	2325441	CLAMP	2325441 CLAMP STAFFA-COLLARE	$267.37	1
017	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	1
018	8101018	SCREW	8101018 SCREW VITE	$0.56 MSRP: ~~7.28~~ (92.3% off)	1
019	2325400	CASE	2325400 CASE SCATOLA DIFF. ANT.	$3,641.44	1
020	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$37.19	1
021	8401408	WASHER IN STOCK	8401408 WASHER RONDELLA IN STOCK	$0.88 MSRP: ~~7.22~~ (87.8% off)	1
022	6033681	TEMPERATURE SENS.	6033681 TEMPERATURE SENS. SENSORE	-	1	Enquire
023	8300801	STUD	8300801 STUD PRIGIONIERO	$6.40 MSRP: ~~6.60~~ (3% off)	12
024	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	12
025	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	12
026	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$4.28	1
027	8300801	STUD	8300801 STUD PRIGIONIERO	$6.40 MSRP: ~~6.60~~ (3% off)	8
028	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	8
029	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	8
030	2325401	COVER	2325401 COVER COPERCHIO SCATOLA DIFFERENZIALE	$240.08	1
