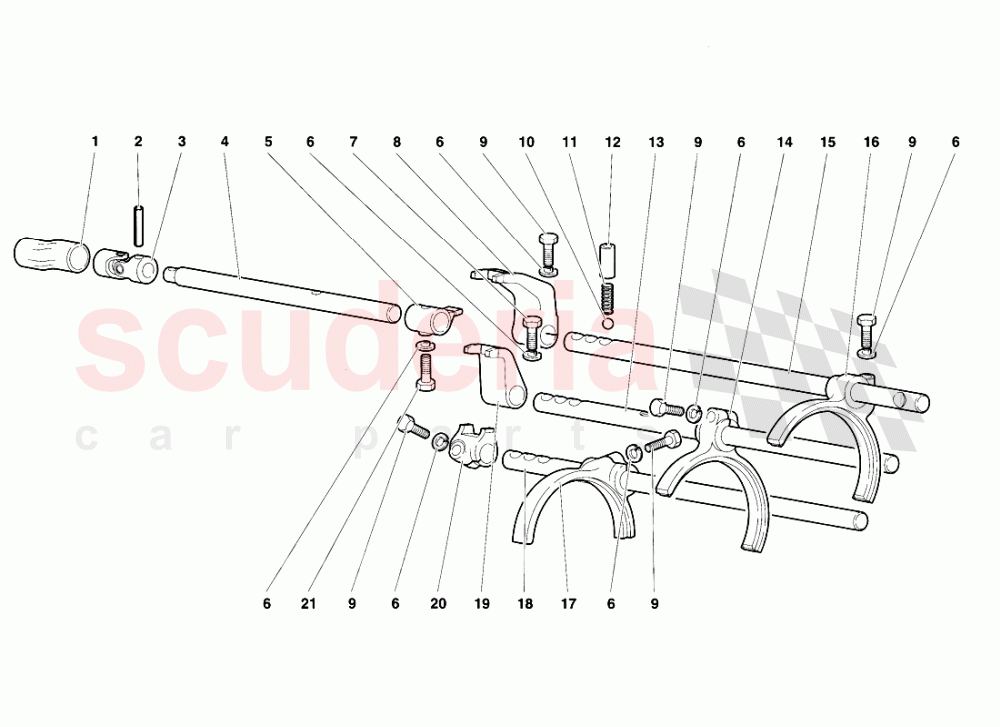

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	2432117	LINER	2432117 LINER GUAINA	-	1	Enquire
002	8900305	PIN - SPINA	8900305 PIN - SPINA SA	-	1	Enquire
003	410711613	LH JOINT	410711613 LH JOINT GIUNTO CARDANICO	-	1	Enquire
003	2430983	UNIVERSAL JOINT	2430983 UNIVERSAL JOINT See also 410711613	-	1	Enquire
004	2427211	ROD	2427211 ROD ASIA COMANDO CAMBIO	-	1	Enquire
005	2425186	SELECTOR	2425186 SELECTOR SELETTORE MARGE	-	1	Enquire
006	8410817	WASHER	8410817 WASHER RONDELLA	-	7	Enquire
007	8100830	SCREW	8100830 SCREW VITE	-	1	Enquire
008	2425189	SELECTOR	2425189 SELECTOR SELETTORE MARGE	-	1	Enquire
009	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	-	5	Enquire
010	8910701	BALL	8910701 BALL SFERA	-	3	Enquire
011	86311249	SPRING	86311249 SPRING MOLLA	-	3	Enquire
012	2401765	BUSHING	2401765 BUSHING BOCCOLA	-	3	Enquire
013	2425230	ROD	2425230 ROD ASTA 2 - E 3 - MARCIA	-	1	Enquire
014	2425191	FORK	2425191 FORK FORCELLA 2 - E 3 - MARCIA	-	1	Enquire
015	2425229	ROD	2425229 ROD ASTA 1 - MARCIA E RM	-	1	Enquire
016	2425190	FORK	2425190 FORK FORCELLA 1 - MARCIA E RM	-	1	Enquire
017	2425192	FORK	2425192 FORK FORCELLA 4 - E 5 - MARCIA	-	1	Enquire
018	2425231	ROD	2425231 ROD ASTA 4 - E 5 - MARCIA	-	1	Enquire
019	2425188	SELECTOR	2425188 SELECTOR SELETTORE	-	1	Enquire
020	2425187	SELECTOR	2425187 SELECTOR SELETTORE	-	1	Enquire
021	8100628	SCREW	8100628 SCREW VITE	-	1	Enquire
