Accelerator Cables of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Accelerator Cables

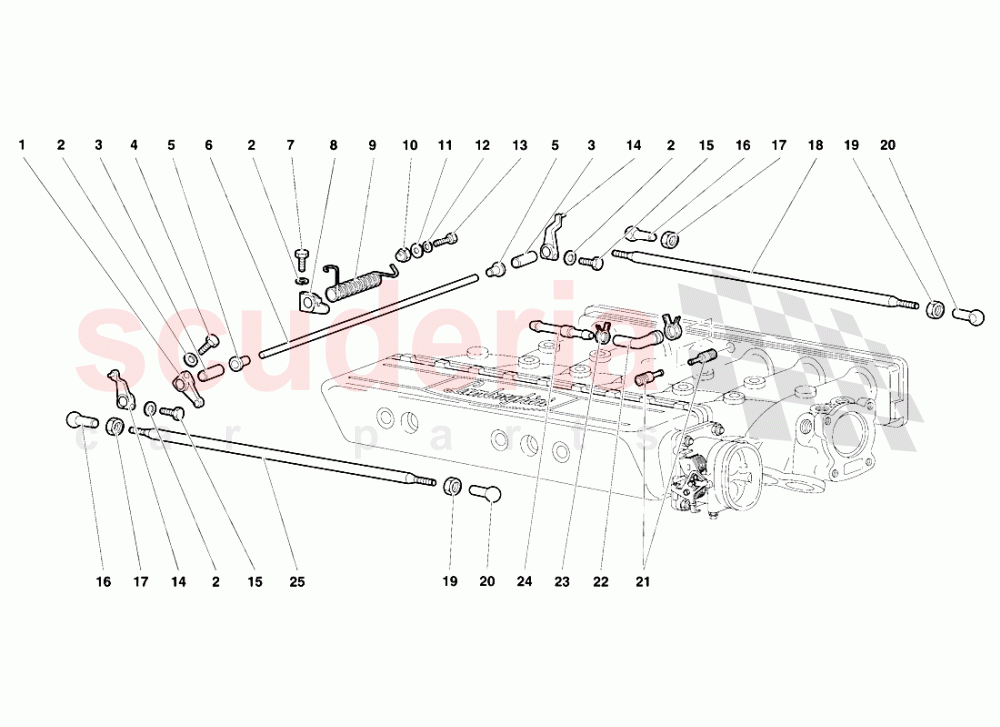

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1301093	LEVER	1301093 LEVER LEVA	-	1	Enquire
002	WHT003053	WASHER	WHT003053 WASHER RONDELLA	-	4	Enquire
003	1323136	SPACER	1323136 SPACER DISTANZIALE	-	2	Enquire
004	8100621	SCREW	8100621 SCREW VITE	-	1	Enquire
005	8801204	BUSHING	8801204 BUSHING BOCCOLA	-	2	Enquire
006	1323135	SMALL SHAFT	1323135 SMALL SHAFT ALBERINO	-	1	Enquire
007	8100607	SCREW	8100607 SCREW VITE	-	1	Enquire
008	1331005	LEVER	1331005 LEVER LEVA	-	1	Enquire
009	1310961	SPRING	1310961 SPRING MOLLA	-	1	Enquire
010	8200605	NUT	8200605 NUT DADO	-	1	Enquire
011	8400606	WASHER	8400606 WASHER RONDELLA	-	1	Enquire
012	8410602	WASHER	8410602 WASHER RONDELLA	-	1	Enquire
013	8100625	BOLT	8100625 BOLT	-	1	Enquire
014	1311580	LEVER	1311580 LEVER LEVA	-	2	Enquire
015	8100618	SCREW	8100618 SCREW VITE	-	2	Enquire
016	1300804	COUPLING HEAD	1300804 COUPLING HEAD TESTA GIUNTO SFERICO	-	2	Enquire
017	8200501	NUT	8200501 NUT DADO	-	2	Enquire
018	1328014	LEFT TIE ROD	1328014 LEFT TIE ROD TIRANTE SINISTRO	-	1	Enquire
019	N10690001	NUT (LEFT HAND THREAD)	N10690001 NUT (LEFT HAND THREAD) DADO	-	2	Enquire
020	1308539	COUPLING HEAD	1308539 COUPLING HEAD TESTA GIUNTO SFERICO	-	2	Enquire
021	1328721	CONNECTION	1328721 CONNECTION RACCORDO	-	2	Enquire
022	7L131756	CONNECTOR	7L131756 CONNECTOR RACCORDO	-	1	Enquire
023	8830122	CLAMP	8830122 CLAMP FASCETTA	-	2	Enquire
024	1329319	ADAPTER	1329319 ADAPTER RACCORDO	-	1	Enquire
025	1328016	RIGHT TIE ROD	1328016 RIGHT TIE ROD TIRANTE DESTRO	-	1	Enquire
