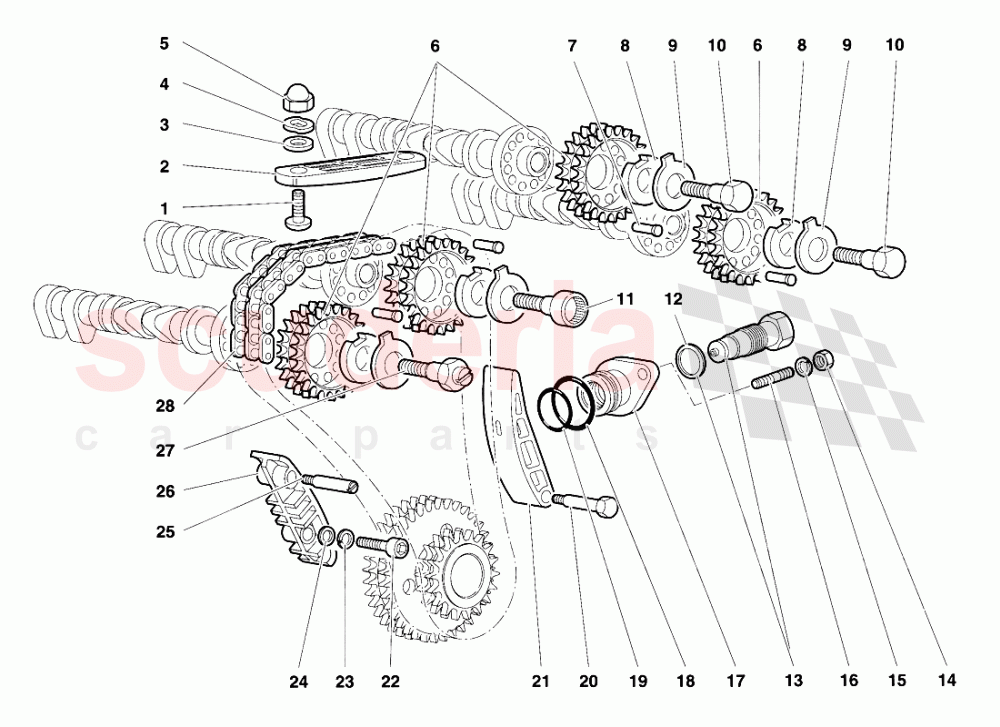

Lamborghini Diablo VT (1993-1998) - Timing System 1

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1132953	SCREW	1132953 SCREW VITE	-	4	Enquire
002	7M109513	SHOE	7M109513 SHOE GUIDA	-	2	Enquire
003	WHT003041	WASHER	WHT003041 WASHER RONDELLA	-	4	Enquire
004	8410602	WASHER	8410602 WASHER RONDELLA	-	4	Enquire
005	8200605	NUT	8200605 NUT DADO	-	4	Enquire
006	1232198	GEAR	1232198 GEAR INGRANAGGIO	-	4	Enquire
007	1201964	DOWEL	1201964 DOWEL GRANO	-	4	Enquire
008	1219761	WASHER	1219761 WASHER RONDELLA	-	4	Enquire
009	1219762	LOCKPLATE	1219762 LOCKPLATE PIASTRINA SICUREZZA	-	4	Enquire
010	1220990	SCREW	1220990 SCREW VITE	-	2	Enquire
011	1233314	SCREW	1233314 SCREW VITE	-	1	Enquire
012	WHT003048	WASHER	WHT003048 WASHER RONDELLA	-	2	Enquire
013	7M109255	Chain Tightener	7M109255 Chain Tightener TENDICATENA	-	2	Enquire
014	N01100637	NUT M6	N01100637 NUT M6 DADO	-	4	Enquire
015	WHT003213	WASHER	WHT003213 WASHER RONDELLA	-	4	Enquire
016	8300610	STUD BOLT	8300610 STUD BOLT PRIGIONIERO	-	4	Enquire
017	1132218	FLANGE	1132218 FLANGE FLANGIA	-	2	Enquire
018	8603702	SEAL	8603702 SEAL ANELLO TENUTA	-	2	Enquire
019	8602602	SEAL	8602602 SEAL	-	2	Enquire
020	1232851	PIN	1232851 PIN PERNO	-	2	Enquire
021	7M109508	Shoe	7M109508 Shoe GUIDA	-	2	Enquire
022	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
023	8410820	WASHER	8410820 WASHER RONDELLA	-	2	Enquire
024	N0122094	WASHER	N0122094 WASHER RONDELLA	-	2	Enquire
025	1232837	PIN	1232837 PIN PERNO	-	2	Enquire
026	7M109469	SHOE	7M109469 SHOE GUIDA	-	2	Enquire
027	1233315	SCREW	1233315 SCREW VITE	-	1	Enquire
028	7M109231C	UPPER TIMING CHAIN	7M109231C UPPER TIMING CHAIN CATENA SUPERIORE DISTRIBUZIONE	-	2	Enquire
