Timing System 2 of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

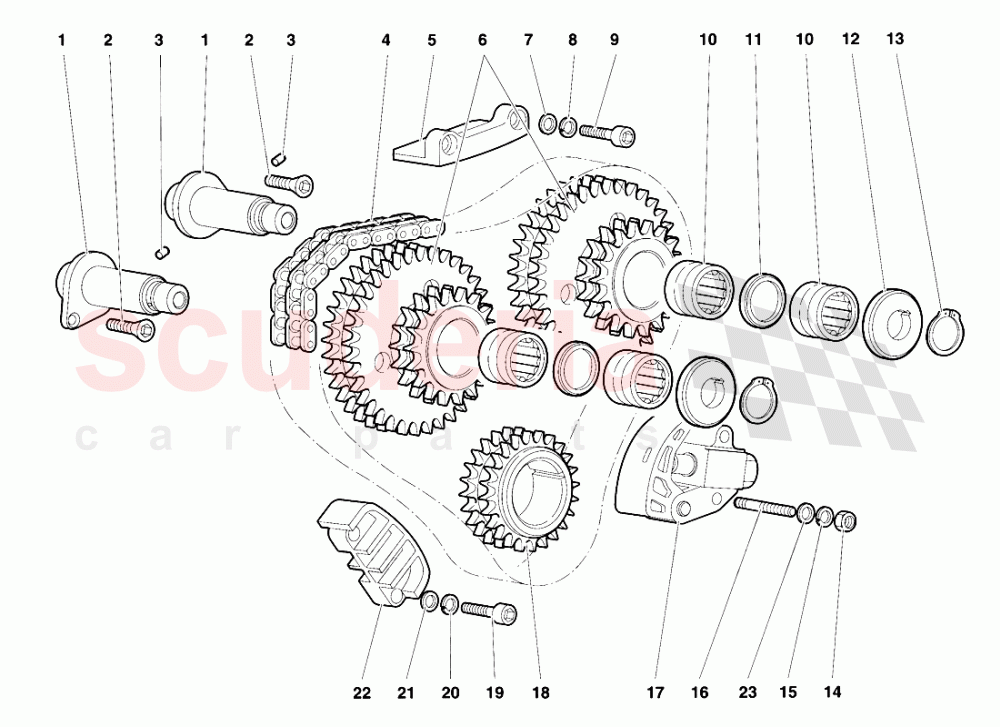

Lamborghini Diablo VT (1993-1998) - Timing System 2

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	1232199	PIN	1232199 PIN PERNO	-	2	Enquire
002	WHT003068	COUNTERSUNK BOLT IN STOCK	WHT003068 COUNTERSUNK BOLT VITE IN STOCK	$1.43 MSRP: ~~7.17~~ (80.1% off)	2
003	8900203	PIN - SPINA	8900203 PIN - SPINA SA	$0.09	2
004	7M109229	LOWER TIMING CHAIN	7M109229 LOWER TIMING CHAIN CATENA INFERIORE DISTRIBUZIONE	$140.48	1
005	7M109201	Guide IN STOCK	7M109201 Guide GUIDA IN STOCK	$72.33	1
006	7M109569	GEAR	7M109569 GEAR INGRANAGGIO	$1,713.73	2
007	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
008	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
009	8700850	SCREW	8700850 SCREW VITE	-	2	Enquire
010	8522508	BEARING	8522508 BEARING CUSCINETTO	-	4	Enquire
011	7M109135	SPACER	7M109135 SPACER DISTANZIALE	$216.41	2
012	1231173	WASHER	1231173 WASHER RONDELLA Dl RITEGNO	$33.77	2
013	WHT002646	RETAINING RING IN STOCK	WHT002646 RETAINING RING ANELLO RITEGNO IN STOCK	$1.08 MSRP: ~~7.22~~ (85% off)	2
014	N01100637	NUT M6 IN STOCK	N01100637 NUT M6 DADO IN STOCK	$0.33 MSRP: ~~7.29~~ (95.5% off)	2
015	WHT003213	WASHER	WHT003213 WASHER RONDELLA	$1.34 MSRP: ~~7.15~~ (81.3% off)	2
016	8300660	STUD BOLT	8300660 STUD BOLT PRIGIONIERO	$14.92	2
017	7M109077A	CHAIN TIGHTENER WITH RING	7M109077A CHAIN TIGHTENER WITH RING TENDICATENA	$815.85	1
018	1232196	GEAR	1232196 GEAR INGRANAGGIO COMANDO DISTR.	$145.17	1
019	8700848	SCREW	8700848 SCREW VITE	-	2	Enquire
020	8410820	WASHER	8410820 WASHER RONDELLA	$0.19 MSRP: ~~7.37~~ (97.4% off)	2
021	N0122094	WASHER IN STOCK	N0122094 WASHER RONDELLA IN STOCK	$1.47 MSRP: ~~7.15~~ (79.4% off)	2
