Right Cylinder Head of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

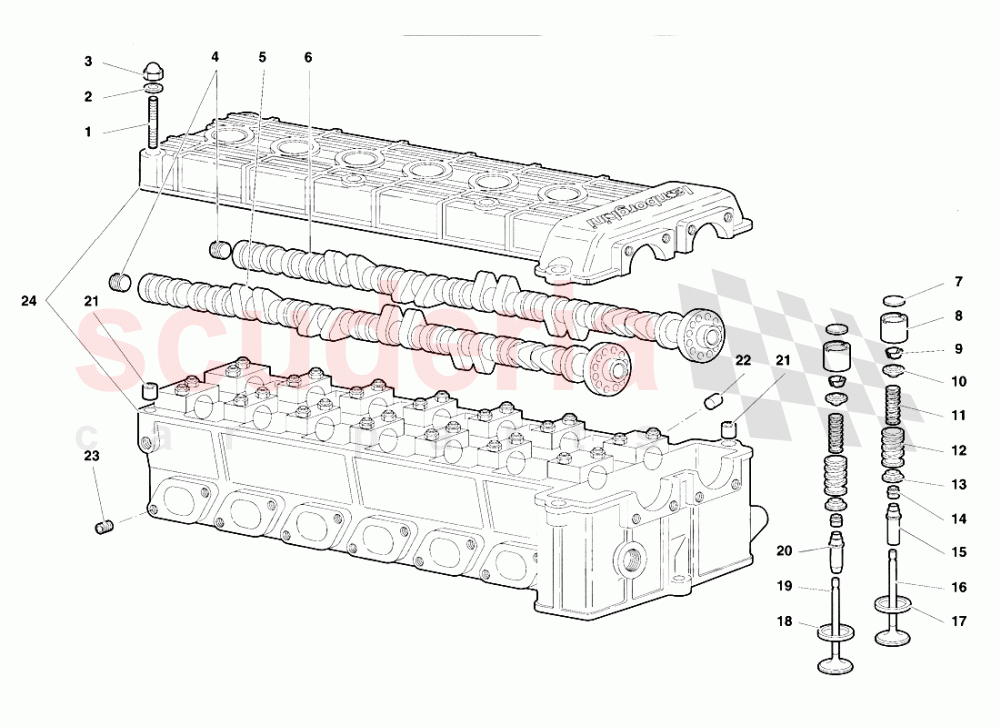

Lamborghini Diablo VT (1993-1998) - Right Cylinder Head

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	8300650	STUD BOLT	8300650 STUD BOLT PRIGIONIERO	$12.05 MSRP: ~~12.55~~ (4% off)	1
002	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	1
003	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	1
004	8931409	PLUG	8931409 PLUG TAPPO	$12.36 MSRP: ~~12.85~~ (3.8% off)	2
005	1232709	CAMSHAFT IN STOCK	1232709 CAMSHAFT ASSE A CAMME SCARICO TESTA DX IN STOCK	$16,203.43	1
006	1232708	CAMSHAFT	1232708 CAMSHAFT ASSE A CAMME ASP. TESTA DX	$1,643.91	1
007	1220878	SHIM	1220878 SHIM SPESSORE Dl REGISTRO 3.30 MM	-	24	Enquire
007	1220879	SHIM	1220879 SHIM SPESSORE Dl REGISTRO 3.35 MM	-	24	Enquire
007	1220880	SHIM	1220880 SHIM SPESSORE Dl REGISTRO 3.40 MM	-	24	Enquire
007	1220895	SHIM	1220895 SHIM SPESSORE Dl REGISTRO 4.15 MM	-	24	Enquire
007	1220893	SHIM	1220893 SHIM SPESSORE Dl REGISTRO 4.05 MM	-	24	Enquire
007	7M109320N	3.90 MM ADJUSTMENT SHIM	7M109320N 3.90 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.90 MM	$55.72	24
007	7M109320M	3.85 MM ADJUSTMENT SHIM	7M109320M 3.85 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.85 MM	$11.22	24
007	1220891	SHIM	1220891 SHIM SPESSORE Dl REGISTRO 3.95 MM	-	24	Enquire
007	1220883	SHIM	1220883 SHIM SPESSORE Dl REGISTRO 3.55 MM	-	24	Enquire
007	7M109320S	4.10 MM ADJUSTMENT SHIM	7M109320S 4.10 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 4.10 MM	$55.72	24
007	1220892	Valve shims	1220892 Valve shims 4.00 MM	-	24	Enquire
007	1220899	SHIM	1220899 SHIM SPESSORE Dl REGISTRO 4.35 MM	-	24	Enquire
007	1220904	SHIM	1220904 SHIM SPESSORE Dl REGISTRO 4.60 MM	-	24	Enquire
007	1220902	SHIM	1220902 SHIM SPESSORE Dl REGISTRO 4.50 MM	-	24	Enquire
007	1220903	SHIM	1220903 SHIM SPESSORE Dl REGISTRO 4.55 MM	-	24	Enquire
007	1220882	SHIM	1220882 SHIM SPESSORE Dl REGISTRO 3.50 MM	-	24	Enquire
007	1220900	SHIM	1220900 SHIM SPESSORE Dl REGISTRO 4.40 MM	-	24	Enquire
007	1220877	SHIM	1220877 SHIM SPESSORE Dl REGISTRO 3.25 MM	-	24	Enquire
007	1220898	SHIM	1220898 SHIM SPESSORE Dl REGISTRO 4.30 MM	-	24	Enquire
007	1220884	SHIM	1220884 SHIM SPESSORE Dl REGISTRO 3.60 MM	-	24	Enquire
007	1220901	SHIM	1220901 SHIM SPESSORE Dl REGISTRO 4.45 MM	-	24	Enquire
007	1220885	SHIM	1220885 SHIM SPESSORE Dl REGISTRO 3.65 MM	-	24	Enquire
007	1220886	SHIM	1220886 SHIM SPESSORE Dl REGISTRO 3.70 MM	-	24	Enquire
007	1220906	SHIM	1220906 SHIM SPESSORE Dl REGISTRO 4.70 MM	-	24	Enquire
007	1220897	SHIM	1220897 SHIM SPESSORE Dl REGISTRO 4.25 MM	-	24	Enquire
007	1220905	SHIM	1220905 SHIM SPESSORE Dl REGISTRO 4.65 MM	-	24	Enquire
007	7M109320L	3.80 MM ADJUSTMENT SHIM	7M109320L 3.80 MM ADJUSTMENT SHIM SPESSORE Dl REGISTRO 3.80 MM	$55.72	24
007	1220896	SHIM	1220896 SHIM SPESSORE Dl REGISTRO 4.20 MM	-	24	Enquire
007	1220881	SHIM	1220881 SHIM SPESSORE Dl REGISTRO 3.45 MM	-	24	Enquire
007	1220887	SHIM	1220887 SHIM SPESSORE Dl REGISTRO 3.75 MM	-	24	Enquire
008	7M109309	VALVE CONTROL TAPPET	7M109309 VALVE CONTROL TAPPET PUNTERIA	$36.70	4
009	1220843	TAPPET LOCK CONE	1220843 TAPPET LOCK CONE SEMICONO PUNTERIE	$7.62	24
010	7M109641	TAPPET UPPER PLATE	7M109641 TAPPET UPPER PLATE	$19.09	24
011	7M109633A	INNER SPRING	7M109633A INNER SPRING MOLLA INTERNA	$6.20	24
012	7M109623A	OUTER SPRING	7M109623A OUTER SPRING MOLLA ESTERNA	$19.15	24
013	1220993	TAPPET PLATE	1220993 TAPPET PLATE PIATTELLO PUNTERIA INFERIORE	-	24	Enquire
014	7M109675	SEAL RING	7M109675 SEAL RING	$15.73	48
015	1229717	VALVE GUIDE	1229717 VALVE GUIDE GUIDA VALVOLA ASPIRAZIONE	$143.92	12
016	1229714	INTAKE VALVE	1229714 INTAKE VALVE VALVOLA ASPIRAZIONE	$378.42	12
017	1229713	VALVE SEAT	1229713 VALVE SEAT SEDE VALVOLA ASPIRAZIONE	$79.04	12
018	1220823	VALVE SEAT	1220823 VALVE SEAT SEDE VALVOLA SCARICO	$16.80	12
019	1220819	EXHAUST VALVE	1220819 EXHAUST VALVE VALVOLA SCARICO	$1,364.76	12
020	1229718	VALVE GUIDE	1229718 VALVE GUIDE GUIDA VALVOLA SCARICO	$143.92	12
021	8800604	BUSHING	8800604 BUSHING BOCCOLA	-	2	Enquire
022	1122089	DOWEL	1122089 DOWEL GRANO PER COLLETTORE ASP.	$16.80 MSRP: ~~17.60~~ (4.5% off)	2
023	8840802	HELI-COIL	8840802 HELI-COIL	$3.24	24
024	463400150	HEAD	463400150 HEAD TESTA DESTRA LAVORATA	$22,704.64	1
