Oil Sump of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

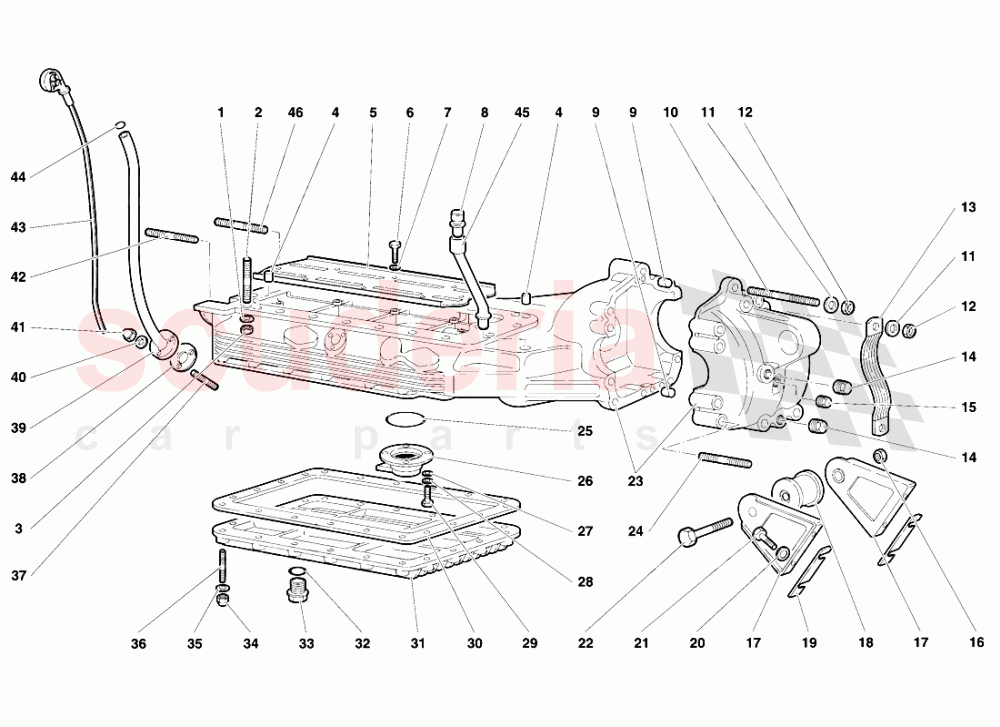

Lamborghini Diablo VT (1993-1998) - Oil Sump

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
001	WHT001514	WASHER IN STOCK	WHT001514 WASHER RONDELLA IN STOCK	$24.95 MSRP: ~~64.00~~ (61% off)	18
002	8300806	STUD	8300806 STUD PRIGIONIERO 70 MM	$5.59 MSRP: ~~5.70~~ (1.9% off)	6
002	WHT003031	STUD BOLT	WHT003031 STUD BOLT PRIGIONIERO28MM	$9.61	8
002	8300897	STUD	8300897 STUD PRIGIONIERO106MM	$14.92 MSRP: ~~15.50~~ (3.7% off)	4
003	N01100845	HEXAGON NUT IN STOCK	N01100845 HEXAGON NUT DADO IN STOCK	$1.89	18
004	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
005	1827775	PLATE	1827775 PLATE PARATIA ANTISBATTIMENTO	$85.50	1
006	8100604	SCREW	8100604 SCREW VITE	$2.56	8
007	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.24	8
008	B9507141	OIL BREATHER PIPE	B9507141 OIL BREATHER PIPE SFIATO OLIO DIFFERENZIALE	$69.10	1
009	8850806	DOWEL	8850806 DOWEL GRANO	-	2	Enquire
010	8301002	STUD	8301002 STUD PRIGIONIERO	$33.06	1
011	WHT000768	WASHER IN STOCK	WHT000768 WASHER IN STOCK	$1.96 MSRP: ~~7.28~~ (73.1% off)	10
012	N10155210	NUT	N10155210 NUT DADO	$1.96 MSRP: ~~7.24~~ (72.9% off)	10
013	1604328	GROUND CABLE	1604328 GROUND CABLE CAVOMASSA	-	2	Enquire
014	86301141A	MAGNETIC PLUG	86301141A MAGNETIC PLUG TAPPO MAGNETICO	$37.19	2
015	8931802	MAGNETIC PLUG	8931802 MAGNETIC PLUG TAPPO	$4.28	1
016	8201416	NUT	8201416 NUT DADO	$1.74	1
017	4126765	BRACKET	4126765 BRACKET STAFFA	$274.21 MSRP: ~~287.00~~ (4.5% off)	2
018	B9501144	support mount IN STOCK	B9501144 support mount IN STOCK	$243.94	1
019	4126766	SPACER	4126766 SPACER SPESSORE Dl REGISTRO	-	1	Enquire
020	8410801	WASHER	8410801 WASHER RONDELLA	$0.62	4
021	8100803	SCREW M8X1,25X25	8100803 SCREW M8X1,25X25 VITE	$0.51 MSRP: ~~7.31~~ (93% off)	4
022	8101430	SCREW	8101430 SCREW VITE	$3.54 MSRP: ~~3.65~~ (3% off)	1
023	453400100	OIL SUMP	453400100 OIL SUMP COPPAOLIO	-	1	Enquire
024	8301033	STUD	8301033 STUD PRIGIONIERO	$36.55	9
025	WHT002222	SEAL RING	WHT002222 SEAL RING	$13.10	1
026	1832017	FLANGE	1832017 FLANGE FLANGIA	$327.55	1
027	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	4
028	WHT003053	WASHER	WHT003053 WASHER RONDELLA	$3.24	4
029	8100604	SCREW	8100604 SCREW VITE	$2.56	4
030	1826521	GASKET	1826521 GASKET GUARNIZIONE	$124.68	1
031	1831852	LOWER COVER	1831852 LOWER COVER COPERCHIO INFERIORE	$554.37	1
032	8602002	SEAL IN STOCK	8602002 SEAL ANELLO TENUTA IN STOCK	$25.50	1
033	8932206	DRAIN PLUG	8932206 DRAIN PLUG TAPPO Dl SCARICO	-	1	Enquire
034	8200605	NUT IN STOCK	8200605 NUT DADO IN STOCK	$3.06	20
035	8410602	WASHER IN STOCK	8410602 WASHER RONDELLA IN STOCK	$44.87	20
036	8300615	STUD	8300615 STUD PRIGIONIERO	$20.24 MSRP: ~~21.05~~ (3.8% off)	20
037	8300601	STUD BOLT	8300601 STUD BOLT PRIGIONIERO	$8.56	3
038	1830006	GASKET	1830006 GASKET GUARNIZIONE	$8.41	1
039	1831138	PIPE	1831138 PIPE TUBO PORTA ASTA	$622.84	1
040	N01152427	WASHER IN STOCK	N01152427 WASHER RONDELLA IN STOCK	$0.28	3
041	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	3
042	8300808	STUD BOLT	8300808 STUD BOLT use : WHT003027	$6.02	2
043	1831041	OIL LEVEL ROD	1831041 OIL LEVEL ROD ASTA LIVELLO OLIO	$346.68	1
044	WHT003057	SEAL RING IN STOCK	WHT003057 SEAL RING ANELLO TENUTA IN STOCK	$2.23 MSRP: ~~7.29~~ (69.4% off)	1
045	2334402	PIPE	2334402 PIPE TUBO	$272.95	1
046	WHT003028	THREADED PIN	WHT003028 THREADED PIN PRIGIONIERO	$22.30	1
