Air Filters of Lamborghini Lamborghini Diablo VT (1993-1998)

View All

Lamborghini Diablo VT (1993-1998) - Air Filters

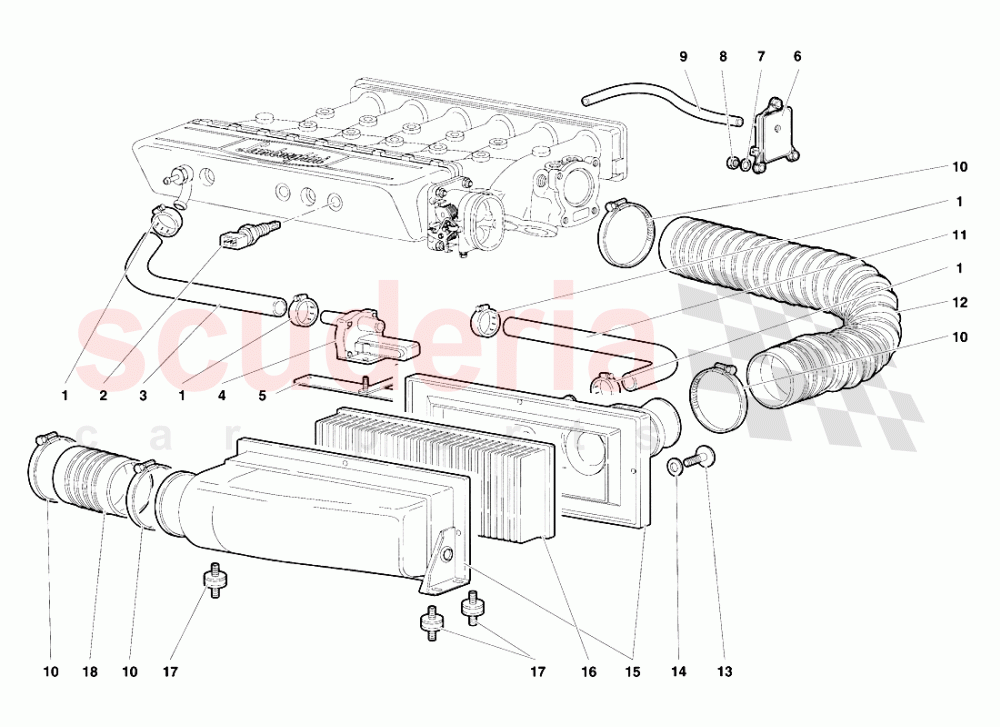

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

View All

Diagram Tap to enlarge

0 Parts ($0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
001	8832003	CLAMP IN STOCK	8832003 CLAMP FASCETTA IN STOCK	$44.10	8
002	7M919529	Air Temperature Sensor	7M919529 Air Temperature Sensor	$286.97	2
003	1330525	RIGHT PIPE IN STOCK	1330525 RIGHT PIPE TUBO DESTRO IN STOCK	$130.89	1
003	1330524	LEFT PIPE	1330524 LEFT PIPE TUBO SINISTRO	$209.88	1
004	2021139	VALVE	2021139 VALVE VALVOLA ARIA ADDIZIONALE	$4,552.30	2
005	2028003	RIGHT BRACKET	2028003 RIGHT BRACKET STAFFA DESTRA	$194.80	1
005	2028004	LEFT BRACKET	2028004 LEFT BRACKET STAFFA SINISTRA	$163.16	1
006	7M919529A	PRESSURE SENSOR IN STOCK	7M919529A PRESSURE SENSOR SENSORE PRESSIONE ASSOLUTA IN STOCK	$439.51	2
007	WHT002961	WASHER IN STOCK	WHT002961 WASHER RONDELLA IN STOCK	$0.42	6
008	N01118312	HEXAGON NUT, SELF-LOCKING IN STOCK	N01118312 HEXAGON NUT, SELF-LOCKING DADO IN STOCK	$2.04	6
009	1330454	PIPE	1330454 PIPE TUBO	$141.46 MSRP: ~~147.50~~ (4.1% off)	2
010	8838701	STRAP IN STOCK	8838701 STRAP FASCETTA IN STOCK	$7.10 MSRP: ~~7.30~~ (2.7% off)	8
011	1334383	PIPE	1334383 PIPE TUBO DESTRO	$93.96	1
011	1334382	PIPE	1334382 PIPE TUBO SINISTRO	$98.59	1
012	1331286	RIGHT FLEX. HOSE	1331286 RIGHT FLEX. HOSE TUBO FLESSIBILE DESTRO	$114.39	1
012	1333774	LEFT FLEX. HOSE IN STOCK	1333774 LEFT FLEX. HOSE TUBO FLESSIBILE SINISTRO IN STOCK	$270.70	1
013	8700676	SCREW	8700676 SCREW VITE	$47.84	8
014	N91115501	WASHER	N91115501 WASHER RONDELLA	$1.25 MSRP: ~~7.33~~ (82.9% off)	8
015	1334060	LEFT CASE	1334060 LEFT CASE SCATOLA FILTRO ARIA SINISTRO	$1,490.91	1
015	1334059	RIGHT CASE	1334059 RIGHT CASE SCATOLA FILTRO ARIA DESTRO	$1,305.64	1
016	7M133843	Air Filter IN STOCK	7M133843 Air Filter IN STOCK	$28.13	2
017	9411508	ELASTIC SUPPORT	9411508 ELASTIC SUPPORT SUPPORTO ELASTICO	$31.72	6
018	1330523	FLEX. HOSE	1330523 FLEX. HOSE TUBO FLESSIBILE	$235.97	2
